Toyota YARIS 安全带和儿童保护座椅 — Figure 7104

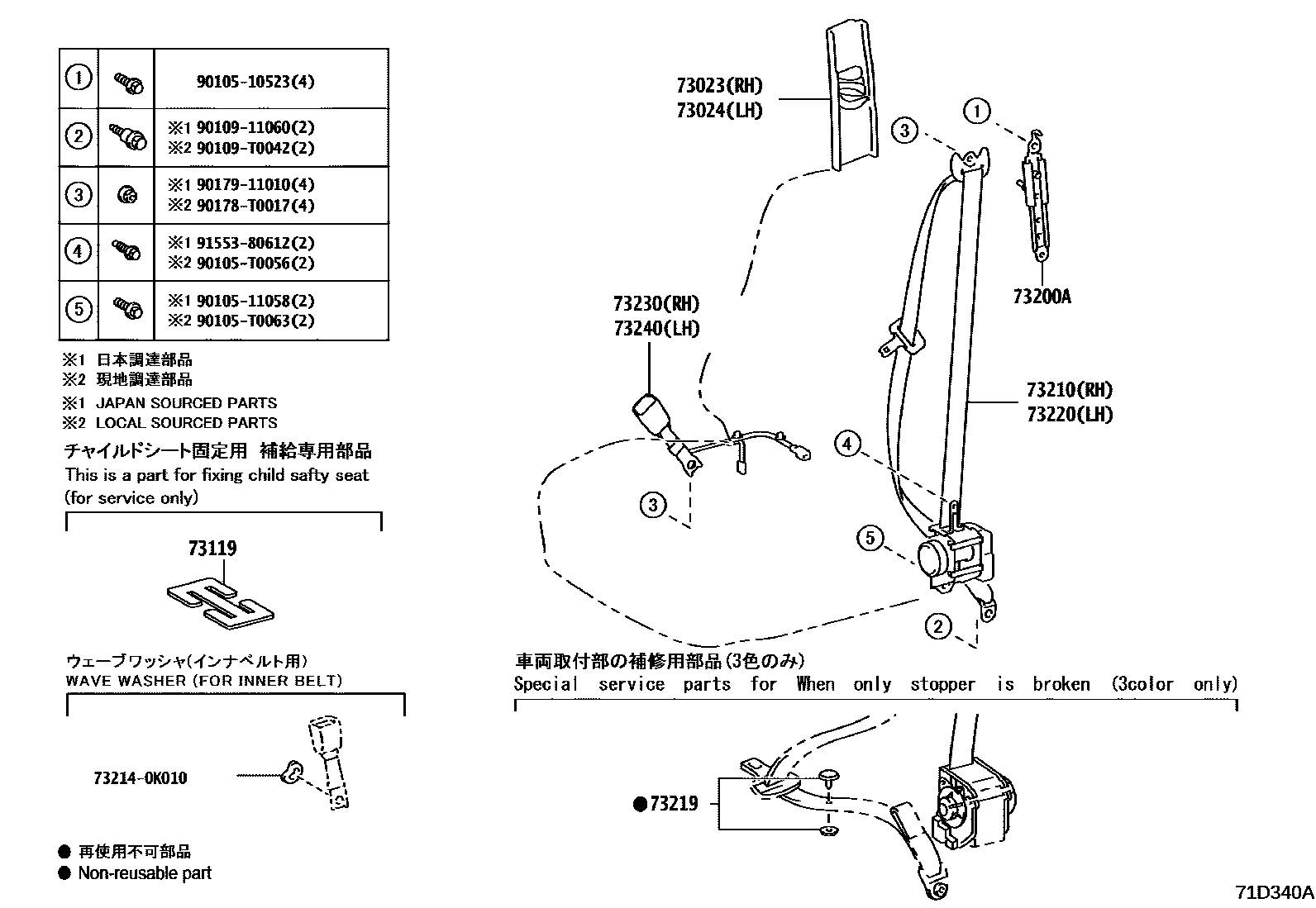

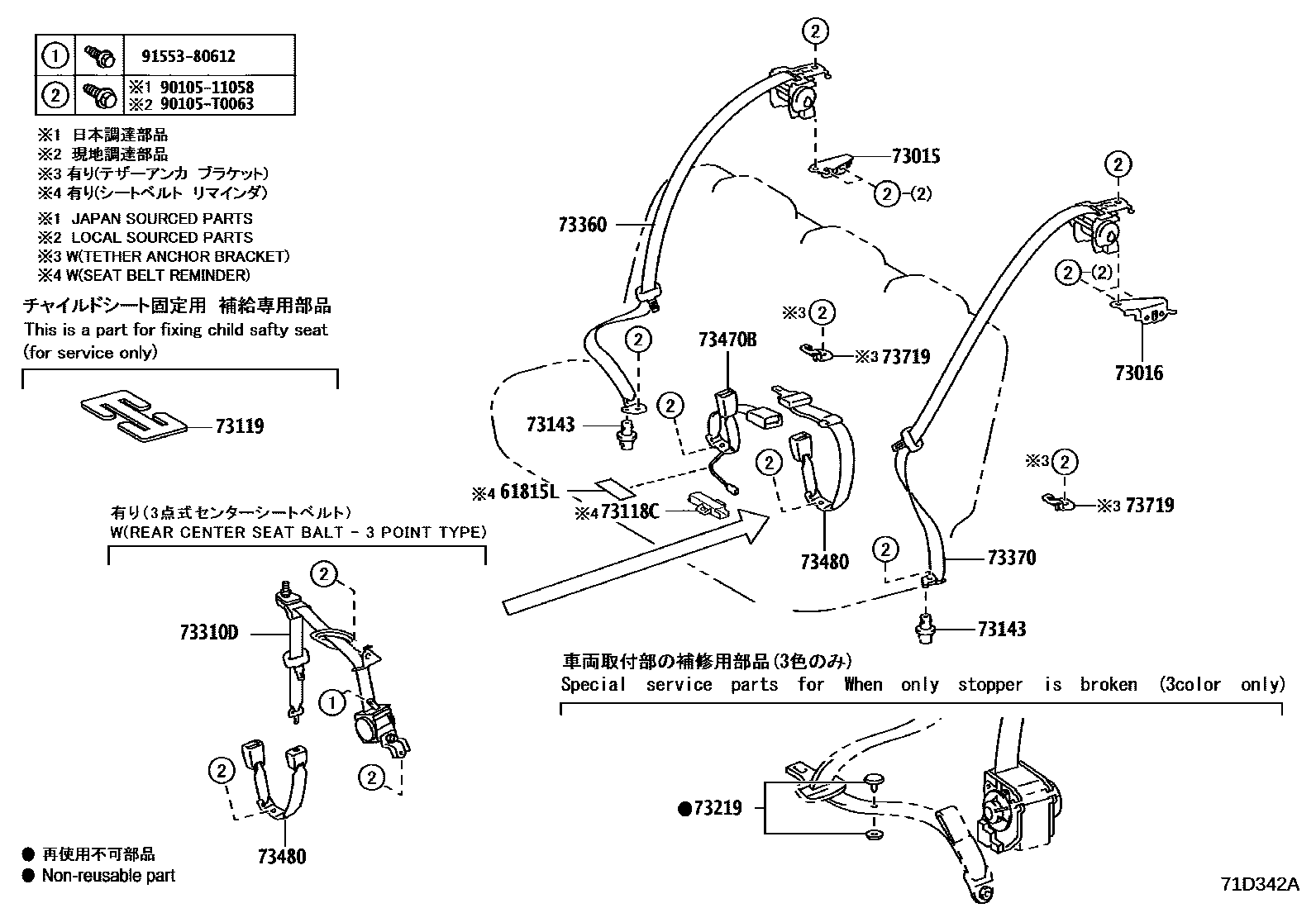

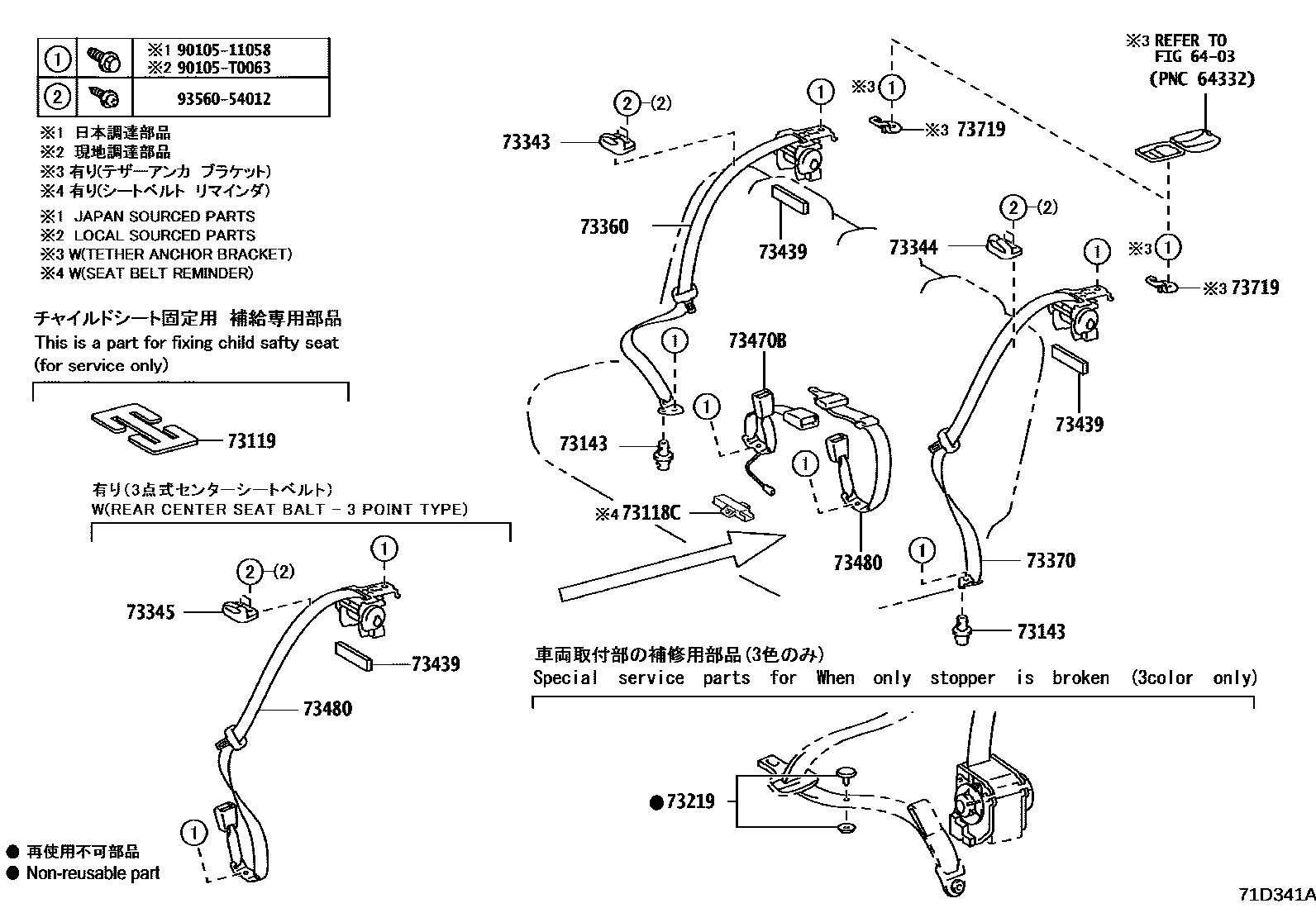

Toyota YARIS EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61815L | No. 1 wire harness protection device | 61815-64010 |
| 73015 | Right seat belt outer anchor bracket sub-assembly | 73015-0D020 |
| 73016 | Left side seat belt outer anchor bracket sub-assembly | 73016-0D020 |
| 73118C | seat belt support plate | 73118-52030 |
| 73119 | seat belt clip | 73119-22010 |
| 73143 | seat belt hole seal | 73143-52012 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-02130 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73439 | Rear seat belt retractor cushion | 73439-0D050 |
| 73719 | Child restraint seat tether anchor bracket | 73719-0D010 |
