Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

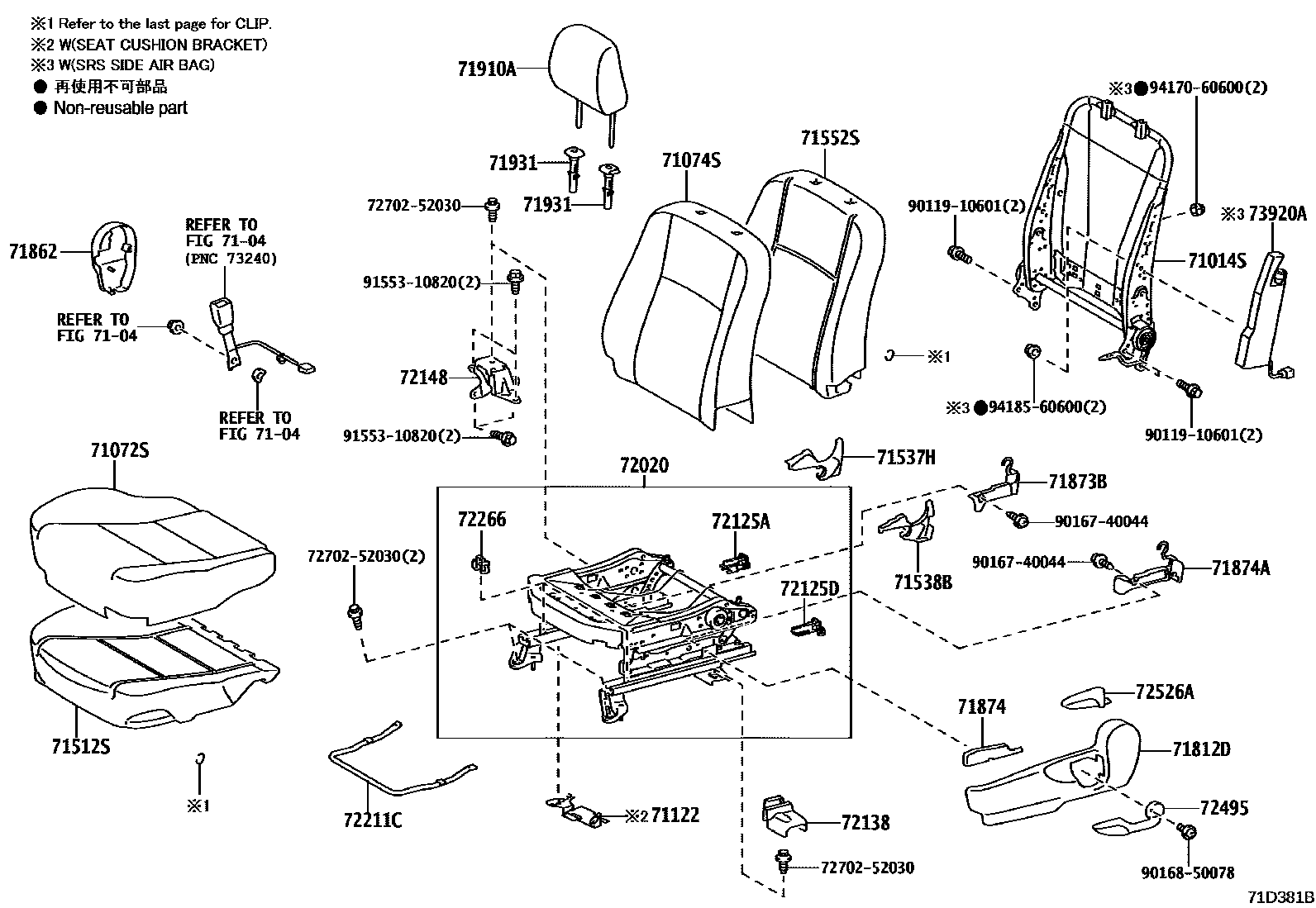

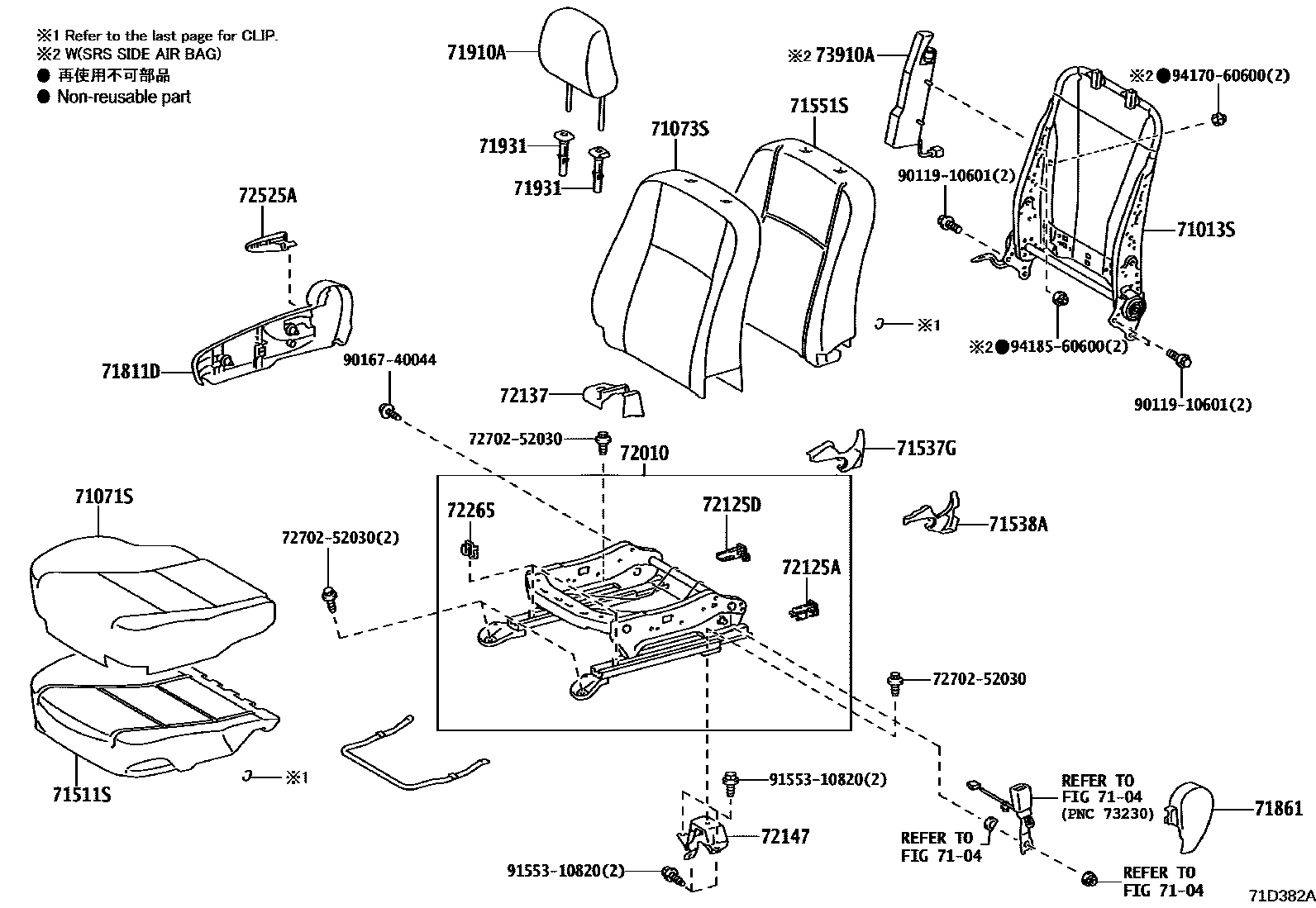

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-0D110 · 71013-0D300 |
| 71014S | Front left seat back frame sub-assembly | 71014-0D110 · 71014-0D300 |
| 71122 | Front left seat cushion bracket | 71122-0D050 · 71122-0D150 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0D340 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0D680 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0D360 · 71551-0D740 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0D280 · 71552-0D680 |
| 71873B | Front right seat No. 1 seat cushion lower guard panel | 71873-06460 |
| 71874 | Front left seat cushion lower guard | 71874-0D350 |
| 71874A | Front left seat cushion lower guard | 71874-06450 |
| 72010 | Front right seat adjuster assembly | 72010-0D750 |
| 72020 | Front left seat adjuster assembly | 72020-0D501 |
| 72125A | Rear seat upper slide rail cover | 72265-0D070 |
| 72125D | Slide rail cover on rear seat No. 2 | 72265-0D060 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-0D110 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-0D120 |
| 72211C | Seat slide adjustment handle | 72211-0D300 |
| 72265 | Right seat rail upper rail cover | 71848-0D150 |
| 72266 | Left seat rail upper rail cover | 71848-0D150 |
| 73910A | Front right seat airbag assembly | 73910-0D100 |
| 73920A | Front left seat airbag assembly | 73920-0D100 |
