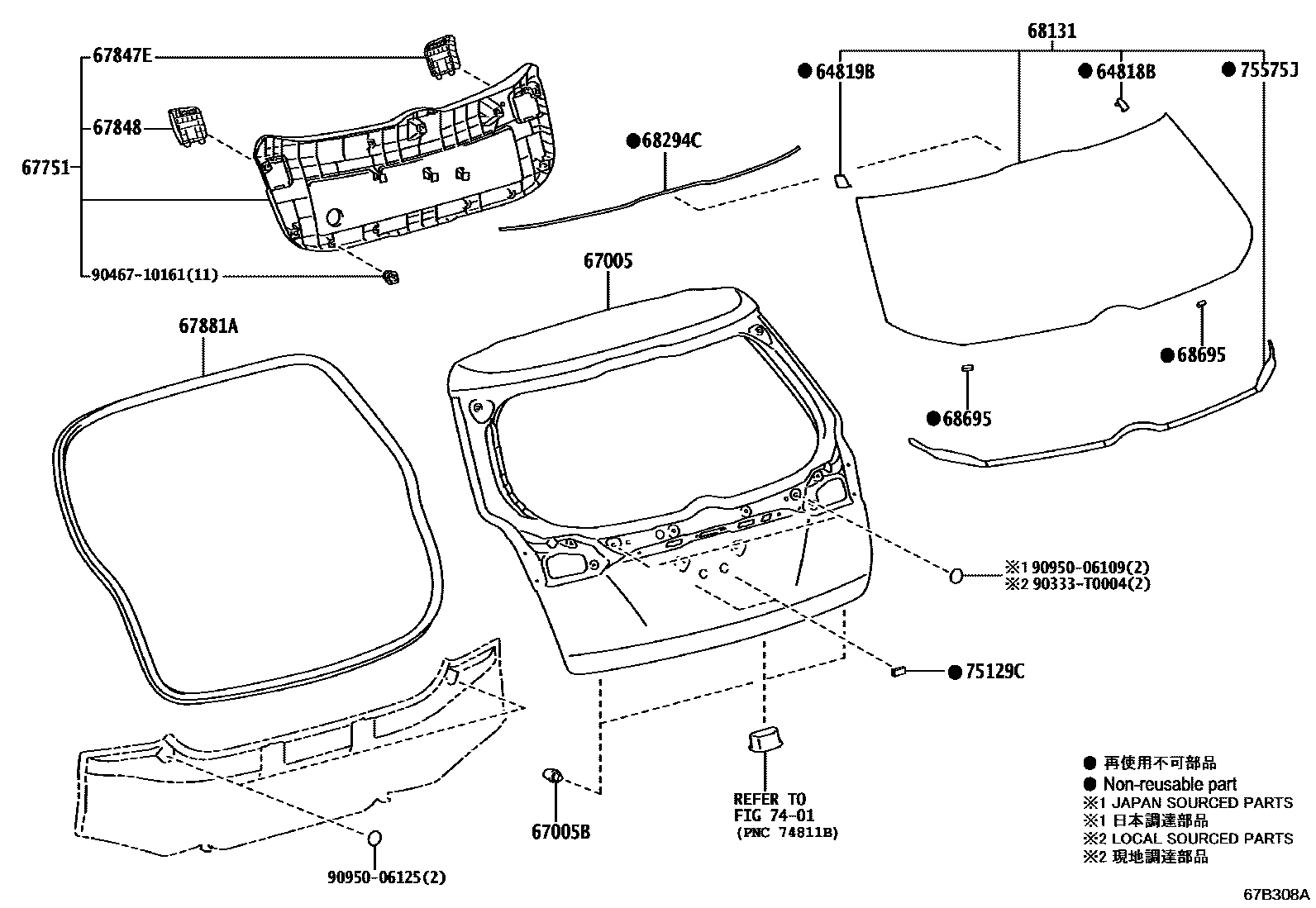

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64818B | No. 1 back door glass spacer | 64818-0D100 |
| 64819B | No. 2 back window glass spacer | 64819-0D090 |
| 67005 | Rear door panel sub-assembly | 67005-0D500 |
| 67005B | Cushion pad (for back door panel) | 90541-09133 |
| 67751 | Rear door decorative panel | 67750-0D250 |
| 67847E | Back door right access hole cover | 67847-0D020 |
| 67848 | Rear door left access hole cover | 67848-0D020 |
| 67881A | Back door seal | 67881-0D190 |
| 68131 | back door glass | 68105-0D350 |
| 68294C | Back door glass adhesive No. 1 sealing strip | 64813-0D400 |
| 68695 | Back door window frame gasket | 75955-0D090 |
| 75129C | rear license plate cushion | 75129-0D030 |
| 75575J | Lower right protective strip outside rear window | 75575-0D030 |
