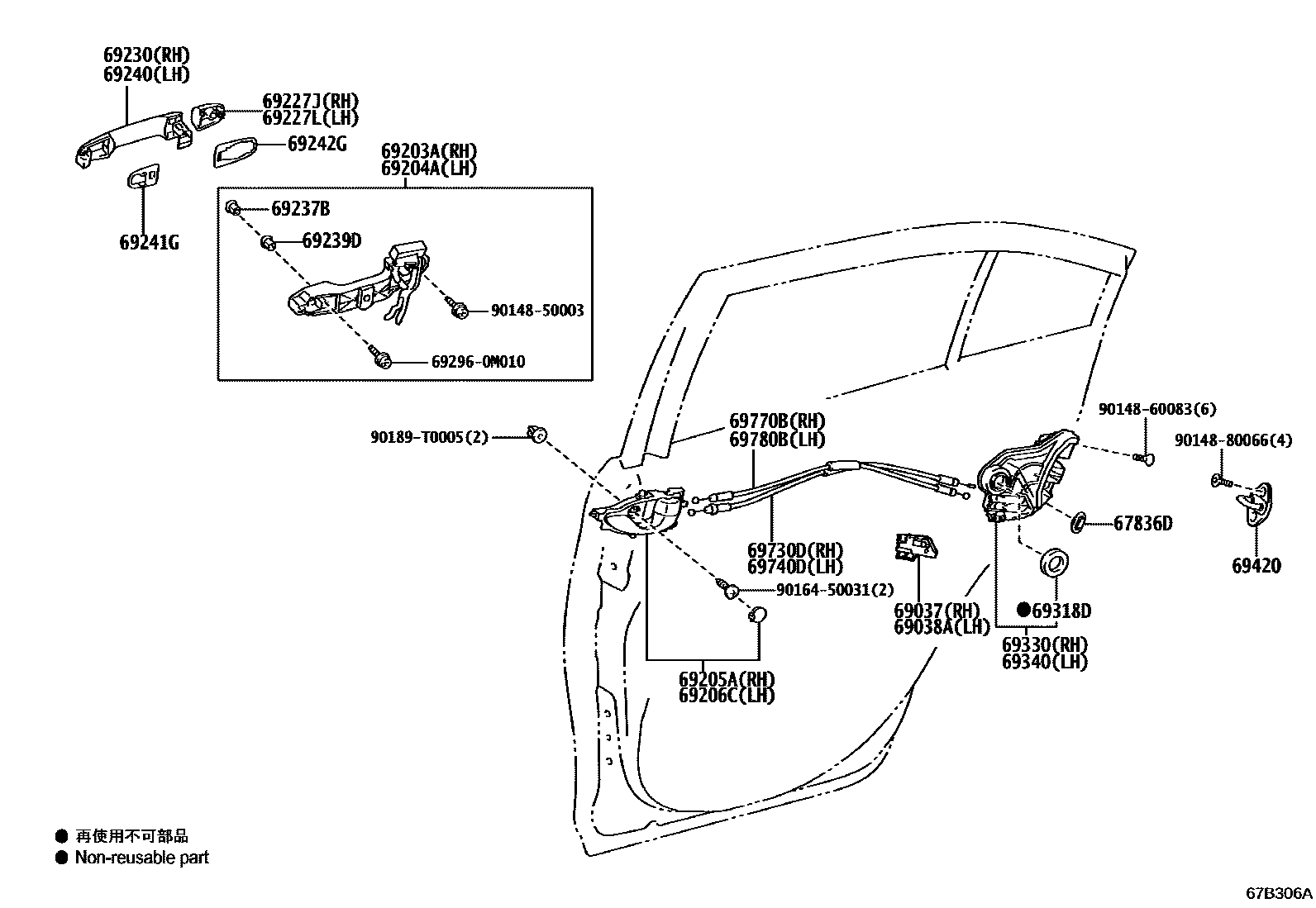

Toyota YARIS 后门锁和后门把手 — Figure 6706
Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836D | Rear door lock child restraint cover | 67836-06030 |
| 69037 | Right rear door door lock cover sub-assembly | 69037-02050 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-02050 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0D250 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0D250 |
| 69227J | Right rear door outer handle cover | 69227-0D908 |
| 69227L | Left rear door outer handle cover | 69227-0D908 |
| 69230 | Right rear door outer handle assembly | 69210-0D974 |
| 69237B | Rear door handle nut | 69237-0E010 |
| 69239D | Rear door handle bushing | 69239-0D060 |
| 69240 | Left rear door outer handle assembly | 69210-0D974 |
| 69241G | Rear door front exterior handle pad | 69241-0D160 |
| 69242G | Rear door rear outer handle pad | 69242-0D060 |
| 69318D | door lock harness seal | 69318-51010 |
| 69330 | Right rear door door lock assembly | 69050-02410 · 69050-02420 |
| 69340 | Left rear door lock assembly | 69060-02410 · 69060-02420 |
| 69420 | Rear door lock plate assembly | 69410-02040 |
| 69730D | Right rear door lock remote control cable assembly | 69730-0D280 |
| 69740D | Left rear door lock remote control cable assembly | 69730-0D280 |
| 69770B | Right rear door inner lock cable assembly | 69770-0D210 |
| 69780B | Left rear door inner lock cable assembly | 69770-0D210 |
