Toyota YARIS 后门板和后门玻璃 — Figure 6705

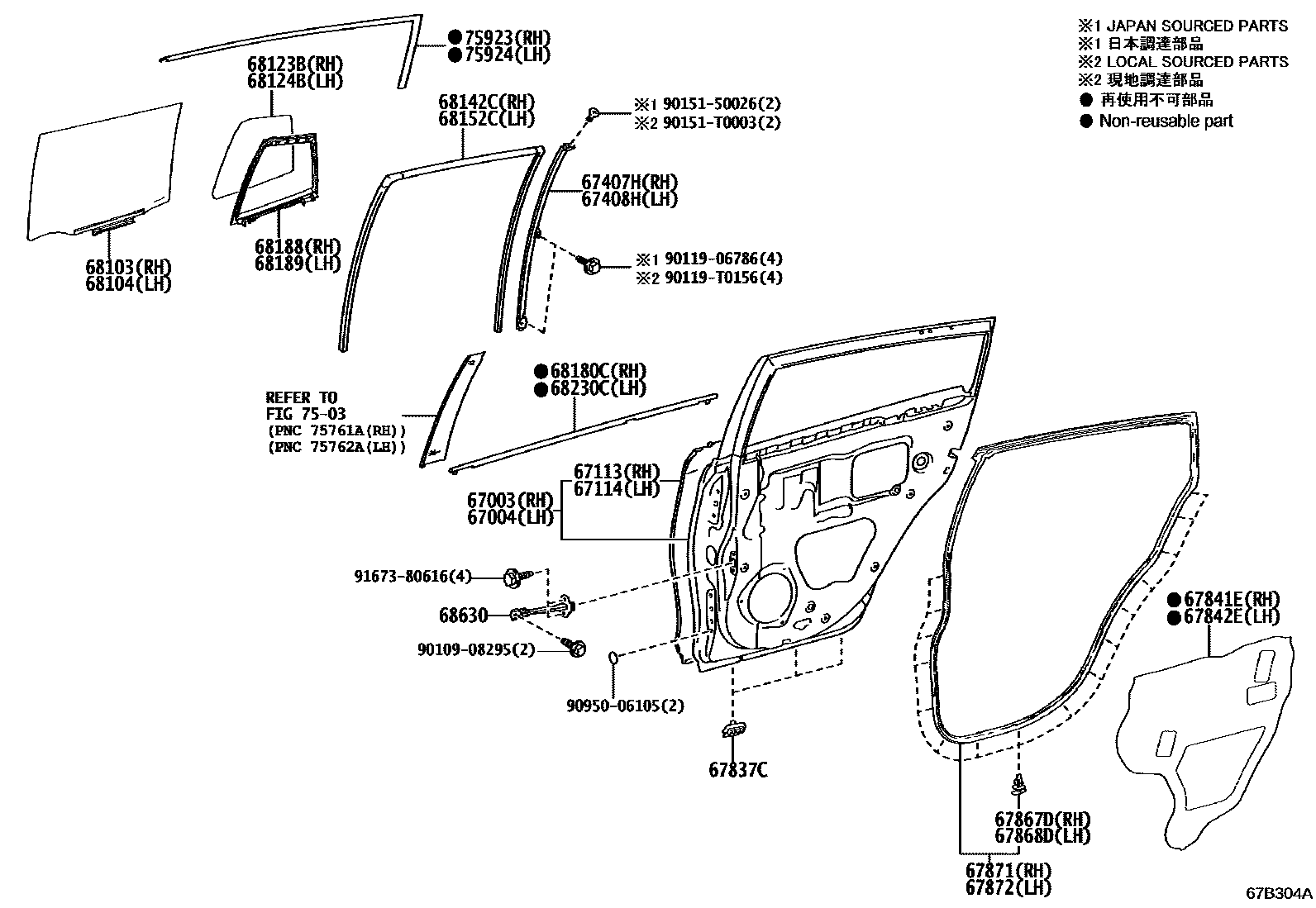

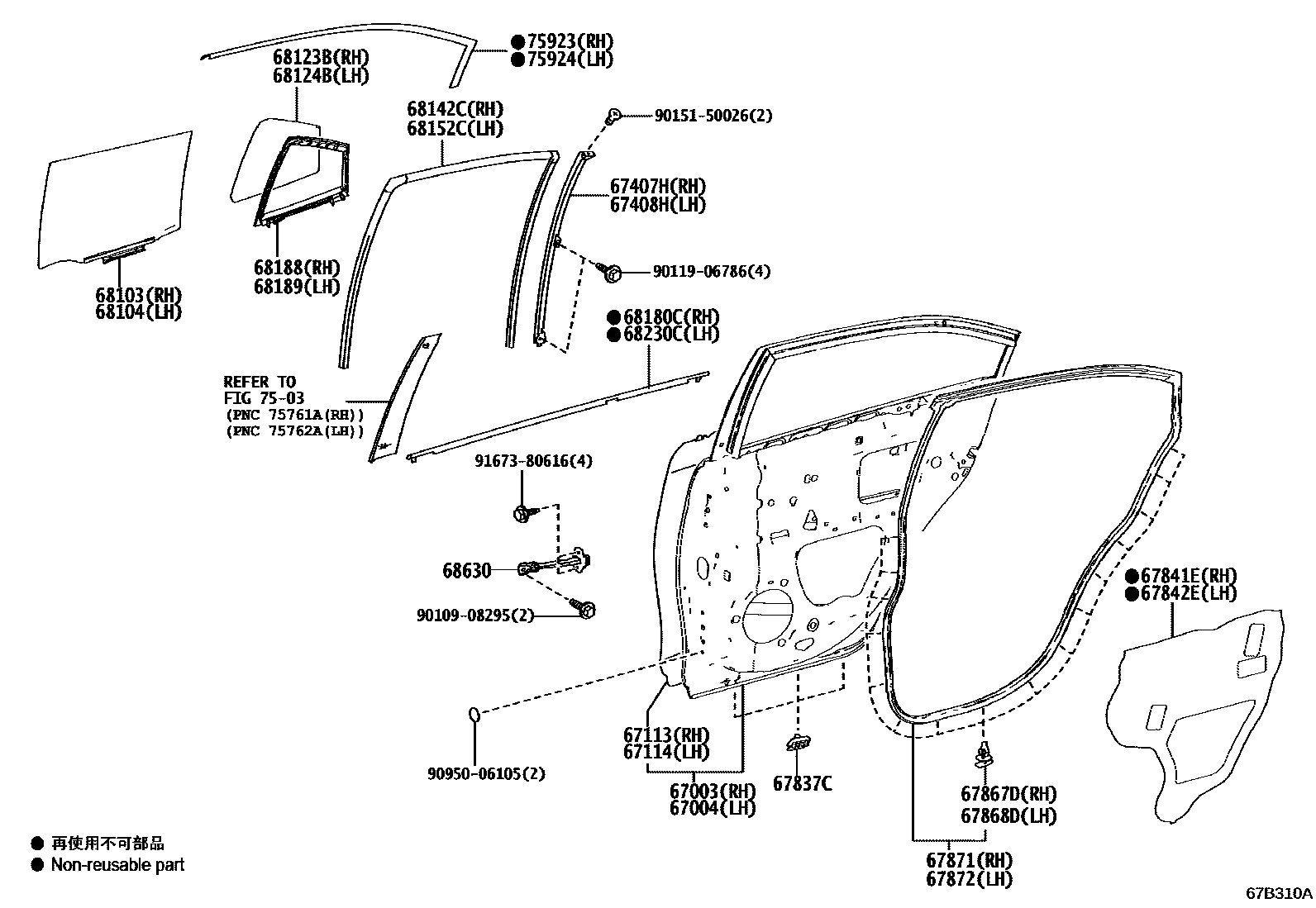

Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0D440 · 67003-0D490 |
| 67004 | Left rear door panel sub-assembly | 67004-0D440 · 67004-0D490 |
| 67113 | Right rear door outer panel | 67113-K0030 |
| 67114 | Left rear door outer panel | 67114-K0030 |
| 67407H | Right sliding door window divider sub-assembly | 67407-0D290 · 67407-0D340 |
| 67408H | Left rear sliding door window divider sub-assembly | 67408-0D290 · 67408-0D340 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67603E | Catch (for rear door trim panel) | 90467-10161 |
| 67673A | Right rear door frame decorative strip | 67673-0D070 |
| 67674A | Left rear door frame decorative strip | 67674-0D060 |
| 67837C | Rear door dust seal retainer | 67837-0K090 · 67837-48050 |
| 67841E | Right rear door access hole cover | 67841-0D461 · 67841-0D470 |
| 67842E | Left rear door access hole cover | 67842-0D461 · 67842-0D470 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-0D270 · 67871-0D320 |
| 67872 | Left rear door sealing strip | 67872-0D270 · 67872-0D320 |
| 68103 | Right rear door glass sub-assembly | 68130-0D490 · 68130-0D550 |
| 68104 | Left rear door glass sub-assembly | 68140-0D490 · 68140-0D550 |
| 68123B | Right rear door corner window glass | 68123-0D350 · 68123-0D410 |
| 68124B | Left rear door corner window glass | 68124-0D350 · 68124-0D410 |
| 68142C | Right rear door glass lift slot | 68142-0D310 · 68142-0D380 |
| 68152C | Left rear door glass lift slot | 68152-0D270 · 68152-0D340 |
| 68173B | Right rear door glass inner sealing strip | 68173-0D281 |
| 68174A | Left rear door glass inner sealing strip | 68174-0D281 |
| 68180C | Right rear door glass outer sealing strip assembly | 68180-0D451 |
| 68188 | Right rear door corner window seal | 68188-0D260 · 68188-0D320 |
| 68189 | Left rear door corner window seal | 68189-0D260 · 68189-0D320 |
| 68230C | Left rear door glass outer sealing strip assembly | 68230-0D451 |
| 68630 | Rear door opening limiter assembly | 68630-0D200 |
| 75923 | No. 2 right side light-shielding film | 75923-0D310 · 75923-0D360 |
| 75924 | No. 2 left shading film | 75924-0D310 · 75924-0D360 |
