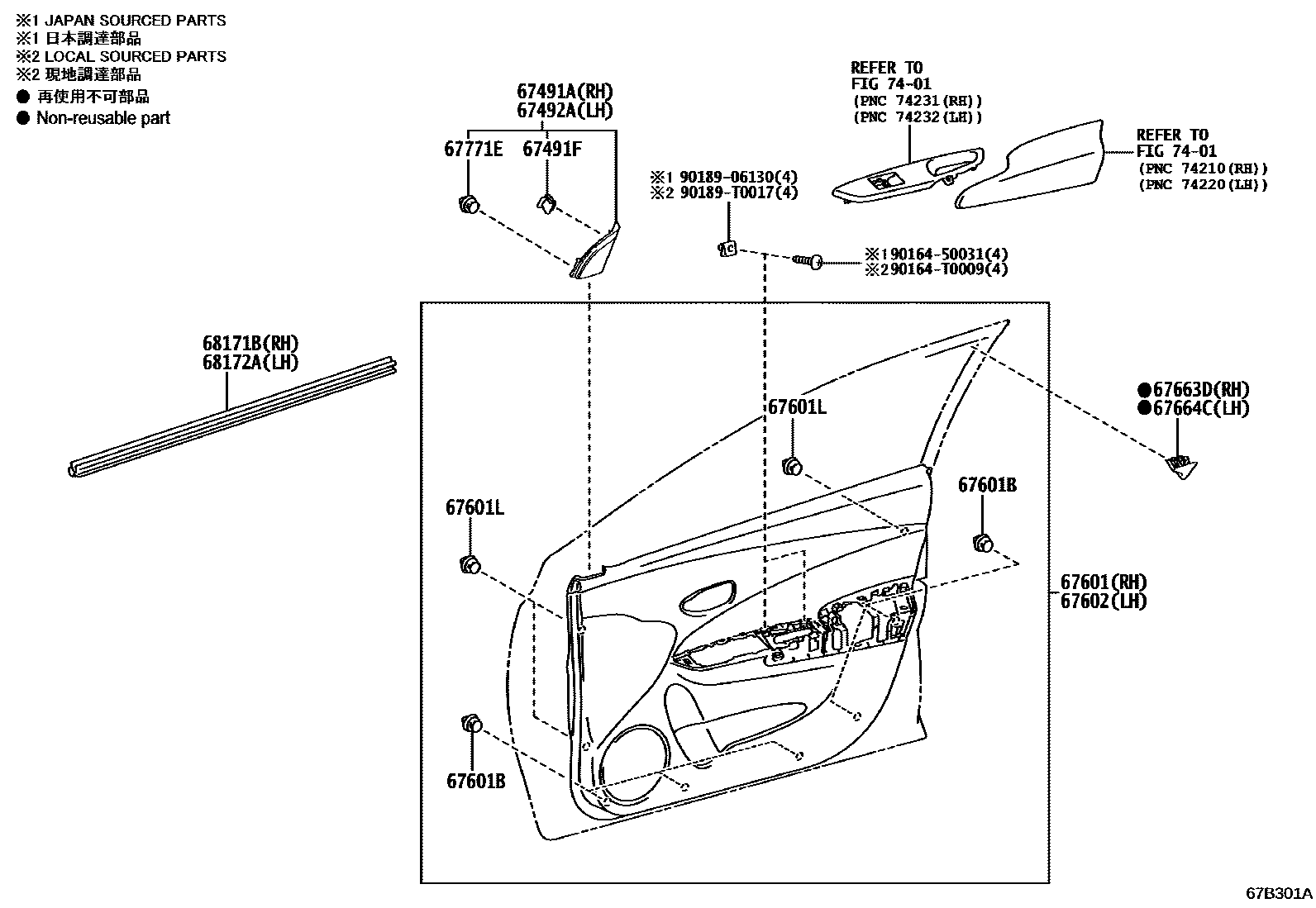

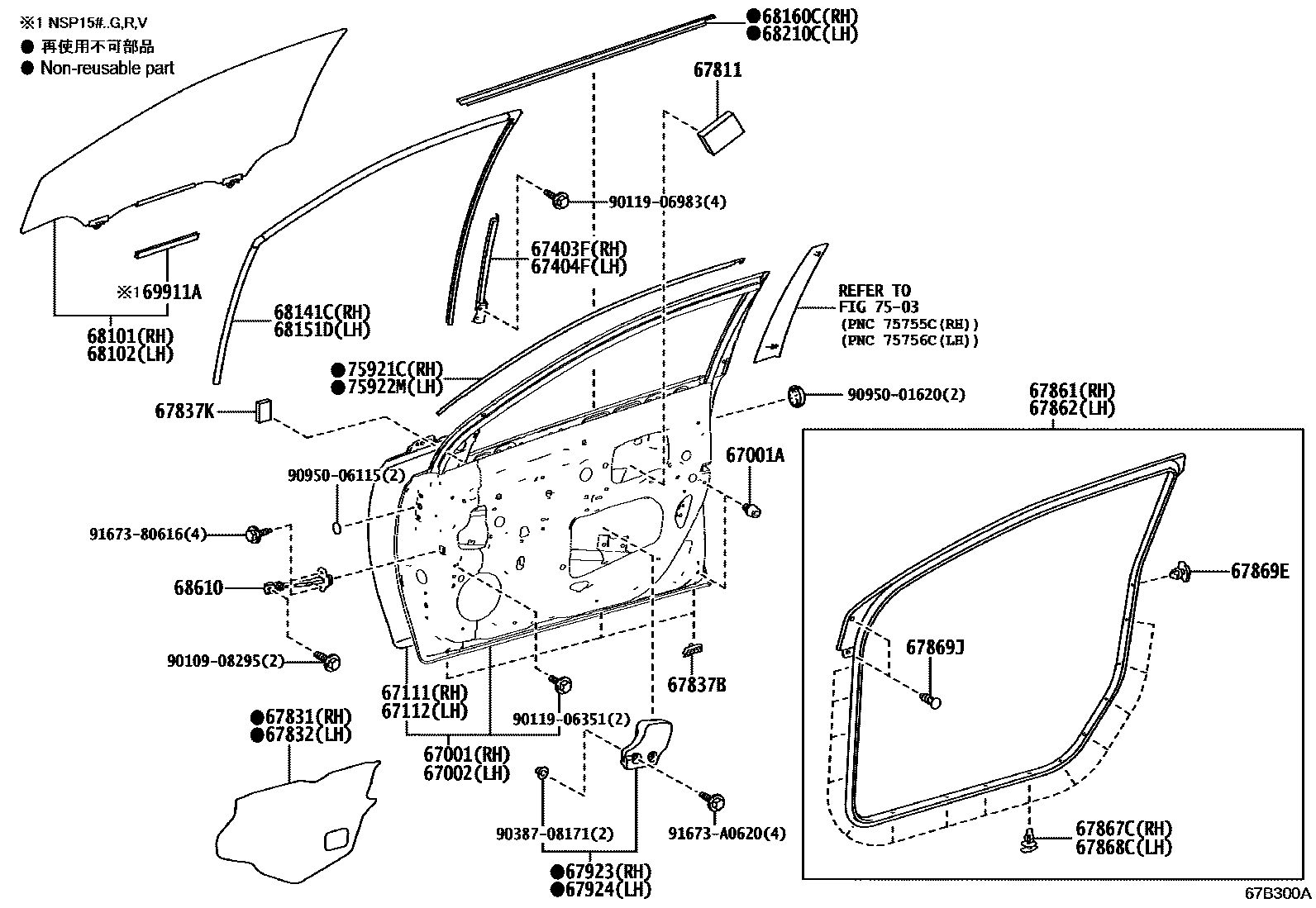

Toyota YARIS 前门板和前门玻璃 — Figure 6701
Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-0D470 |
| 67001A | Front door panel cushion | 90541-09124 |
| 67002 | Left front door panel sub-assembly | 67002-0D470 |
| 67111 | Outer right front door panel | 67111-K0030 |
| 67112 | Outer left front door panel | 67112-K0030 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-0D150 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-0D150 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-0D320 |
| 67491F | Catch (for door trim panel) | 90468-04181 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-0D320 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67601L | Catch (for front door trim panel) | 90467-10161 |
| 67663D | Right door frame decorative strip | 67663-0D030 |
| 67664C | Left door frame decorative strip | 67664-0D030 |
| 67771E | Fixing piece (for front door frame bracket) | 67771-12060 |
| 67811 | Front door silencer pad | 67811-0D010 |
| 67831 | Right front door access hole cover | 67831-0D460 |
| 67832 | Left front door access hole cover | 67832-0D330 |
| 67837B | Front door dust seal retainer | 67837-0K090 |
| 67837K | Front door ventilator seal | 67481-0D030 |
| 67861 | Right front door seal | 67861-0D170 |
| 67862 | Left front door seal | 67862-0D170 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869E | Front door seal strip clip | 90467-04034 |
| 67869J | Front door seal strip clip | 67869-20030 |
| 67923 | Front door No. 1 reinforcement cushion pad | 67923-0D190 |
| 67924 | Front door No. 2 reinforcement cushion pad | 67924-0D200 |
| 68101 | Right front door glass sub-assembly | 68110-0D250 · 68110-0D350 |
| 68102 | Left front door glass sub-assembly | 68120-0D250 · 68120-0D350 |
| 68141C | Right front door glass lift channel | 68141-0D220 |
| 68151D | Left front door glass lift channel | 68151-0D200 |
| 68160C | Right front door glass outer sealing strip assembly | 68160-0D220 |
| 68171B | Right front door glass inner sealing strip | 68171-0D361 · 68171-0D420 |
| 68172A | Left front door glass inner sealing strip | 68172-0D361 · 68172-0D420 |
| 68210C | Left front door glass outer sealing strip assembly | 68210-0D220 |
| 68610 | Front door opening limiter assembly | 68610-0D161 |
| 69911A | No. 1 front door glass slot | 69911-0D040 |
| 75921C | No. 1 right side light-shielding film | 75921-0D130 |
| 75922M | No. 1 left shading film | 75922-0D130 |
