Toyota YARIS 底板和底板装饰罩 — Figure 6404

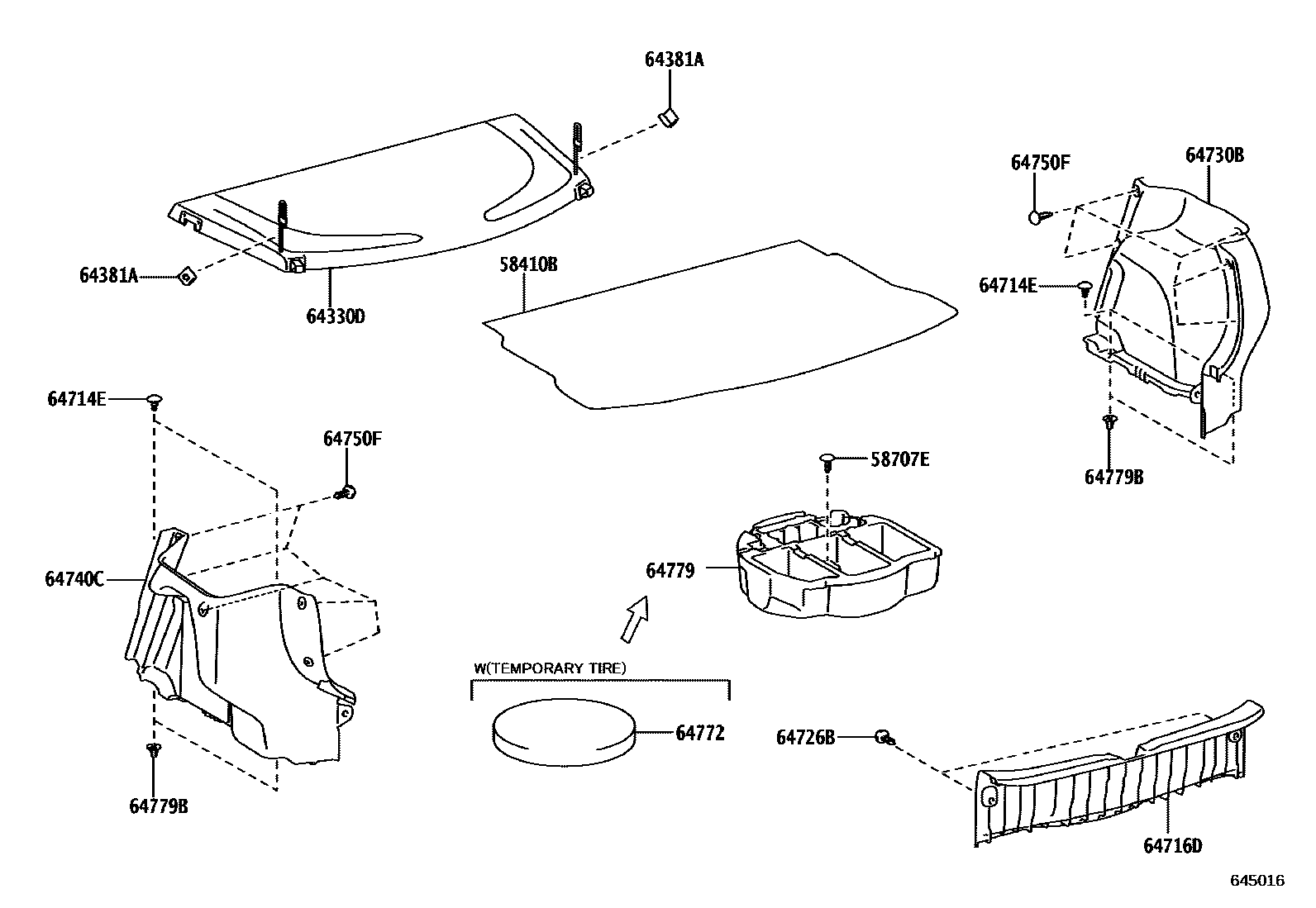

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58707E | hole plug assembly | 58707-50060 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64714E | Clip (for bottom panel side decorative cover) | 64726-0D060 |
| 64716D | Rear floor decorative cover | 64716-0D250 |
| 64772 | Spare tire cover liner | 64772-0D080 |
| 64779 | Spare tire cover bracket | 64779-0D130 |
| 64779B | Spare tire cover stop | 64779-0D090 |
