Toyota YARIS 车顶内衬和消声垫 — Figure 6402

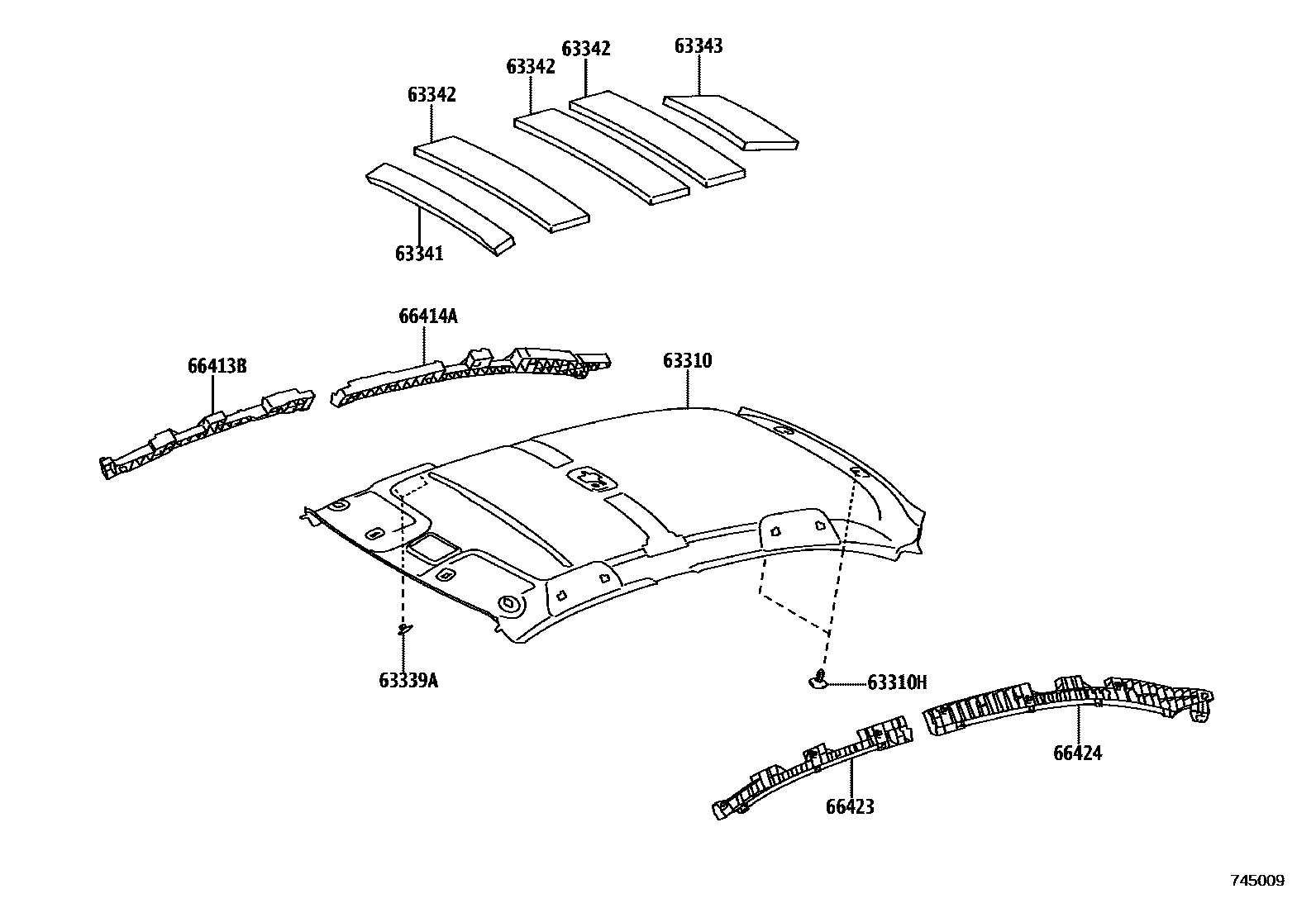

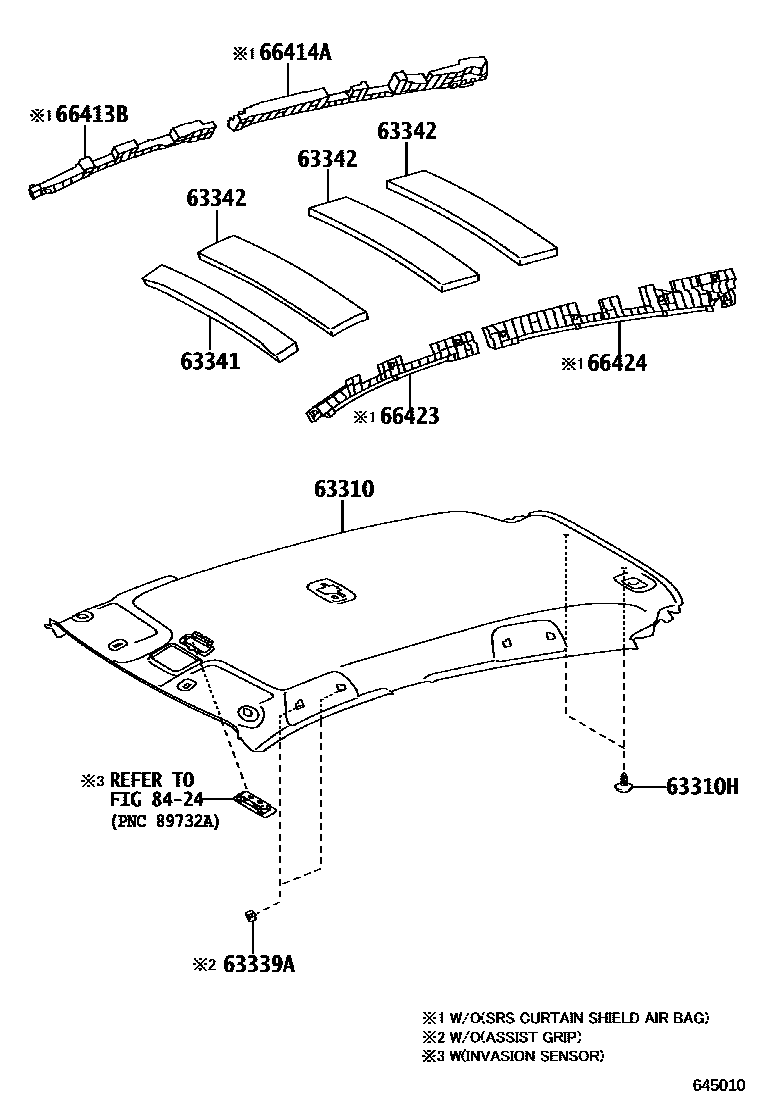

Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-0D240 |
| 63342 | No. 2 roof muffler pad | 63343-0D210 |
| 63343 | No. 3 roof muffler pad | 63343-0D520 |
| 66413B | Right front longitudinal member spacer | 66413-0D400 |
| 66414A | Right rear longitudinal member spacer | 66414-0D410 · 66414-0D430 |
| 66423 | Left front longitudinal member spacer | 66423-0D370 |
| 66424 | Left rear longitudinal member spacer | 66424-0D410 · 66424-0D430 |
