Toyota YARIS 侧梁 — Figure 6101

Toyota YARIS EPC diagram 6101, 侧梁, with 6 images and 59 PNC and OE references.

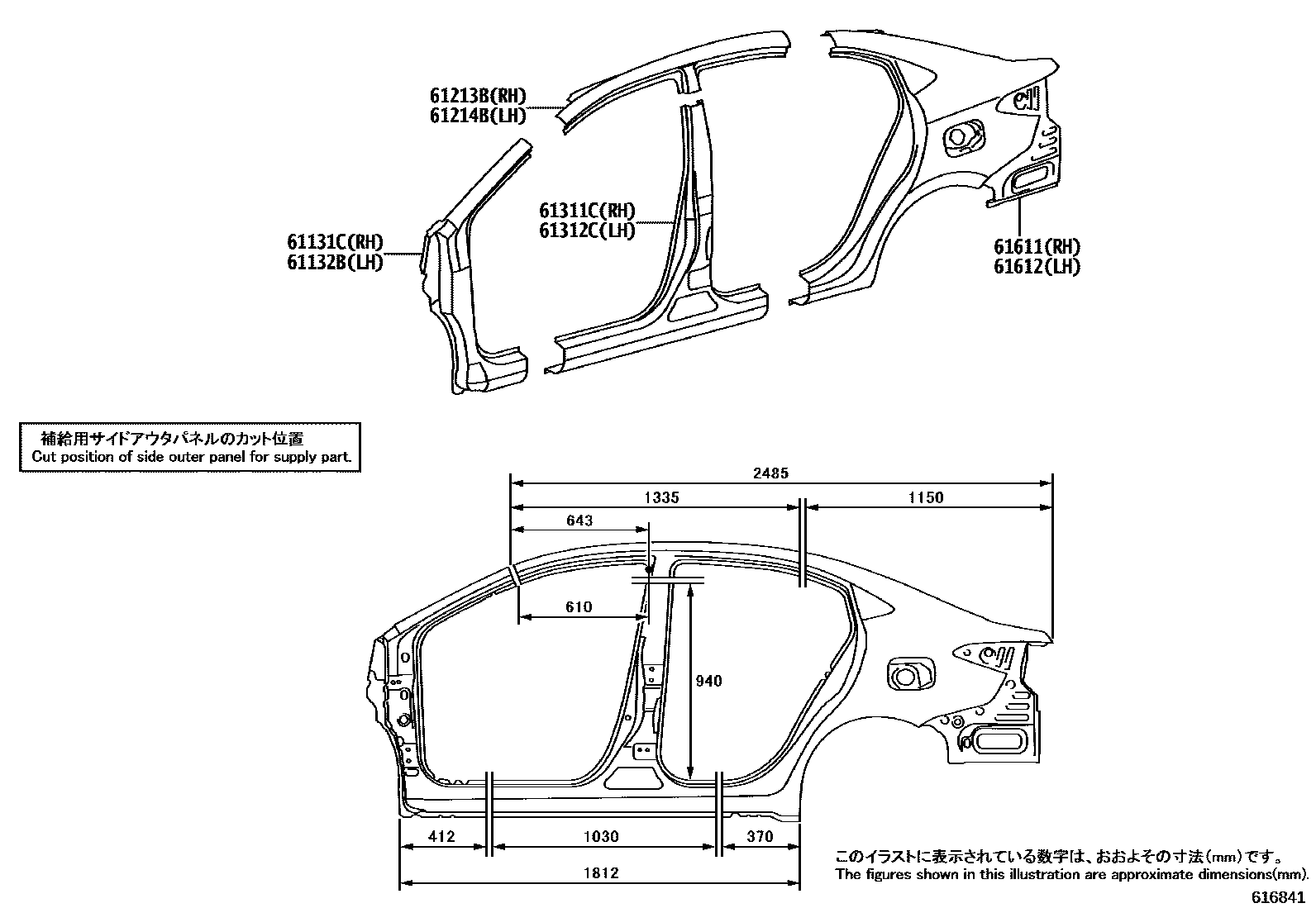

Toyota YARIS 侧梁 EPC diagram — 616841
侧梁 — 616841 (202101 – 999999)

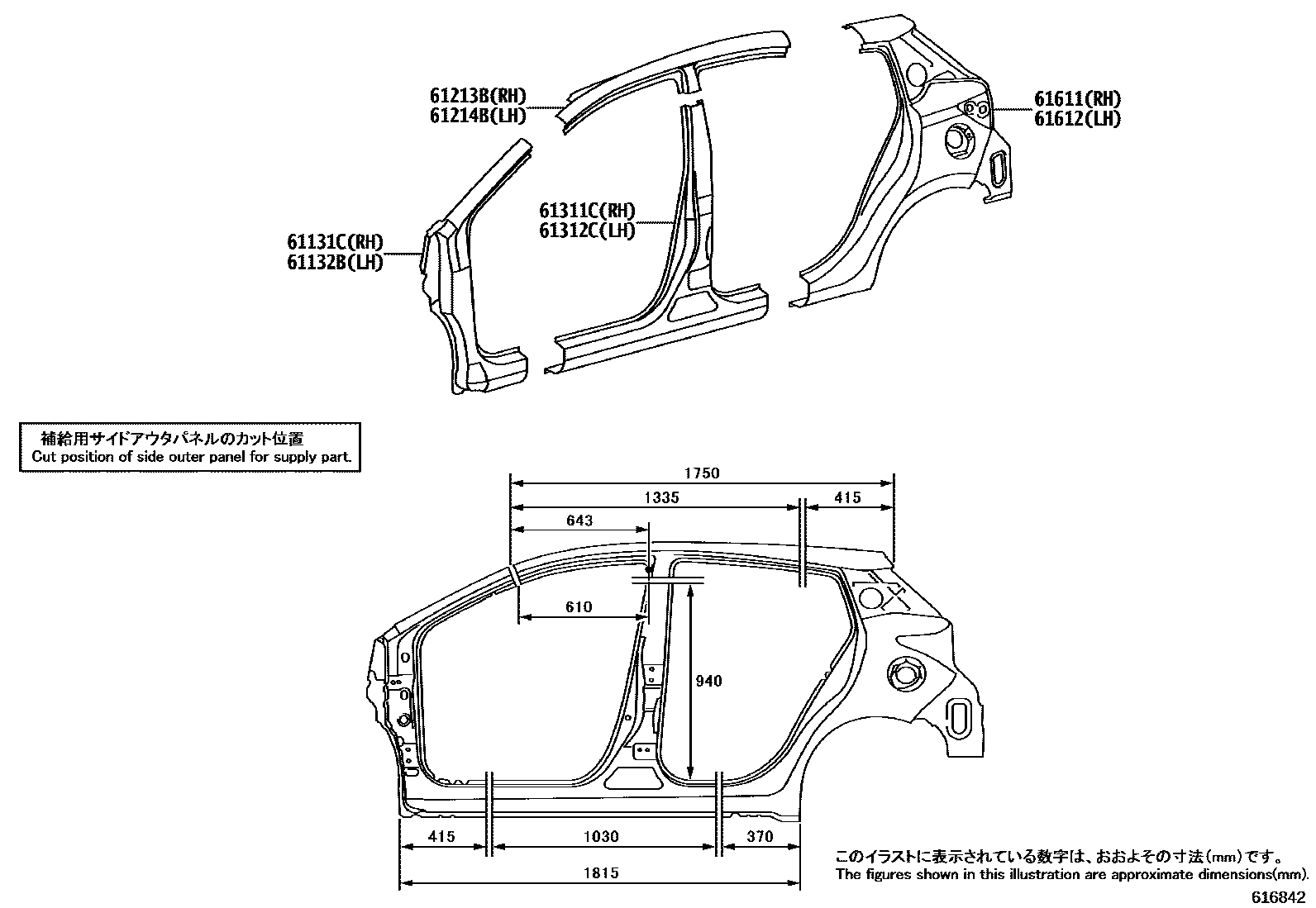

Toyota YARIS 侧梁 EPC diagram — 616842
侧梁 — 616842 (202101 – 999999)

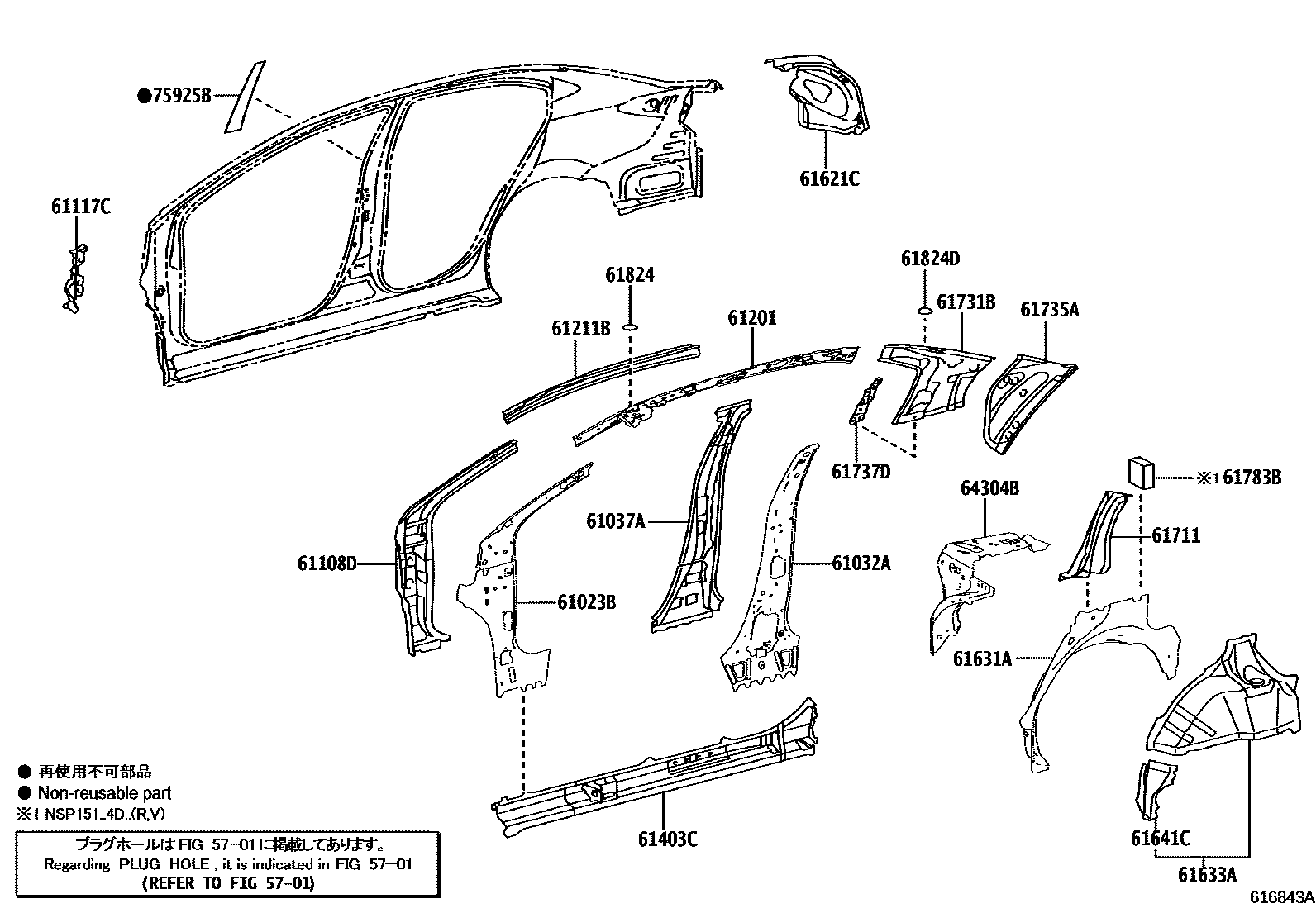

Toyota YARIS 侧梁 EPC diagram — 616843A
侧梁 — 616843A (202101 – 999999)

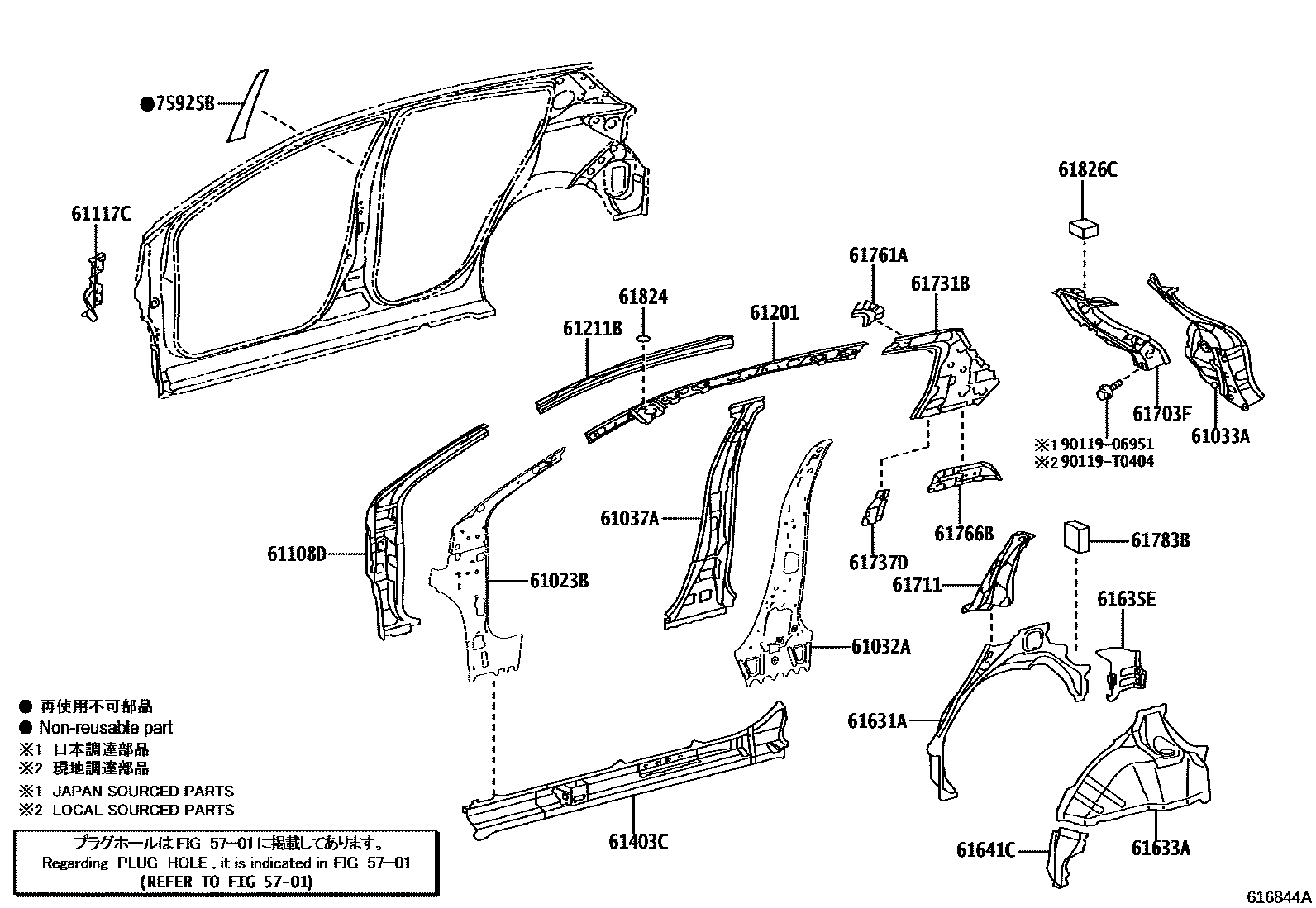

Toyota YARIS 侧梁 EPC diagram — 616844A
侧梁 — 616844A (202101 – 999999)

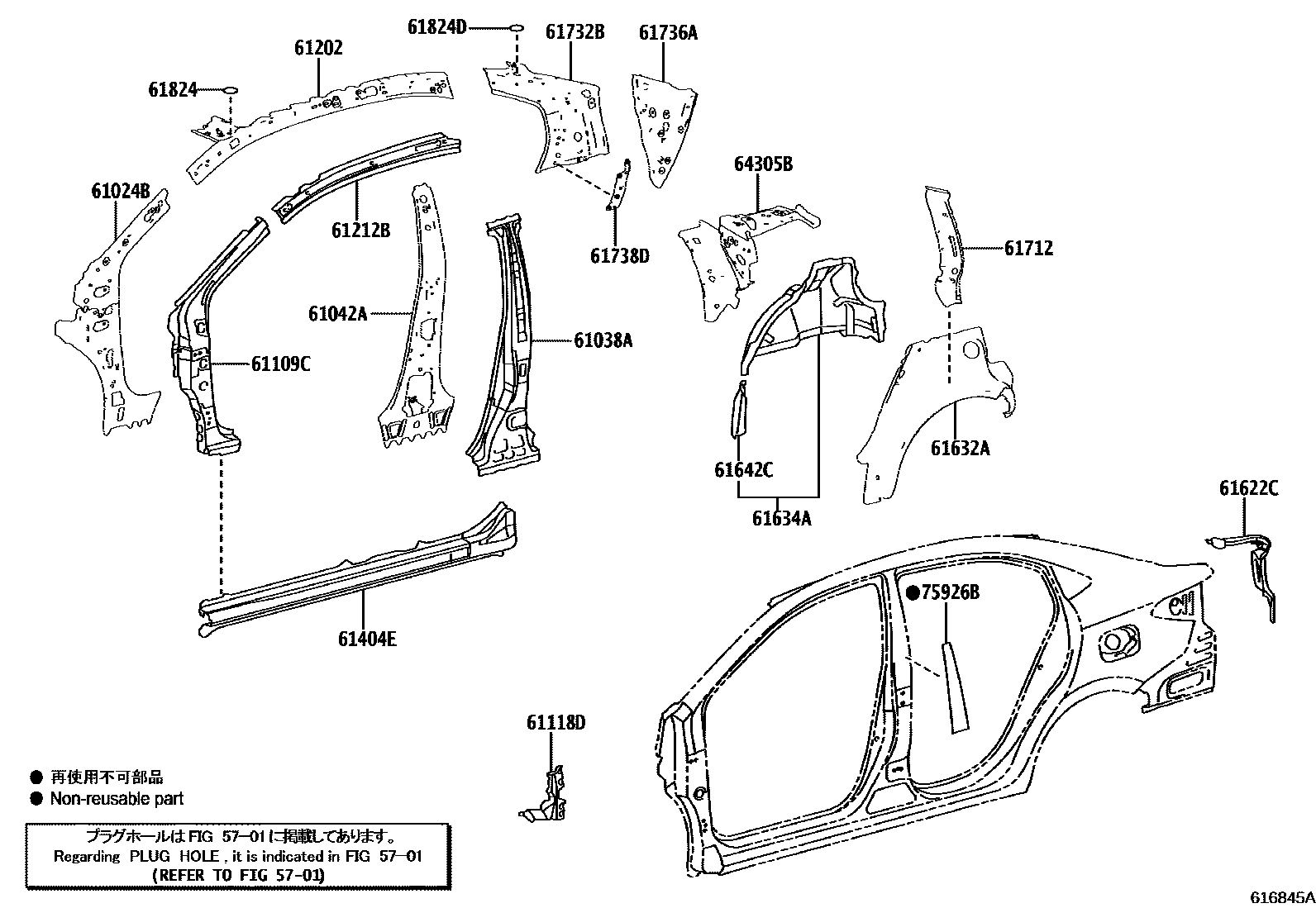

Toyota YARIS 侧梁 EPC diagram — 616845A
侧梁 — 616845A (202101 – 999999)

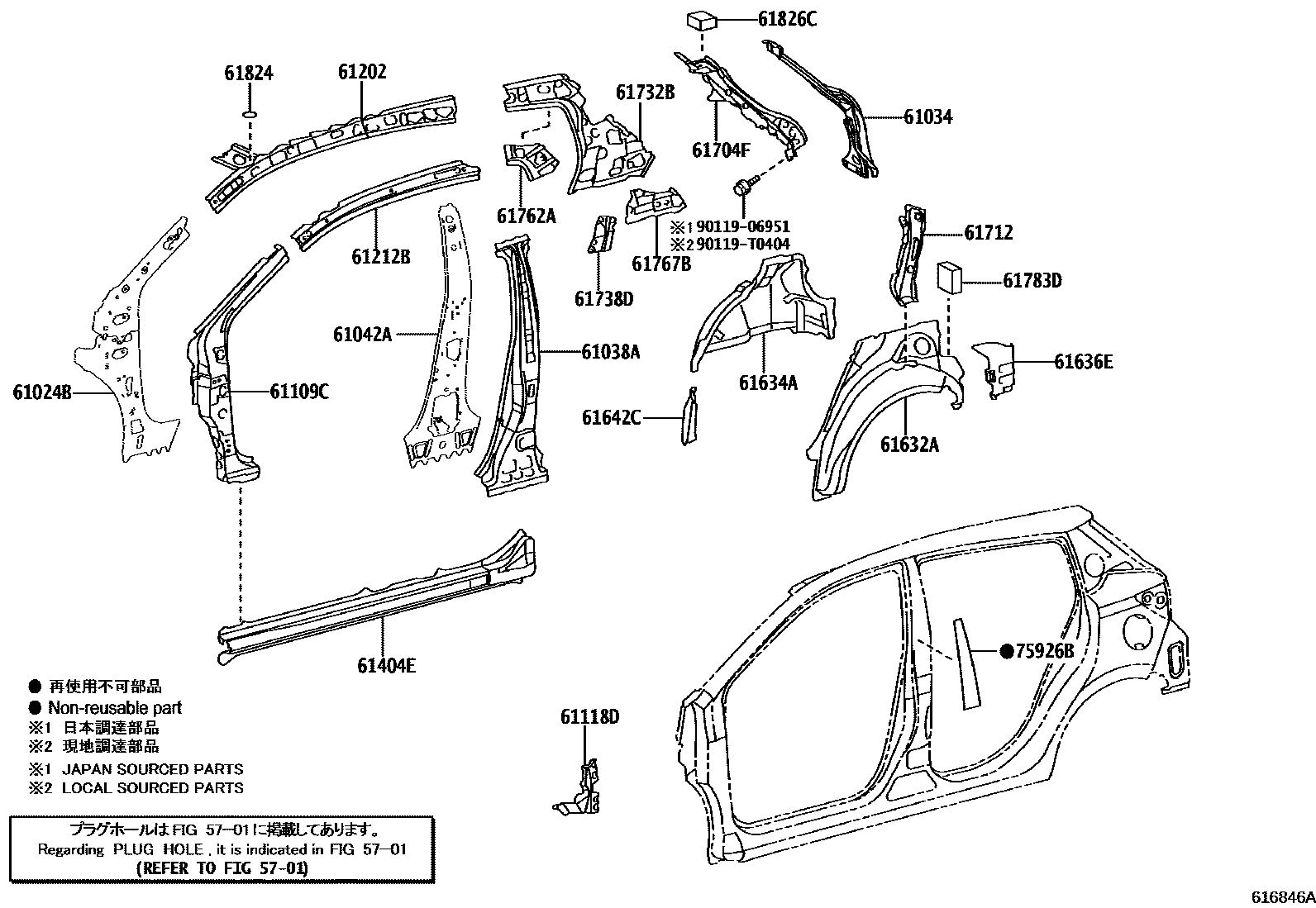

Toyota YARIS 侧梁 EPC diagram — 616846A
侧梁 — 616846A (202101 – 999999)

PNC and OE references

PNCPart nameOE numbers
61023BRight body inner front pillar sub-assembly61023-0D300
61024BLeft body inner front pillar sub-assembly61024-0D300
61032ANo. 1 right inner column sub-assembly61032-0D240
61033ARear door opening side reinforcement sub-assembly61033-0D160
61034Rear door opening left reinforcement sub-assembly61034-0D170
61037ARight body center pillar reinforcement sub-assembly61037-0D916
61038ALeft body center pillar reinforcement sub-assembly61038-0D915
61042ANo. 1 left inner column sub-assembly61042-0D240
61108DFront panel right lower reinforcement sub-assembly61108-0D170
61109CFront panel left lower reinforcement sub-assembly61109-0D160
61117CSide panel to right front quarter panel61117-0D060
61118DSide panel to left front quarter panel61118-0D060
61131CRight body outer front pillar61131-0D200
61132BLeft body outer front pillar61132-0D200
61201Roof right side longitudinal beam sub-assembly61201-0D240 · 61201-0D290
61202Roof left side longitudinal beam sub-assembly61202-0D240 · 61202-0D290
61211BRight rear roof outer longitudinal beam61211-0D280 · 61211-0D330
61212BLeft rear roof rail61212-0D270 · 61212-0D320
61213BNo. 2 longitudinal beam on the outer right side of the roof61213-0D100 · 61213-0D190
61214BNo. 2 longitudinal beam on the left side of the roof61214-0D100 · 61214-0D190
61311CRight rear body front outer panel61311-0D130
61312CLeft rear body front outer panel61312-0D130
61403CRight door outer sill reinforcement sub-assembly61403-0D390
61404ELeft door outer sill reinforcement sub-assembly61404-0D390
61611Right side hoarding61601-0D420 · 61601-0D470
61612left side panel61602-0D440 · 61602-0D490
61621CLuggage right opening slot61063-0D120
61622CLuggage trunk left opening slot61064-0D120
61631ARight wheel cover outer panel61631-K0010 · 61631-K0020
61632ALeft side wheel cover outer panel61632-K0010 · 61632-K0020
61633ARight wheel housing lining panel61605-0D050 · 61607-0D280
61634ALeft side wheel housing lining panel61606-0D080 · 61608-0D280
61635ERight wheel housing extension61635-0D090
61636ELeft side wheel housing extension61636-0D090
61641CRight front side wheel housing corner panel61641-0D070
61642CLeft front side wheel housing corner panel61642-0D070
61703FRight front side panel inner panel sub-assembly61703-0D180
61704FLeft front side panel inner panel sub-assembly61704-0D190
61711Roof right side outer panel61711-K0020 · 61711-K0030
61712Roof left outer panel61712-K0020 · 61712-K0030
61731BRoof right inner panel61731-K0050 · 61731-K0060
61732BRoof left inner panel61732-K0050 · 61732-K0060
61735ARight rear roof inner panel61735-K0020
61736ALeft rear roof inner panel61736-K0020
61737DRoof right inner reinforcement61737-0D090 · 61737-0D100
61738DRoof left inner reinforcement61738-0D090 · 61738-0D100
61761ASeat belt anchor upper reinforcement for No. 1 right-hand seat61761-0D070
61762ALeft No. 1 seat belt anchor upper reinforcement61762-0D100
61766BRight seat belt anchor to roof inner reinforcement61766-0D110
61767BLeft-hand seat belt anchor to roof inner reinforcement61767-0D120
61783BNo. 1 rear fender outer panel pad61783-0D090 · 61783-0D100
61783DNo. 1 rear fender outer panel pad61783-0D010
61824Noise Control Panel No. 161824-0D020
61824DNoise Control Panel No. 161824-0D020
61826CNo. 3 silencer panel gasket61826-52040
64304BGlove box bracket right reinforcement sub-assembly64304-0D200
64305BGlove box bracket left reinforcement sub-assembly64305-0D200
75925BNo. 3 right side light-blocking film75925-0D080
75926BNo. 3 left shading film75926-0D080
