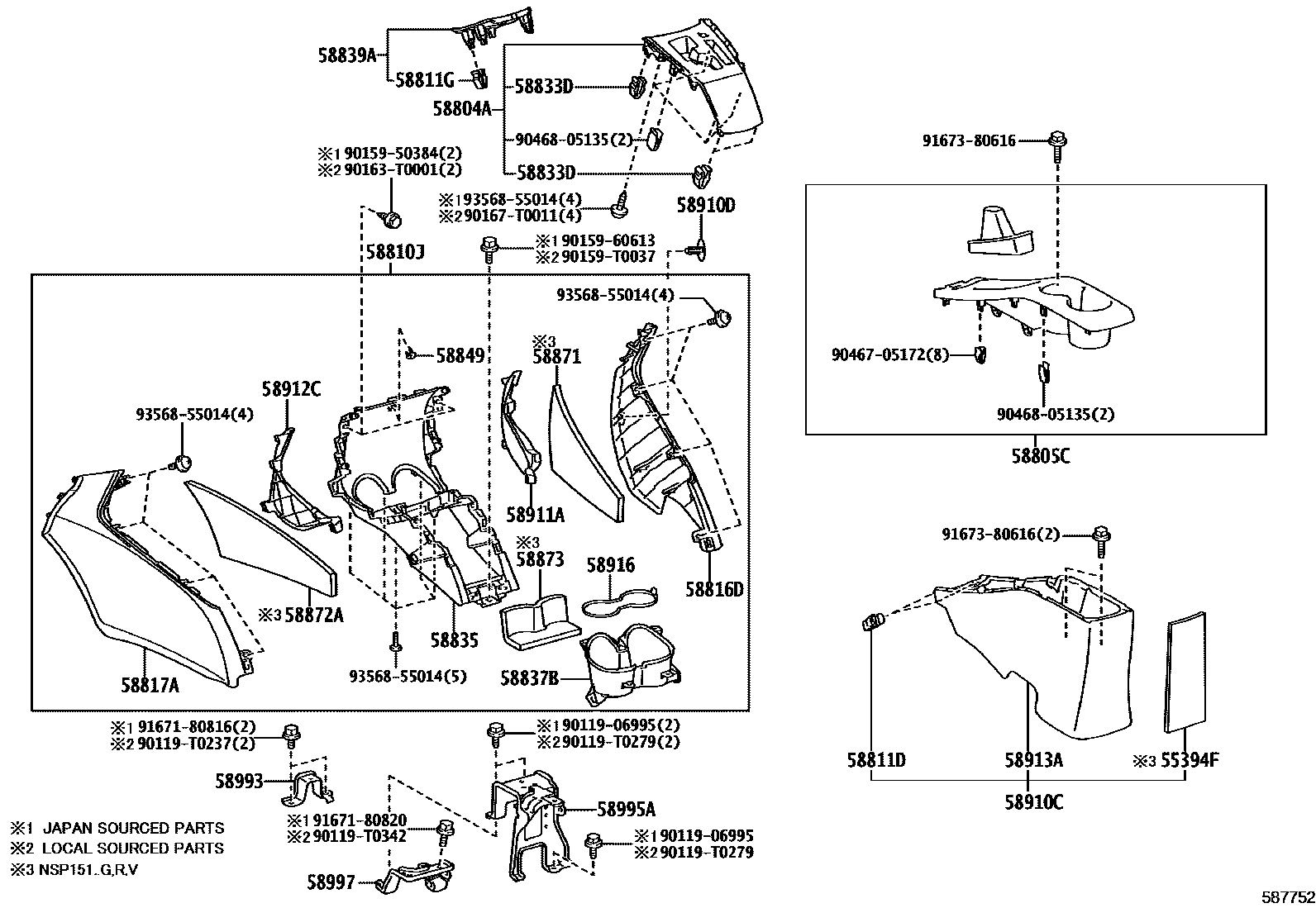

Toyota YARIS 中央扶手箱和支架 — Figure 5806
Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55394F | Under-dash cushion | 55394-0D200 |
| 58804A | Armrest box upper panel sub-assembly | 58804-0D470 · 58804-0D480 · 58804-0D490 |
| 58811D | Clip (for armrest box) | 90467-10203 |
| 58811G | Clip (armrest box) | 90467-05172 |
| 58833D | Clip (for armrest box cover) | 90467-05172 |
| 58871 | Armrest box cushion | 58871-0D130 |
| 58872A | Armrest Box No. 2 Cushion Pad | 58872-0D080 |
| 58873 | Armrest Box No. 3 Cushion Pad | 58873-0D040 |
| 58993 | Armrest box rear mounting bracket | 58993-0D040 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-0D170 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-0D090 |
