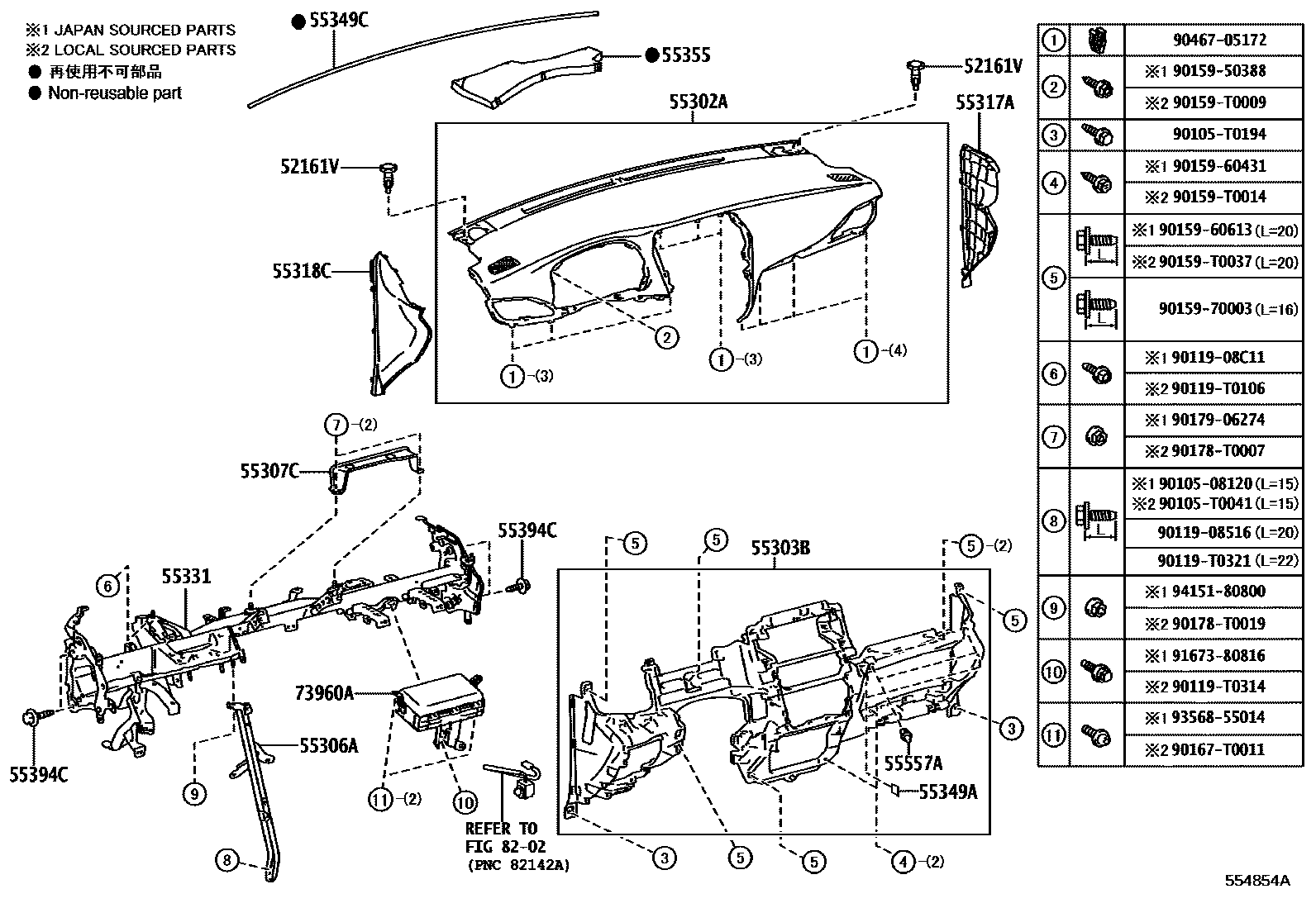

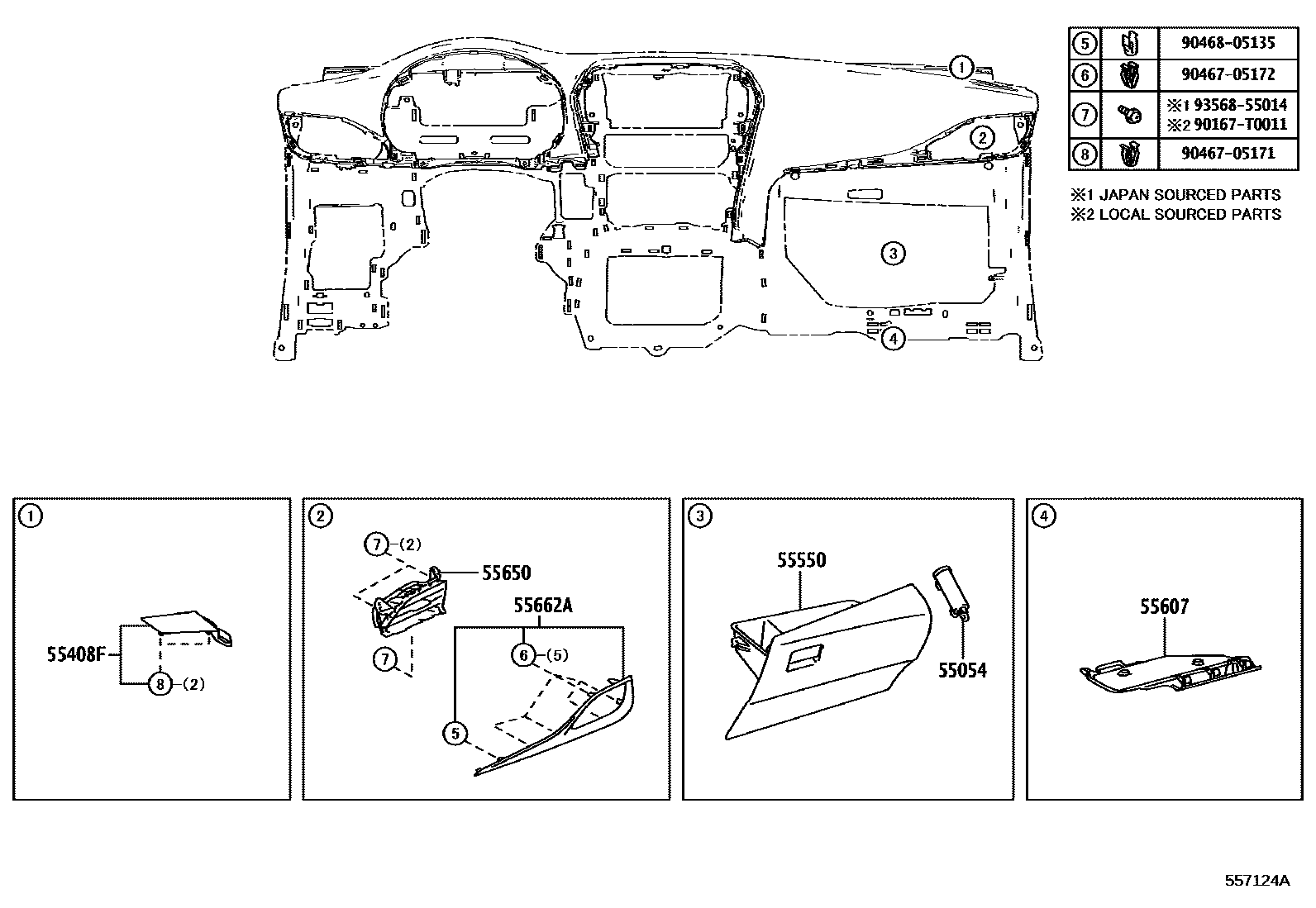

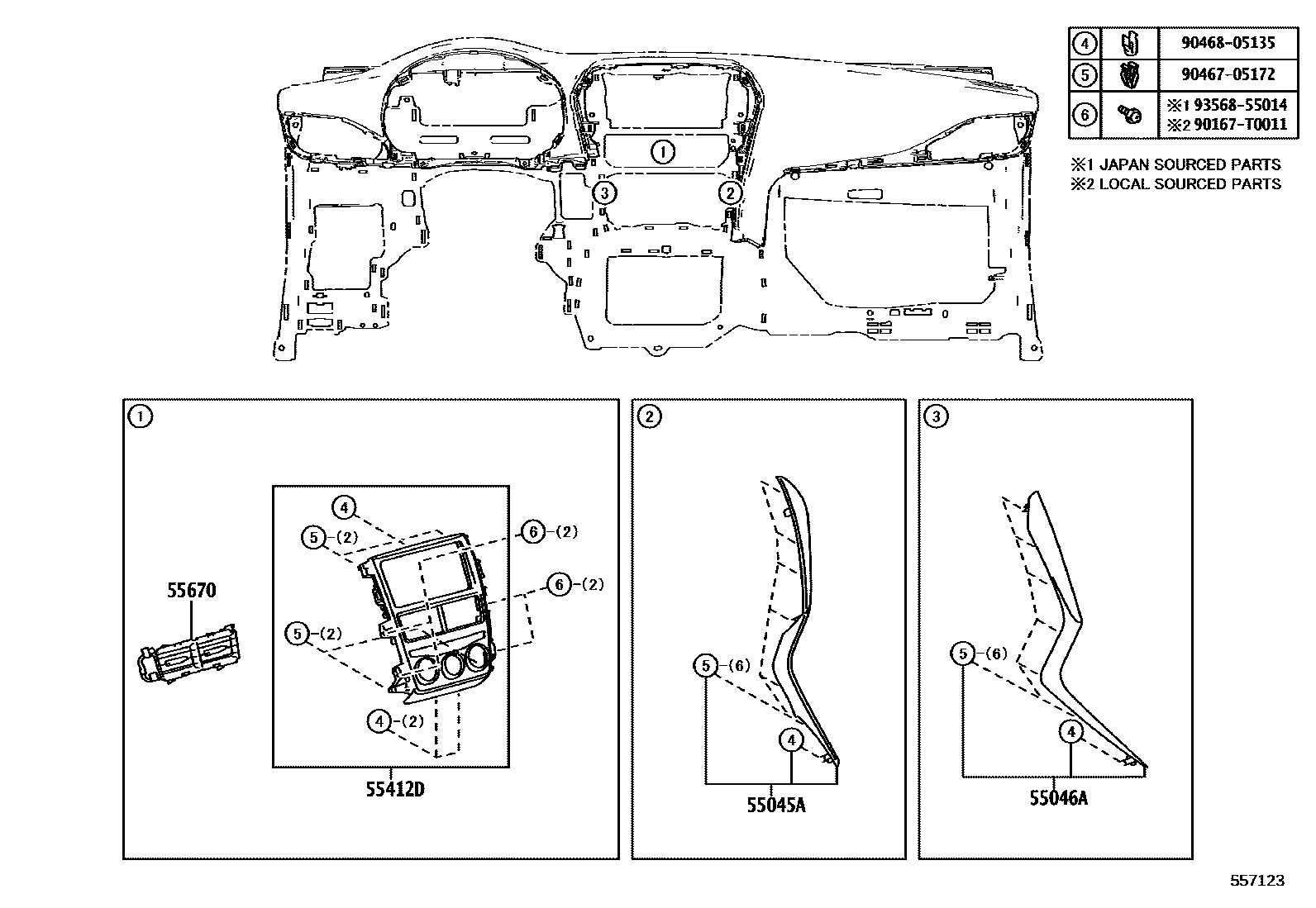

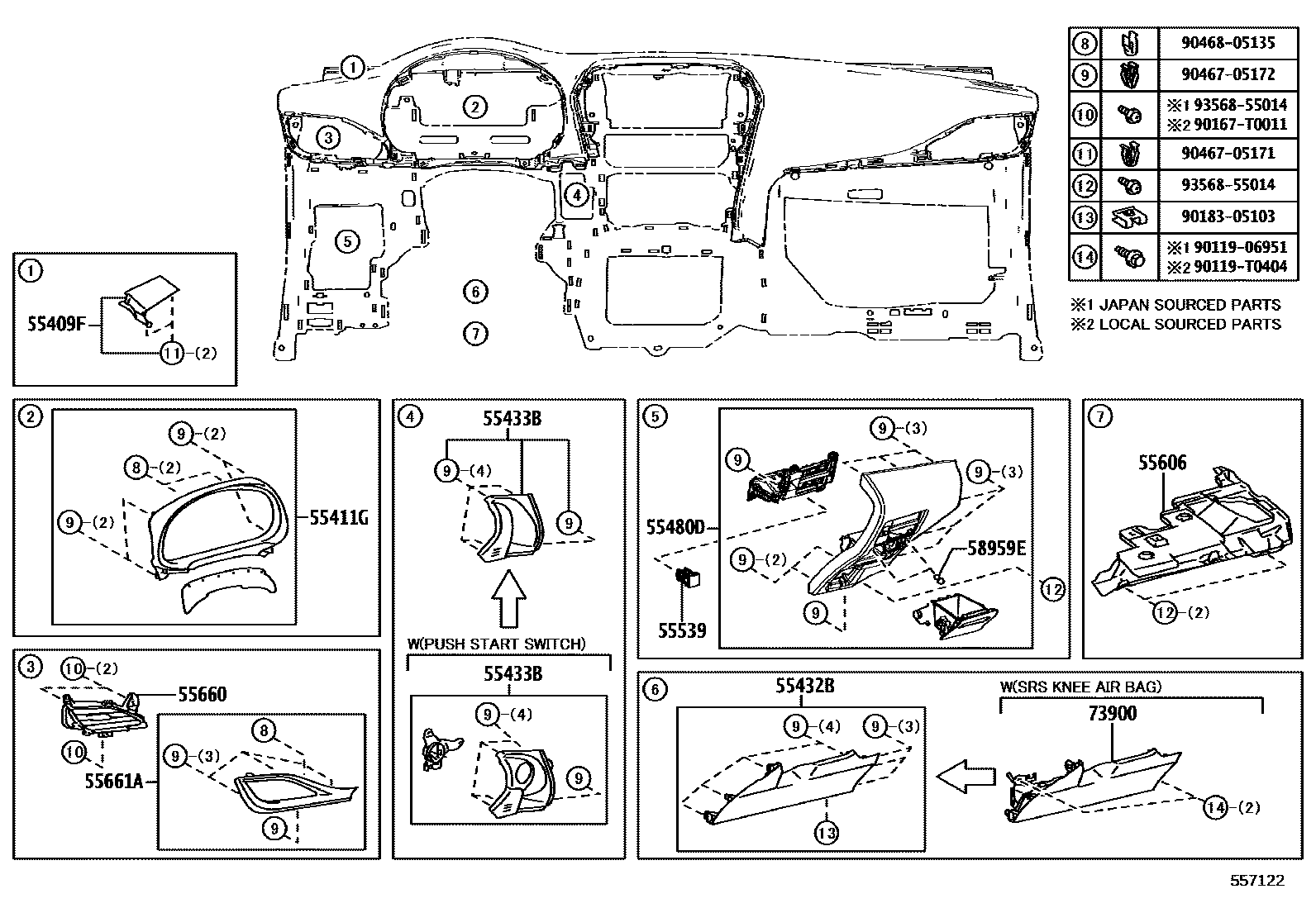

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161V | instrument panel insert | 52161-0K040 · 52161-16010 |
| 55045A | Instrument panel lower right decorative panel sub-assembly | 55046-0D290 · 55046-52040 |
| 55046A | Instrument panel lower left decorative panel sub-assembly | 55045-0D310 · 55045-52100 |
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D470 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55308-0D130 |
| 55331 | Dashboard reinforcement | 55330-0D811 |
| 55349A | Dashboard cushion | 55349-0D400 |
| 55349C | Dashboard cushion | 55349-0D280 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D430 |
| 55394C | Dashboard bolts | 55394-52010 |
| 55412D | Center instrument cluster decorative panel | 55405-0DA90 |
| 55557A | Glove box cover limit pad | 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D230 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0D240 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55660-0D520 · 55660-0D530 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55650-0D670 · 55650-0D680 |
| 55661A | Dashboard air register bezel | 55661-0D410 |
| 55662A | No. 2 air regulator frame on dashboard | 55662-0D350 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-0D400 · 55670-0D410 · 55670-0D530 · 55670-0D540 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0D170 |
