Toyota YARIS Floor stringers — Figure 5305

Toyota YARIS EPC diagram 5305, Floor stringers, with 2 images and 37 PNC and OE references.

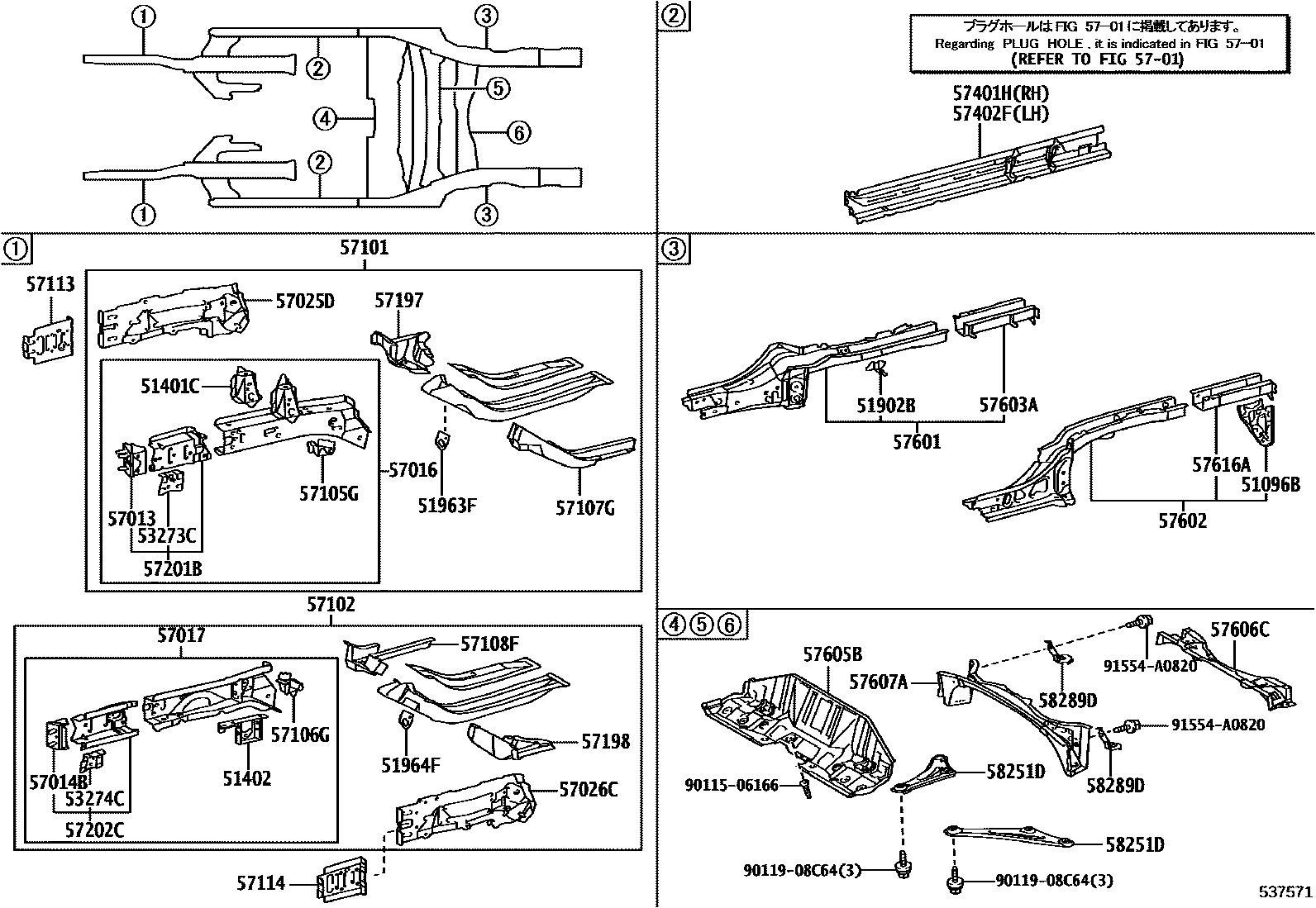

Toyota YARIS Floor stringers EPC diagram — 537571
Floor stringers — 537571 (202101 – 999999)

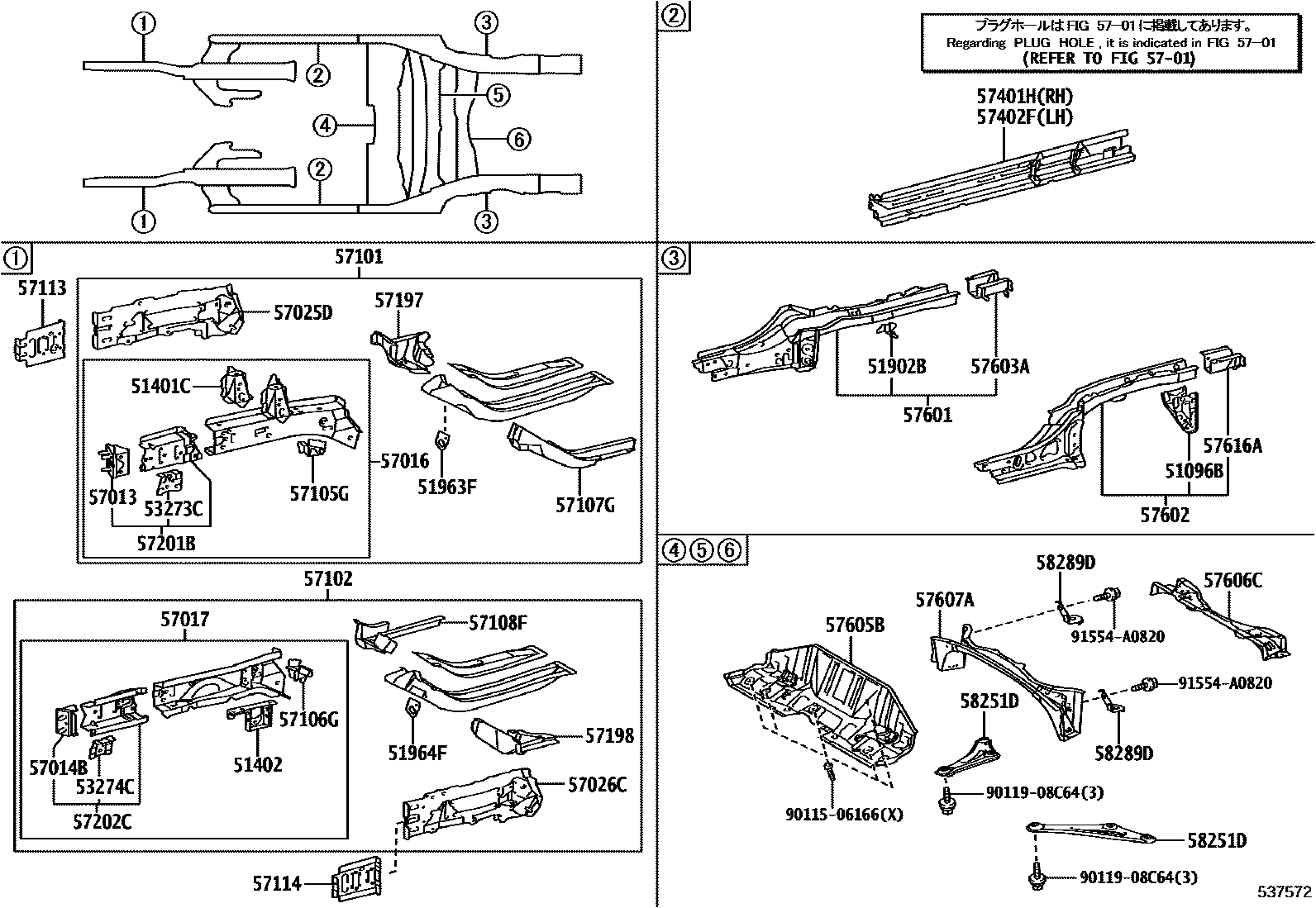

Toyota YARIS Floor stringers EPC diagram — 537572
Floor stringers — 537572 (202101 – 999999)

PNC and OE references

PNCPart nameOE numbers
51096BLeft rear transport hook sub-assembly51096-0D070
51401CEngine right front mounting bracket sub-assembly51401-0D020
51402Engine left front mounting bracket sub-assembly51402-0D020
51902BNo. 2 exhaust pipe hanger sub-assembly51902-0D050
51963Ftransport hook51963-0D150
51964Fleft transport hook51963-0D150
53273CRadiator right side bracket reinforcement53273-0D100
53274CRadiator left bracket reinforcement53274-0D070
57013Right front longitudinal beam bracket sub-assembly57013-0D091
57014BLeft front longitudinal beam bracket sub-assembly57014-0D081
57016Right front longitudinal beam reinforcement sub-assembly57016-0D160
57017Left front longitudinal beam reinforcement sub-assembly57017-0D230
57025DRight front outer longitudinal beam sub-assembly57025-0D090
57026CLeft front outer longitudinal beam sub-assembly57026-0D090
57101Right front longitudinal beam sub-assembly57101-0D230
57102Left front longitudinal beam sub-assembly57102-0D280
57105GRight front suspension cross member spacer sub-assembly57105-0D040
57106GSuspension cross member left front spacer sub-assembly57106-0D020
57107GRight front suspension cross member rear mounting bracket sub-assembly57107-0D060
57108FLeft front suspension cross member rear mounting bracket sub-assembly57108-0D060
57113Right front longitudinal beam extension57113-0D060
57114Left front longitudinal beam extension57114-0D060
57197Right front torsion box section piece57197-0D040
57198Left front anti-torsion box section piece57198-0D040
57201BRight front longitudinal beam extension sub-assembly57201-0D051
57202CLeft front longitudinal beam extension sub-assembly57202-0D061
57401HFloor right inner longitudinal beam sub-assembly57401-0D250
57402FFloor left inner longitudinal beam sub-assembly57402-0D230
57601Rear floor right longitudinal beam sub-assembly57601-0D360 · 57601-0D370
57602Rear floor left longitudinal beam sub-assembly57602-0D300 · 57602-0D310
57603ARear floor right rear longitudinal beam sub-assembly57603-0D140 · 57603-0D150
57605BRear floor No. 1 cross member sub-assembly57605-0D160
57606CRear floor No. 2 cross member sub-assembly57606-0D060
57607ARear floor No. 3 cross member sub-assembly57607-0D070
57616ARear floor left rear longitudinal member57616-0D120 · 57616-0D130
58251Dfront floor bracket58251-0D120 · 58252-0D100
58289DRear floor brake hose bracket58289-0D110 · 58299-0D110
