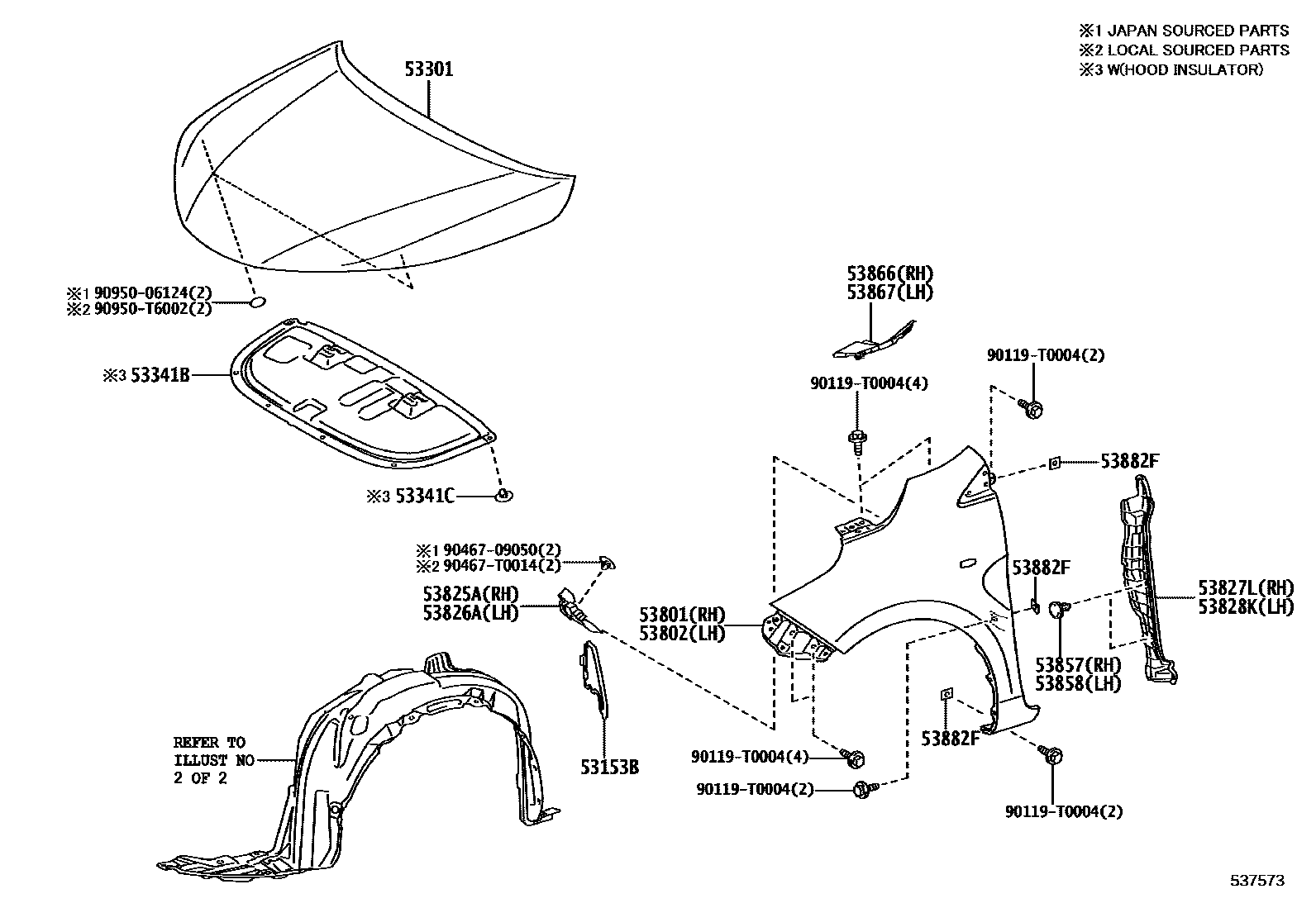

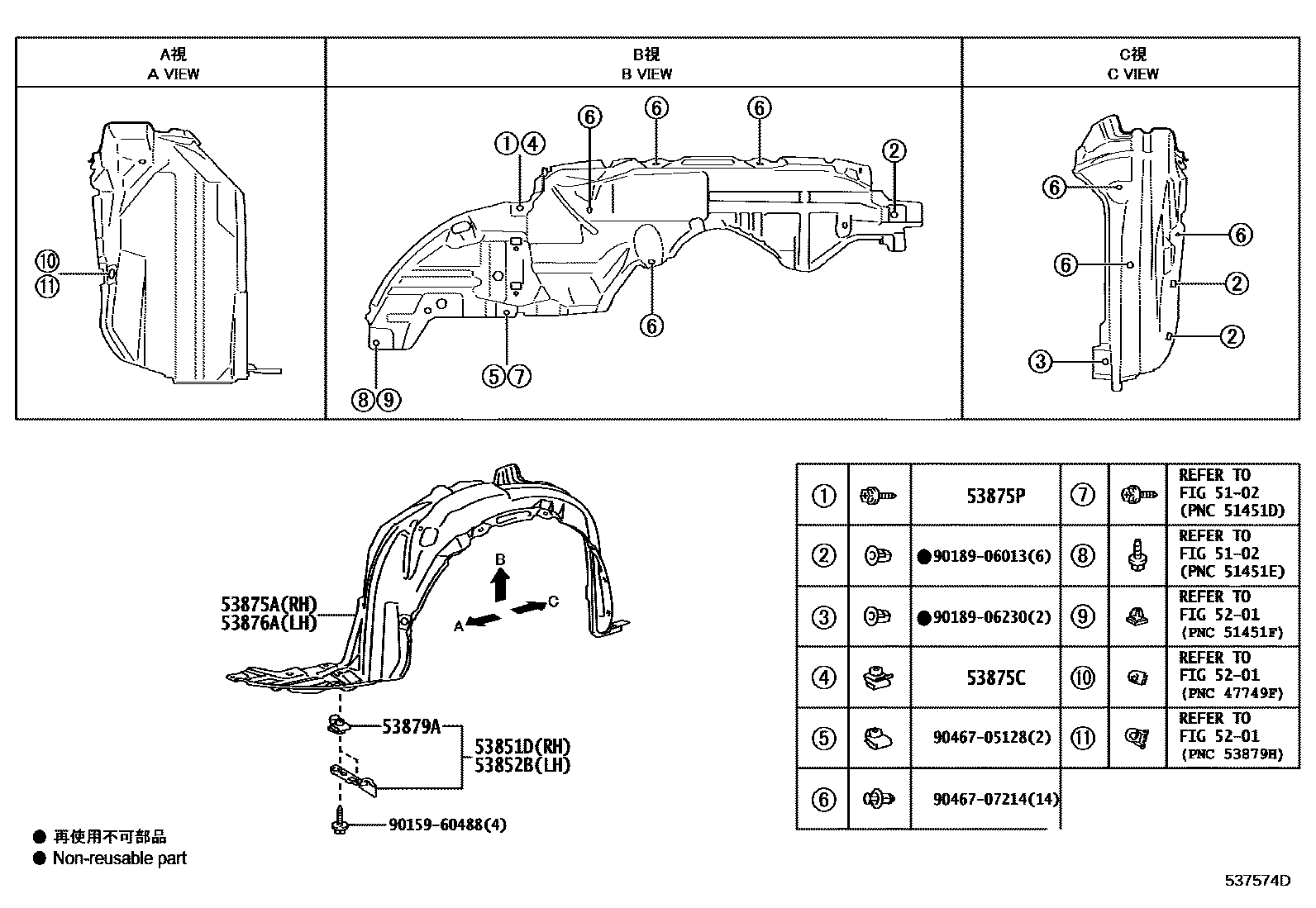

Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-0D040 |
| 53301 | Engine cover sub-assembly | 53301-0D310 |
| 53341B | engine cover gasket | 53341-0D310 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-T0014 |
| 53801 | Right front fender sub-assembly | 53801-0D190 · 53801-0D200 |
| 53802 | Left front fender sub-assembly | 53802-0D190 · 53802-0D200 |
| 53825A | Right front fender protection piece | 53825-0D070 |
| 53826A | Protection piece on left front fender | 53826-0D070 |
| 53827L | Right front fender side panel protector | 53827-0D241 |
| 53828K | Left front fender side panel protector | 53828-0D241 |
| 53851D | Right front fender outer panel pad | 53851-0D150 |
| 53852B | Left front fender exterior panel pad | 53852-0D070 |
| 53857 | Right front fender external panel fixing piece | 53857-0K010 |
| 53858 | Left front fender external panel fixing piece | 53857-0K010 |
| 53866 | Right front fender to cowl side seal | 53866-0D220 |
| 53867 | Left front fender to cowl side seal | 53867-0D220 |
| 53875A | Right front fender lining | 53875-0D601 · 53875-0D611 |
| 53875C | Front fender lining clip | 90467-05114 |
| 53875P | Screw No. 1 | 90159-60488 |
| 53876A | Left front fender lining | 53876-0D601 · 53876-0D611 |
| 53879A | Front fender lining fixing parts | 53879-0D070 |
| 53882F | front fender seal | 53882-33060 |
