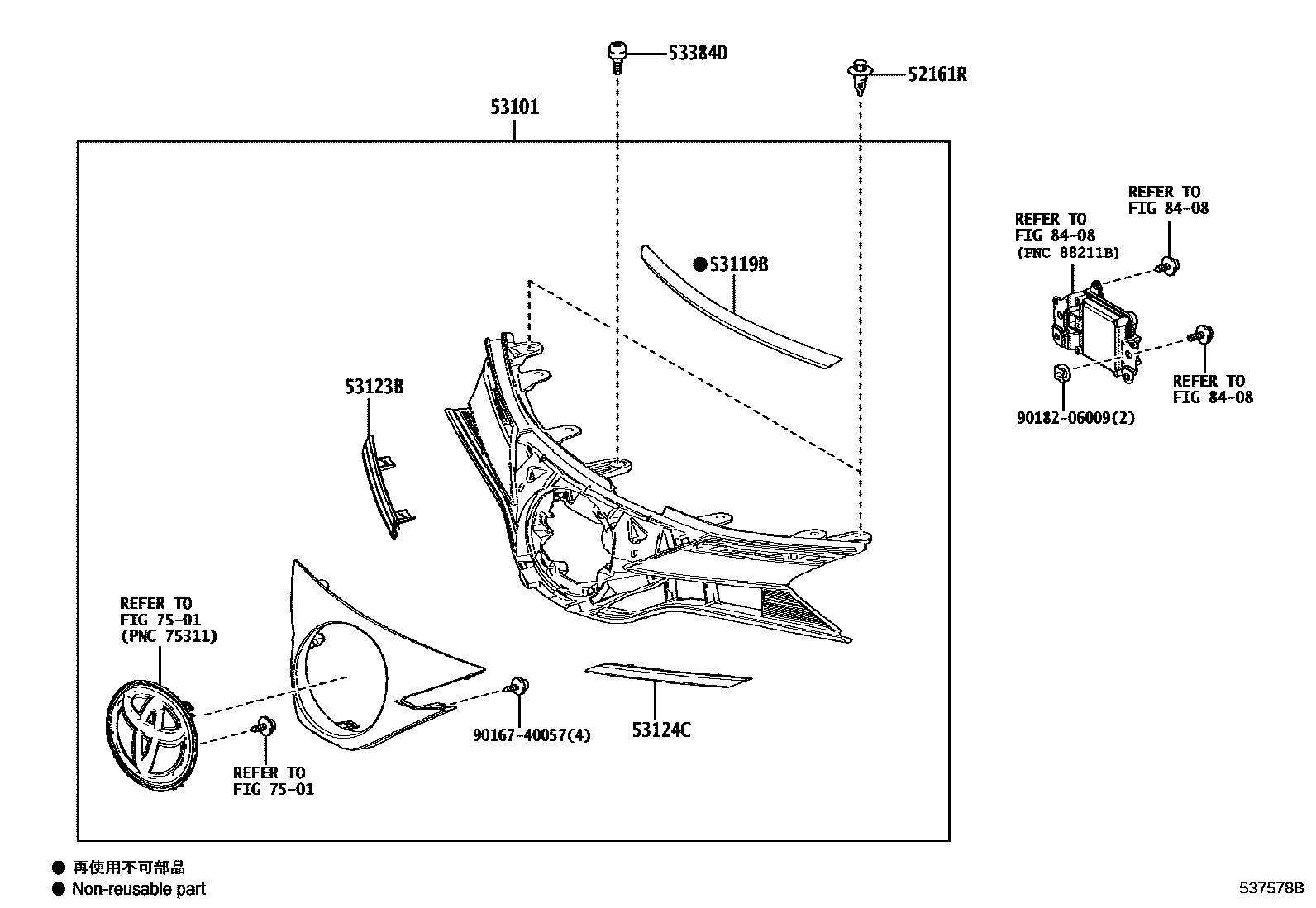

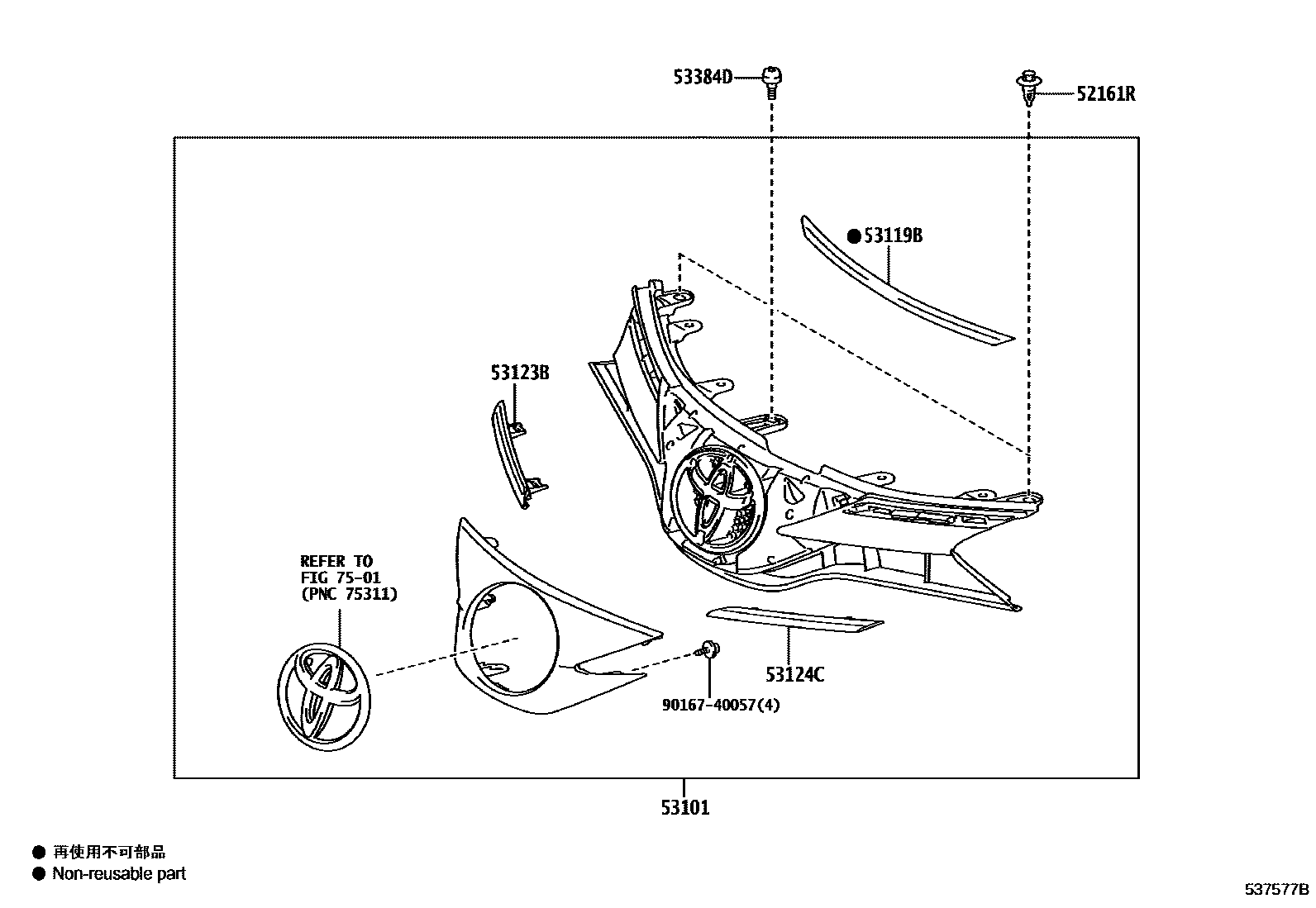

Toyota YARIS radiator grille — Figure 5301
Toyota YARIS EPC diagram 5301, radiator grille, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-0K040 |
| 53101 | Radiator grille sub-assembly | 53101-0D905 · 53101-0D908 |
| 53119B | Radiator grille protector | 53119-0D040 |
| 53123B | Protective strip on the right side of the radiator grille | 53123-0D170 |
| 53124C | Radiator grille upper left protective strip | 53124-0D290 |
| 53384D | Engine cover center cushion | 53119-12150 |
