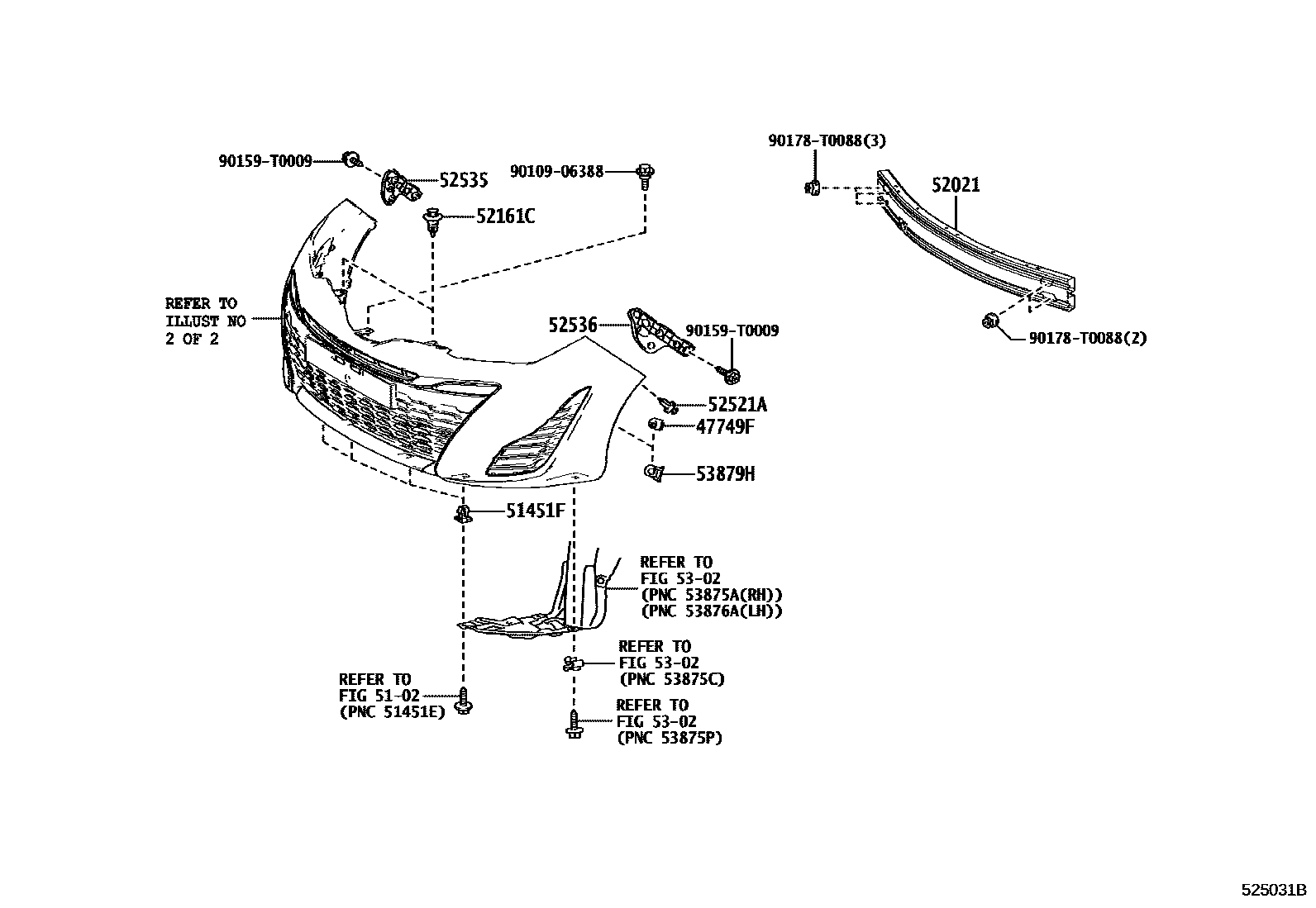

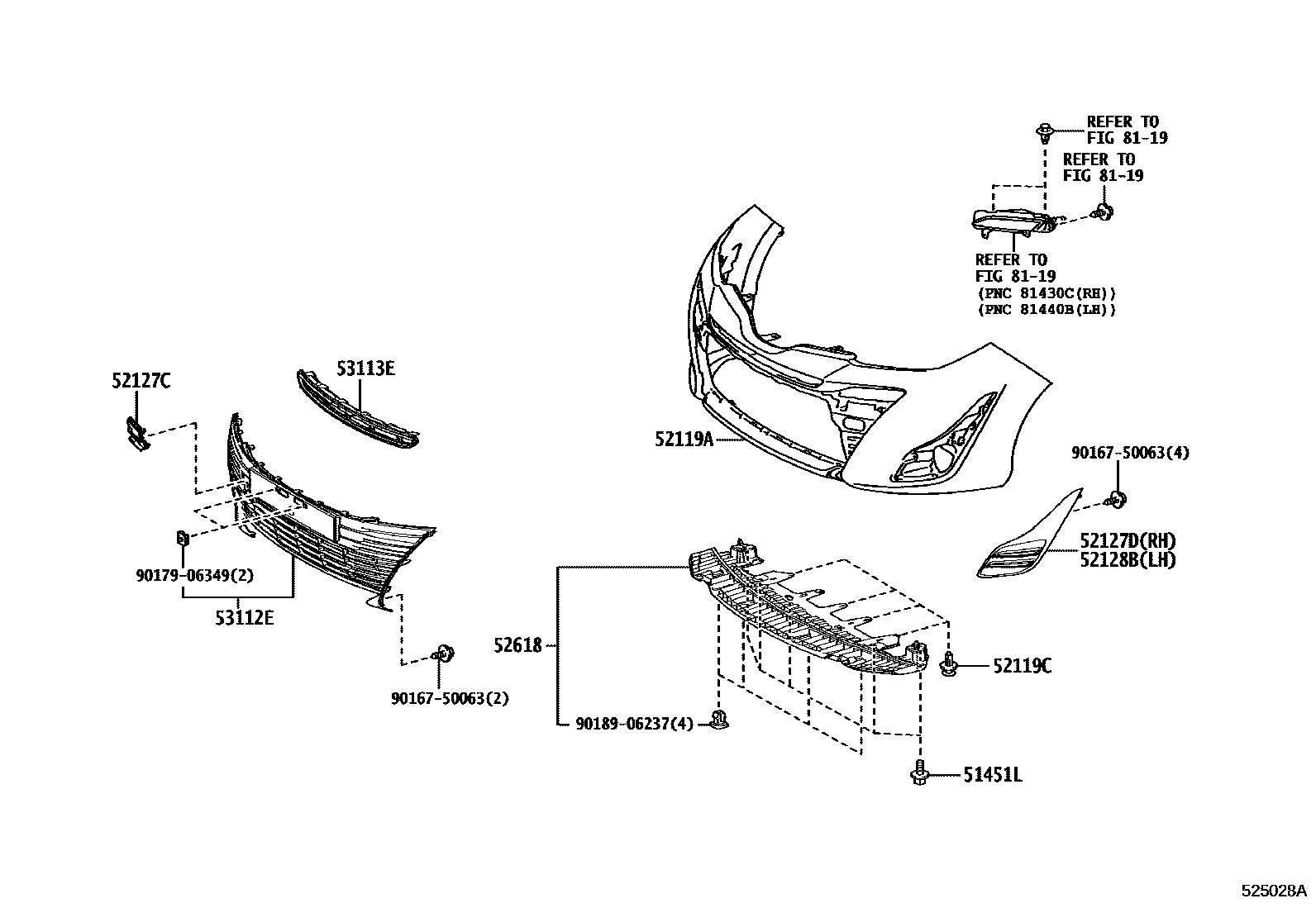

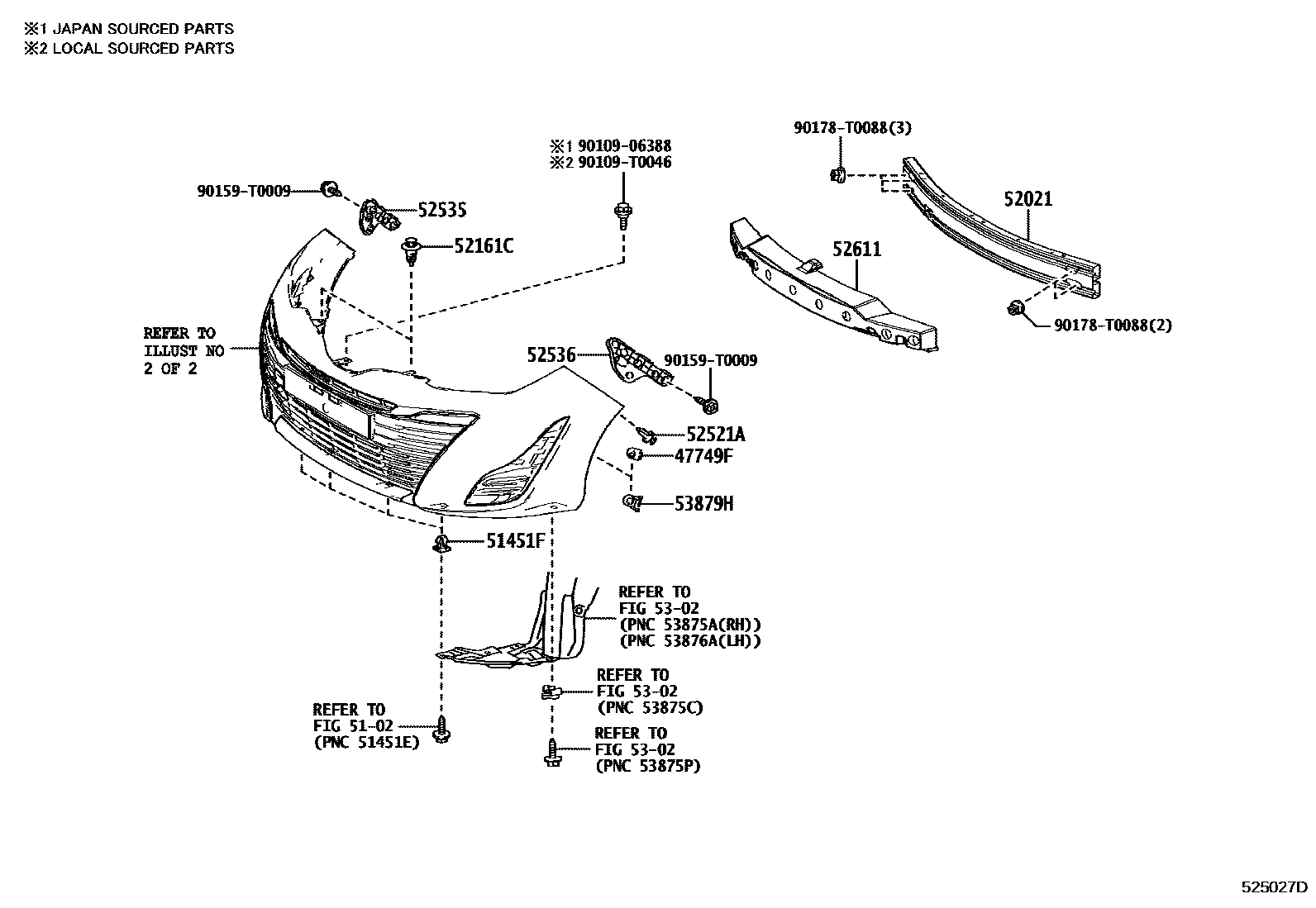

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-33030 |
| 51451F | Gasket No. 1 | 90189-06237 |
| 51451L | Bolt No. 1 | 90119-06355 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-0D170 |
| 52119A | front bumper cover | 52119-0U936 |
| 52119C | Front bumper cover clip | 90467-10216 |
| 52127C | Front bumper hole cover | 52721-0D260 · 52721-0D410 · 52721-0D420 · 52721-0D430 |
| 52127D | Front bumper right hole cover | 52127-0D740 · 52127-0D750 · 52127-0D790 |
| 52128B | Front bumper left hole cover | 52128-0D490 · 52128-0D500 · 52128-0D510 |
| 52161C | front bumper insert | 52161-0K040 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52535 | Front bumper right side fixing bracket | 52535-0D260 |
| 52536 | Front bumper left fixed bracket | 52536-0D260 |
| 52611 | front bumper energy absorber | 52611-0D190 |
| 52618 | Front bumper lower shock absorber | 52618-0D190 |
| 53112E | No. 1 radiator lower grille | 53112-0D590 · 53112-0D600 · 53112-0D610 · 53112-0D620 · 53112-0DA70 |
| 53113E | No. 2 radiator lower grille | 53113-0D070 |
| 53122E | Radiator grille lower protective strip | 53122-0D080 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
