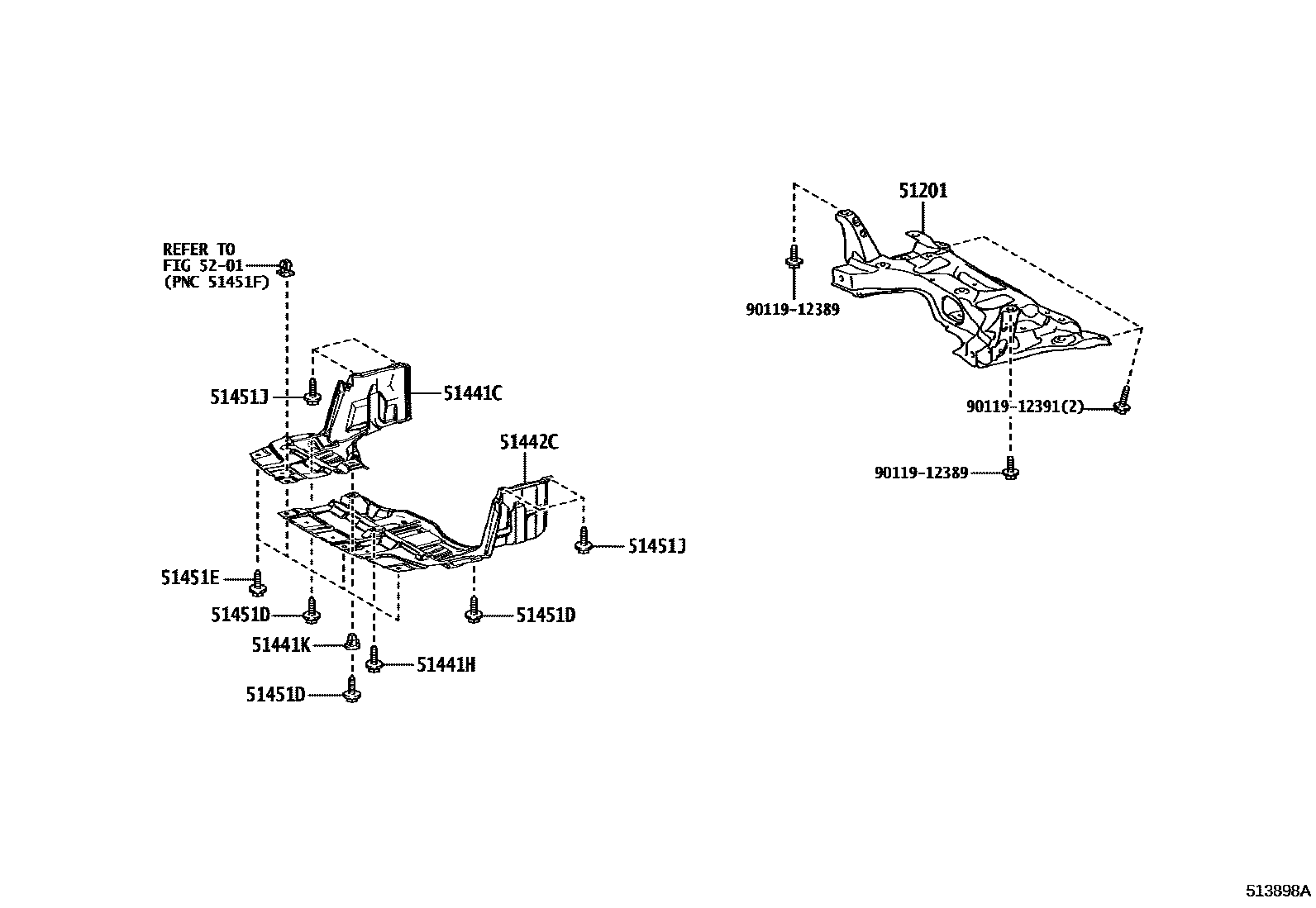

Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102
Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-0D171 |
| 51441C | Engine right bottom cover | 51441-0D320 |
| 51441H | Bolts with washers (for engine underhood) | 90119-06767 |
| 51441K | Gasket (for engine underhood) | 90189-06006 |
| 51442C | Engine left bottom cover | 51442-0D200 |
| 51451D | Screw No. 1 | 90159-60383 |
| 51451E | No. 2 screw | 90159-T0033 |
| 51451J | Bolt No. 1 | 90119-06767 |
