Toyota YARIS Rear Spring & Shock Absorber — Figure 4804

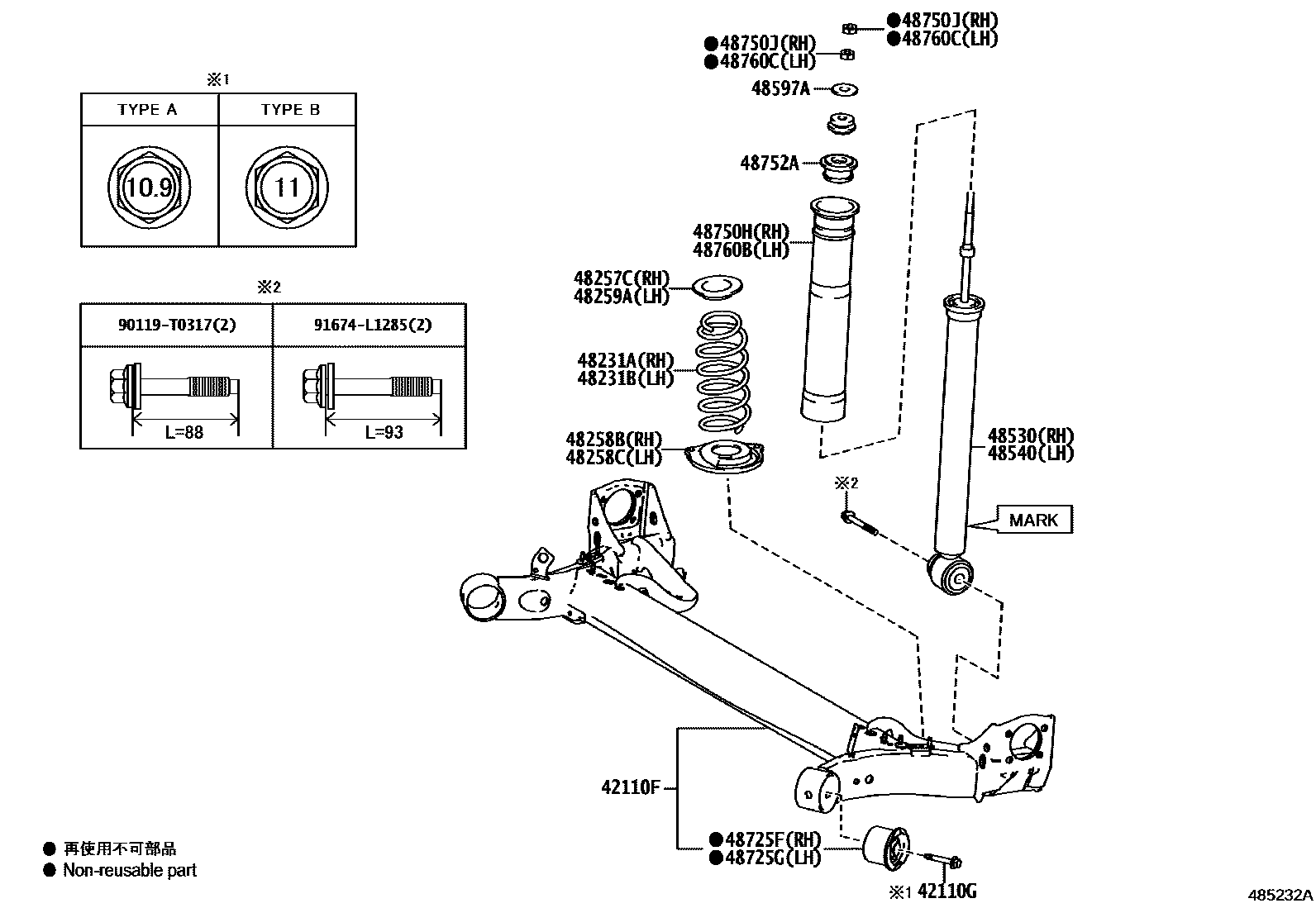

Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-0D422 · 42110-0D432 |
| 42110G | Bolts (for rear axle) | 90119-12385 · 90119-T0598 |
| 48231A | Right rear coil spring | 48231-0D550 · 48231-0D690 |
| 48231B | Left rear coil spring | 48231-0D550 · 48231-0D690 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-0D041 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-0D120 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-0D120 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-0D041 |
| 48530 | Right rear shock absorber assembly | 48530-0DD80 |
| 48540 | Left rear shock absorber assembly | 48530-0DD80 |
| 48597A | Rear shock absorber buffer pad | 90201-10320 |
| 48725F | Right rear axle bracket bushing | 48725-0D120 |
| 48725G | Left rear axle bracket bushing | 48725-0D120 |
| 48750H | Right rear suspension support assembly | 48750-0D210 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90170-T0011 · 94130-61000 |
| 48752A | Rear suspension mount block | 48752-0D020 |
| 48760B | Left rear suspension support assembly | 48750-0D210 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90170-T0011 · 94130-61000 |
