Toyota YARIS 制动助力器和真空管 — Figure 4703

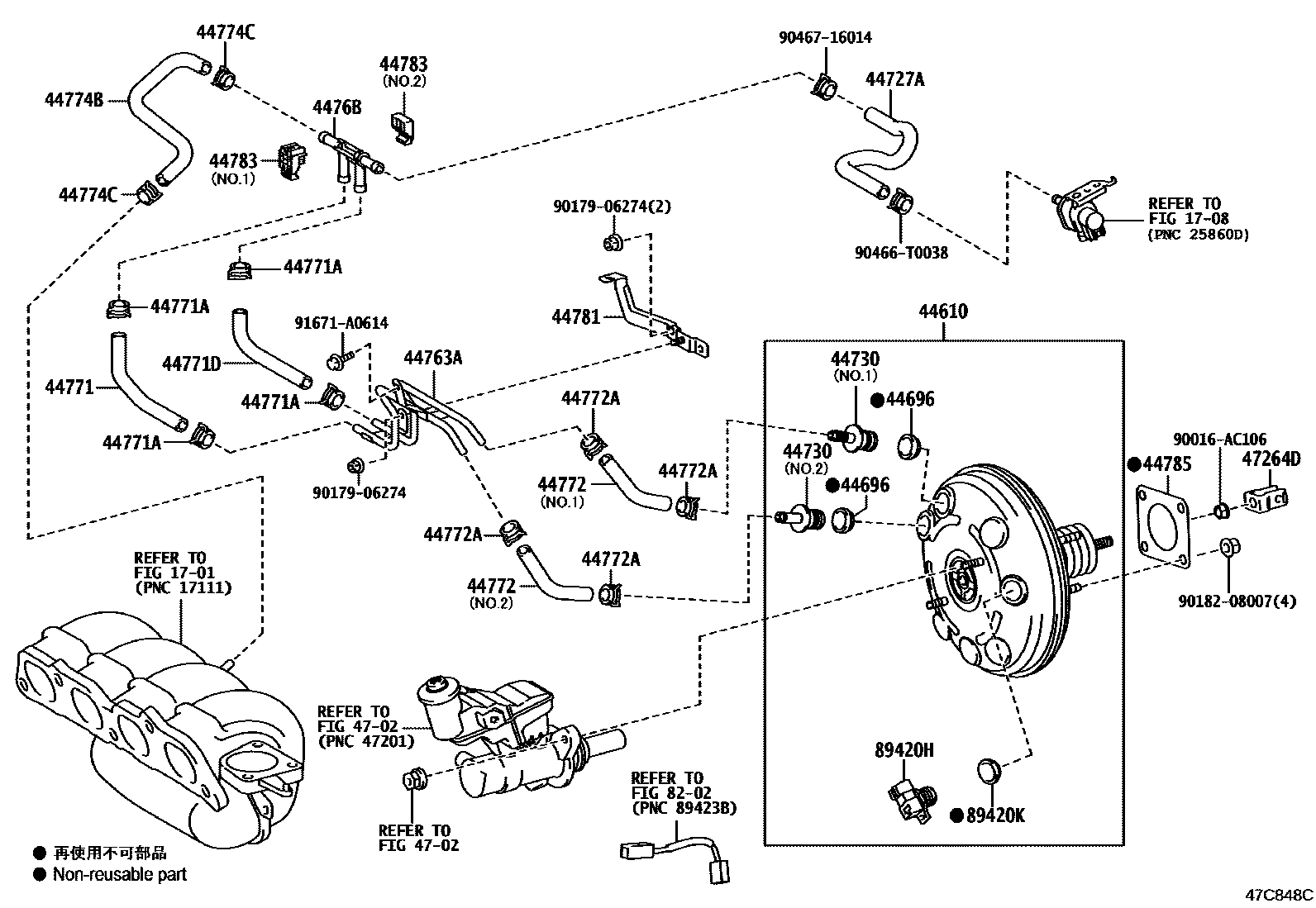

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-0DC50 · 44610-0DC60 |
| 44696 | One-way valve seal | 90016-AT003 |
| 44727A | Air hose No. 2 | 17342-0Y130 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20080 · 44730-30060 · 44730-60070 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-0D310 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44771 | Vacuum tube connector hose | 44771-0D200 |
| 44771A | Clip (for vacuum tube connector hose) | 90467-16014 |
| 44771D | Vacuum tube connector hose | 44771-0D210 |
| 44772 | Hoses (check valve to connector tube) | 44772-0D580 · 44772-0D590 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44774B | Hoses (joints to connector tubes) | 44774-0D220 |
| 44774C | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44781 | hose holder | 44781-0D150 |
| 44783 | Vacuum hose clamp | 44783-0D020 · 44783-0D030 |
| 44785 | brake booster pad | 44785-16020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0D030 |
| 89420H | Vacuum sensor assembly | 89421-52020 |
| 89420K | Vacuum sensor seal | 90016-AT003 |
