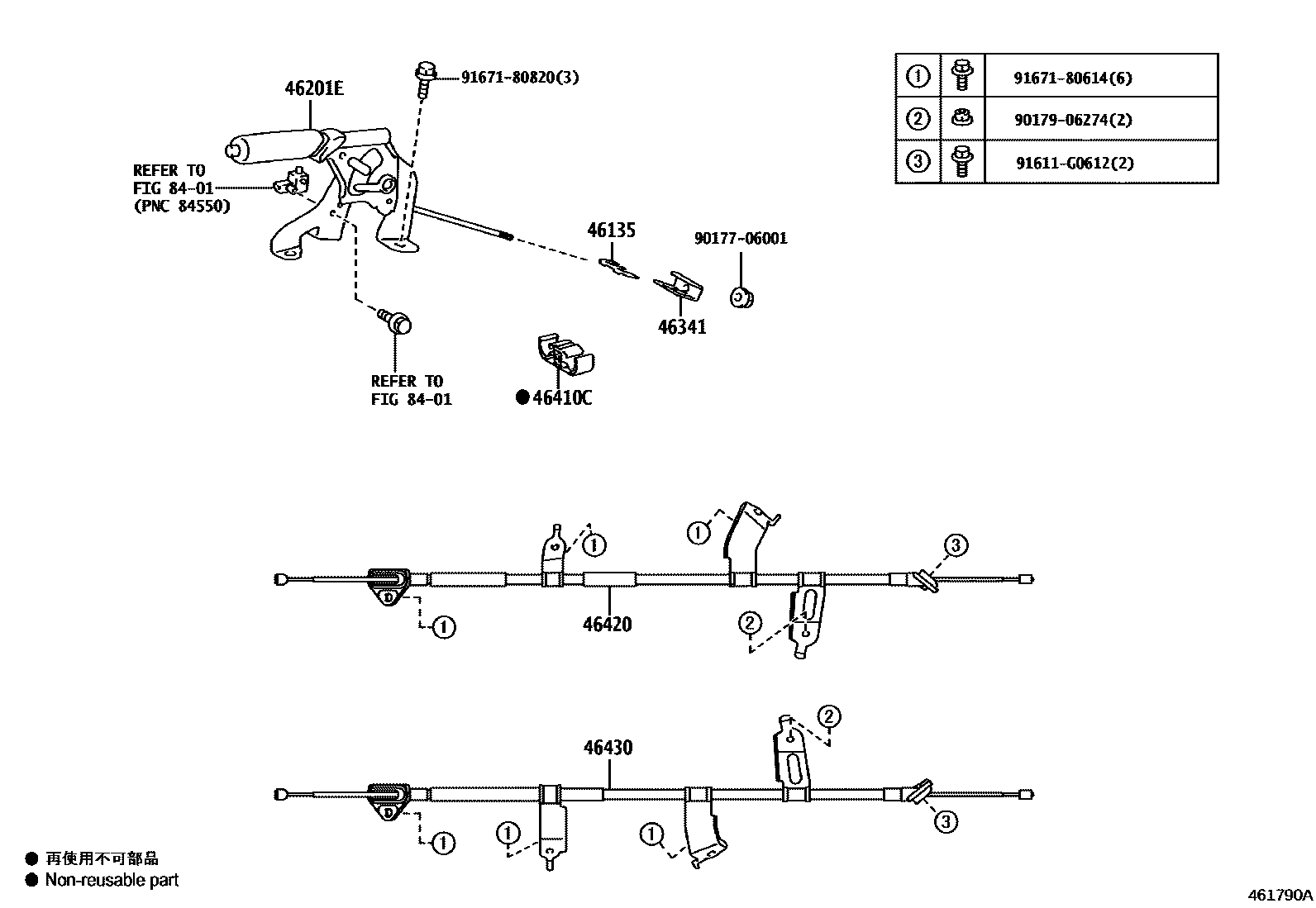

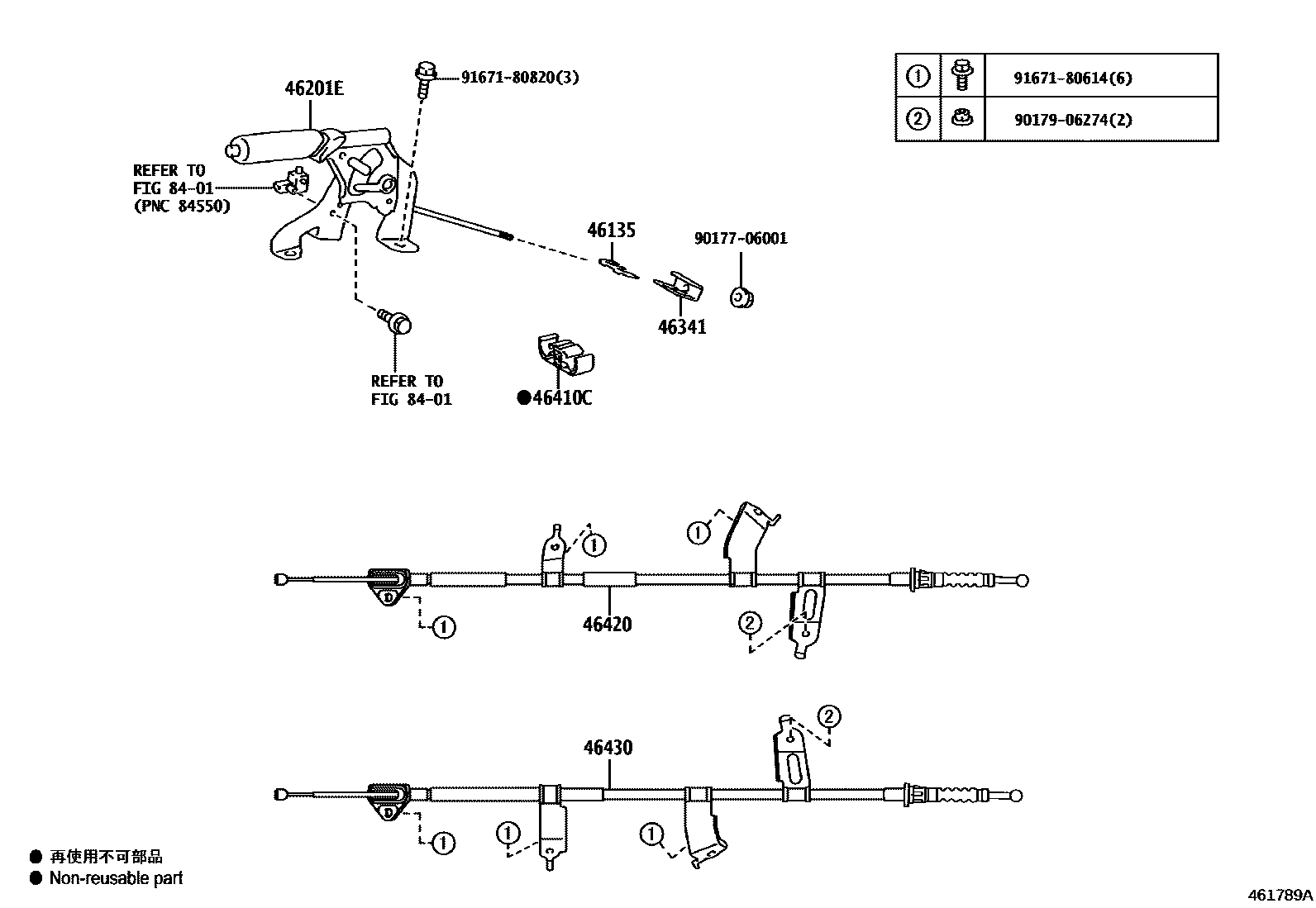

Toyota YARIS Parking Brake & Cable — Figure 4601
Toyota YARIS EPC diagram 4601, Parking Brake & Cable, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46135 | Parking brake cable end stop | 46135-0D040 |
| 46341 | Parking brake balancer | 46341-0D080 |
| 46410C | Clip (for front parking brake cable) | 46411-0D030 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0D290 · 46420-0D300 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0D290 · 46430-0D300 |
