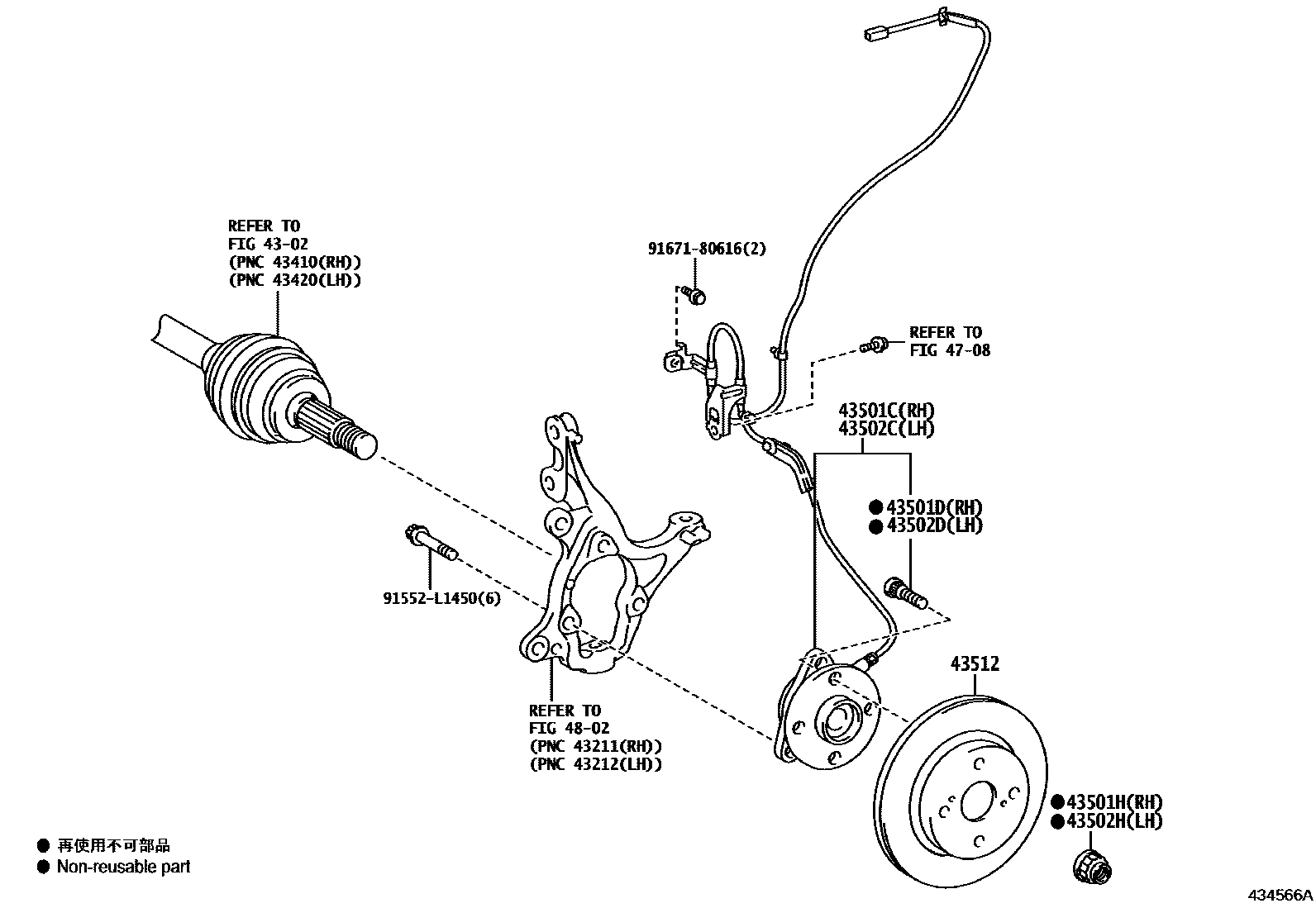

Toyota YARIS Front Axle Hub — Figure 4303
Toyota YARIS EPC diagram 4303, Front Axle Hub, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43501C | Right front axle hub sub-assembly | 43550-0D060 |
| 43501D | Hub bolt (for right front axle) | 90942-02049 |
| 43501H | Nut (for front axle right half shaft) | 90177-22001 · 90177-T0017 |
| 43502C | Left front axle wheel hub sub-assembly | 43560-0D060 |
| 43502D | Hub bolt (for left front axle) | 90942-02049 |
| 43502H | Nut (for front axle left half shaft) | 90177-22001 · 90177-T0017 |
| 43512 | front brake disc | 43512-0D080 · 43512-0D180 |
