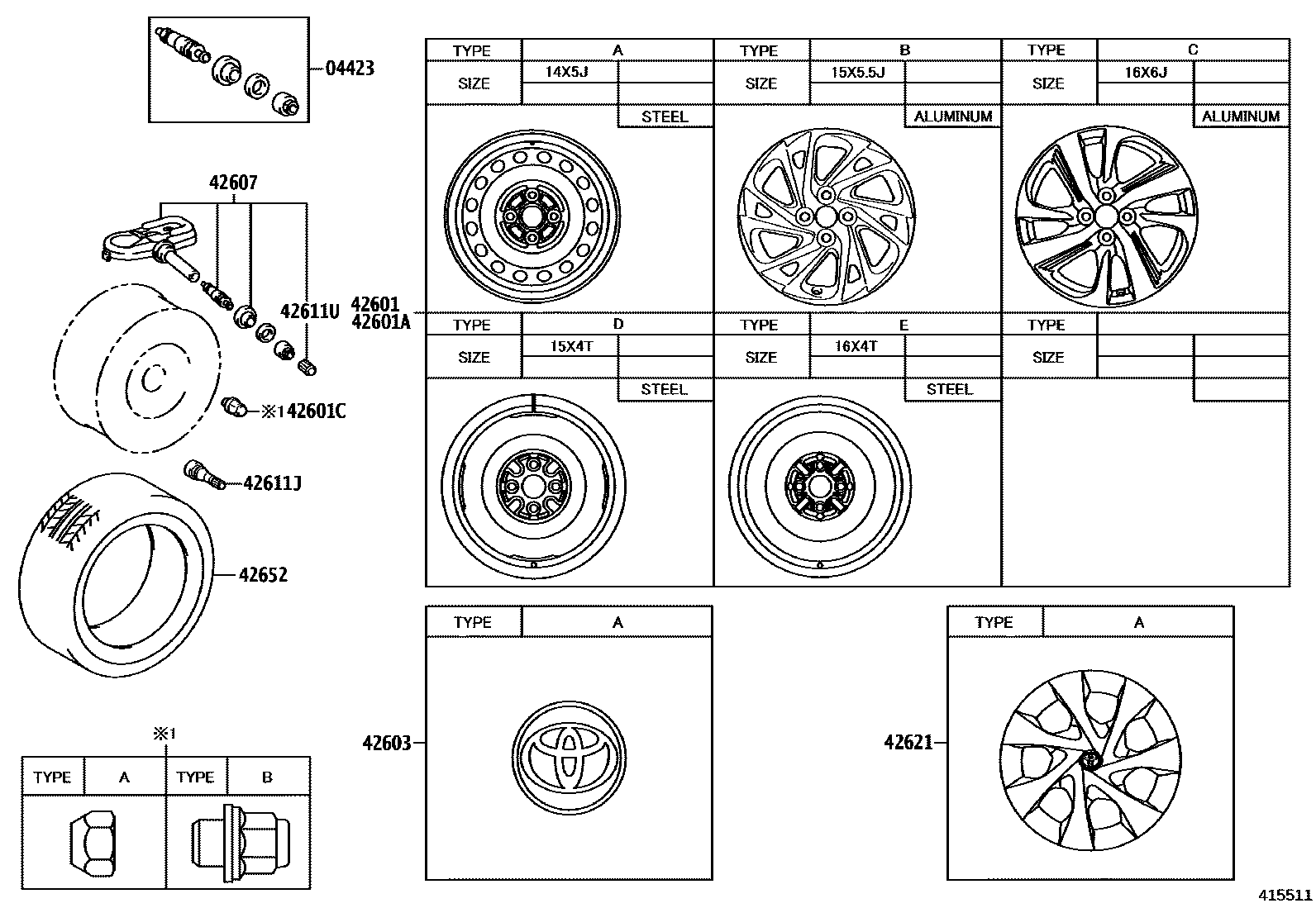

Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 42601 | spoke wheel | 42611-0D701 · 42611-0DF60 · 42611-0DM50 |
| 42601A | Spoke wheel (for spare tire) | 42611-02280 · 42611-02690 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-52170 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-52020 · 42607-52050 |
| 42611J | Valve (for tubeless spare tire) | 90083-45001 |
| 42611U | tire valve cover | 90942-05039 |
| 42621 | wheel cover | 42602-0D390 |
| 42652 | tires | 42652-0DE70 |
