Toyota YARIS 变矩器、前油泵(CVT) — Figure 3402

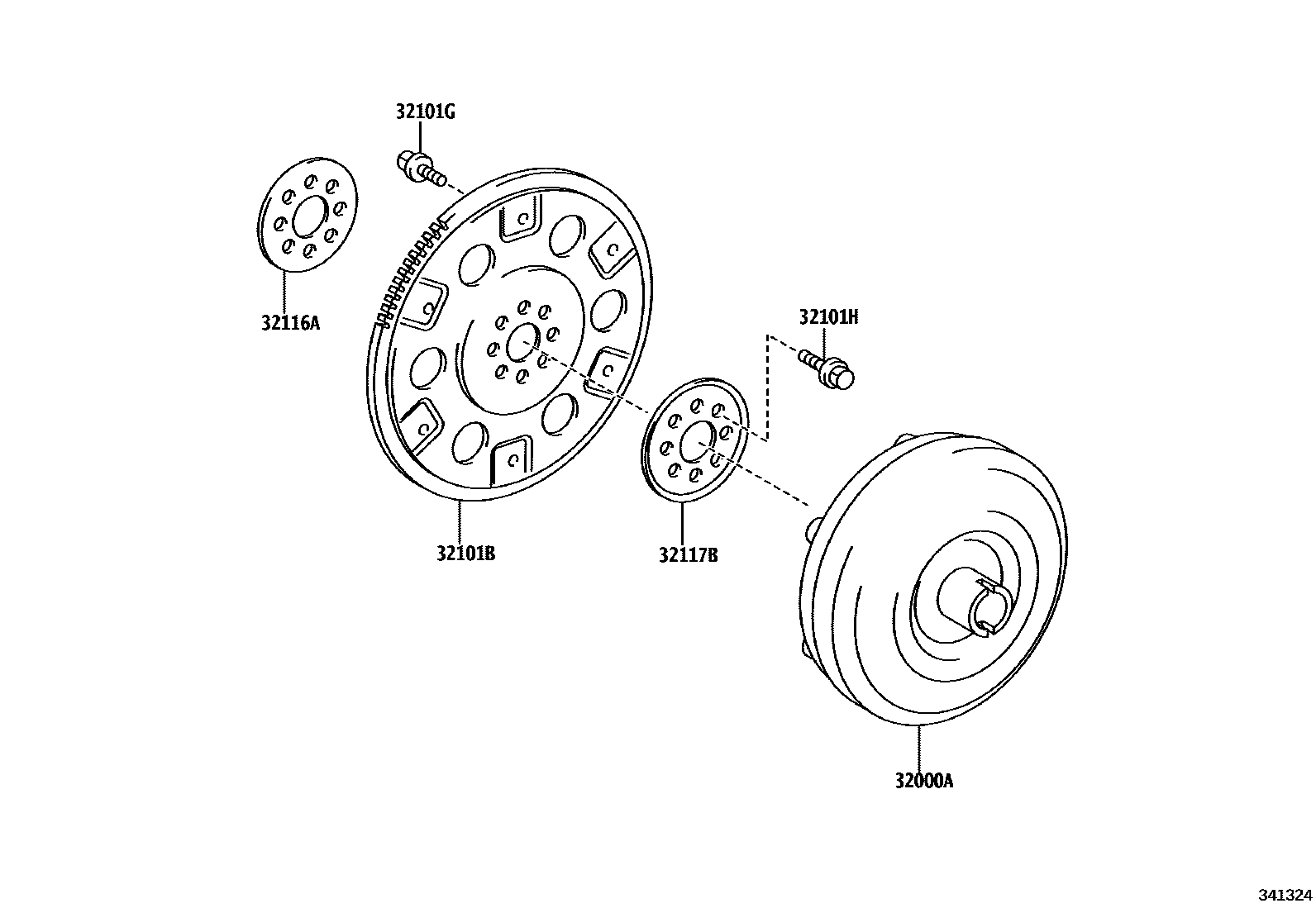

Toyota YARIS EPC diagram 3402, 变矩器、前油泵(CVT), with 1 images and 6 PNC and OE references.

Toyota YARIS 变矩器、前油泵(CVT) EPC diagram — 341324
变矩器、前油泵(CVT) — 341324 (202101 – 999999)

PNC and OE references

PNCPart nameOE numbers
32000ATorque converter assembly32000-52201
32101BTransmission plate and ring gear sub-assembly32101-0D040 · 32111-52110
32101GBolts (for securing transmission plate and torque converter)90109-08113 · 90119-08498
32101HHexagonal bolts (used to fix the transmission plate)90105-10048
32116AFront transmission plate spacer32116-12030
32117BRear transmission plate spacer32117-12040
