Toyota YARIS Alternator — Figure 1903

Toyota YARIS EPC diagram 1903, Alternator, with 1 images and 18 PNC and OE references.

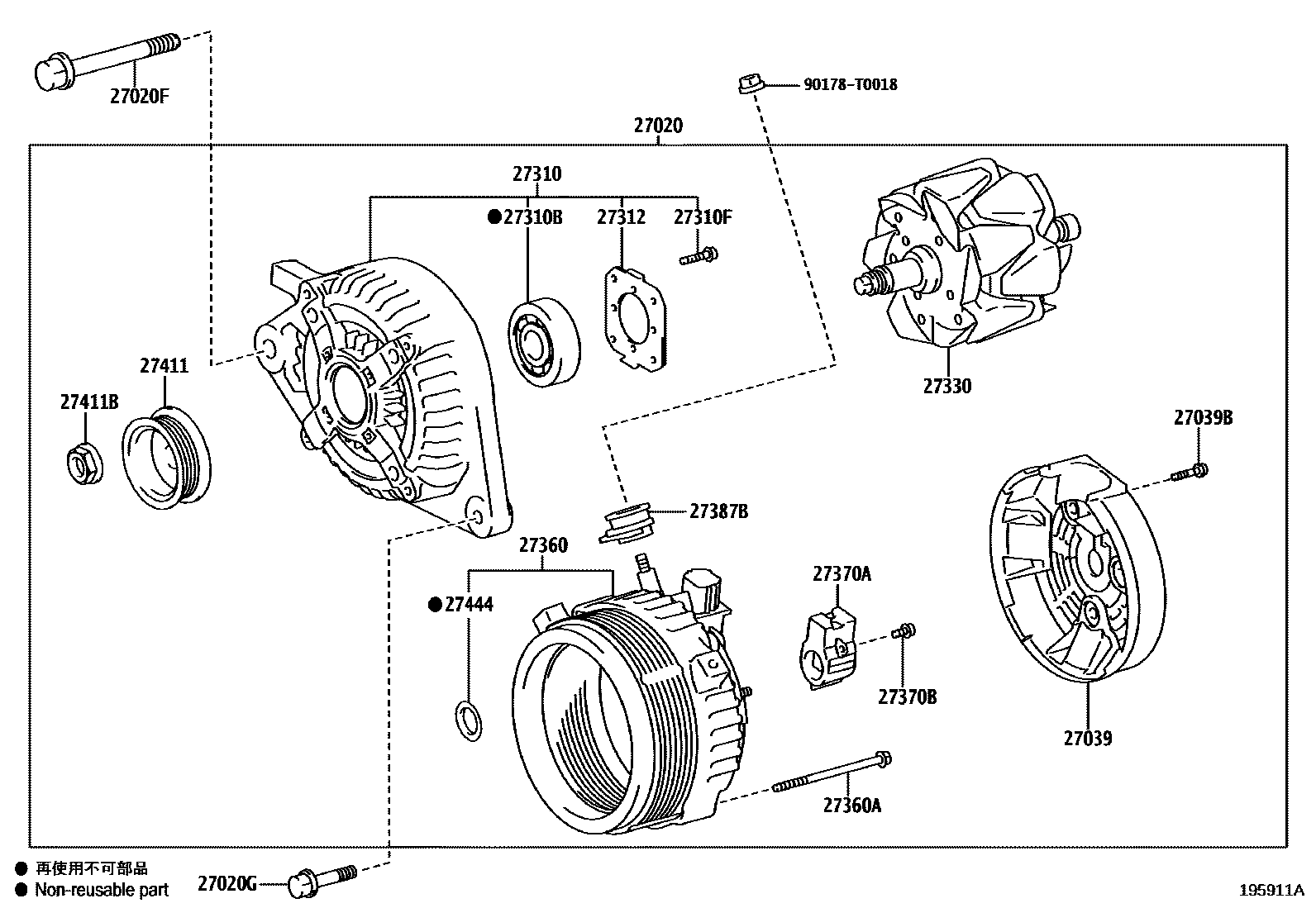

Toyota YARIS Alternator EPC diagram — 195911A
Alternator — 195911A (202101 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-0Y330
27020FBolt No. 1 (for generator)90105-T0172
27020GBolt No. 2 (for generator)90105-T0130
27039Alternator Rear End Cover27039-0Y180
27039BBolts (for generator rear end cover)90099-04628
27310Alternator Drive End Frame Assembly27310-0Y180
27310BBearing (for Alternator Drive End Frame)90068-10040
27310FScrews (for generator drive end cover)90099-00268
27312Retainer Plate27312-0M070
27330Alternator Rotor Assembly27330-0Y180
27360Alternator Stator Coil Assembly27360-0Y270
27360ABolt (for generator coil)90099-04626
27370AAlternator Brush Holder Assembly27370-0T030
27370BScrews (for generator brush holder)90099-00197
27387BGenerator terminal insulation pad27387-0H110
27411Alternator Pulley27411-0Y180
27411BNut (for generator pulley)90099-05171
27444Generator bearing cap seals27444-0Y180
