Toyota YARIS Engine Oil Pump — Figure 1501

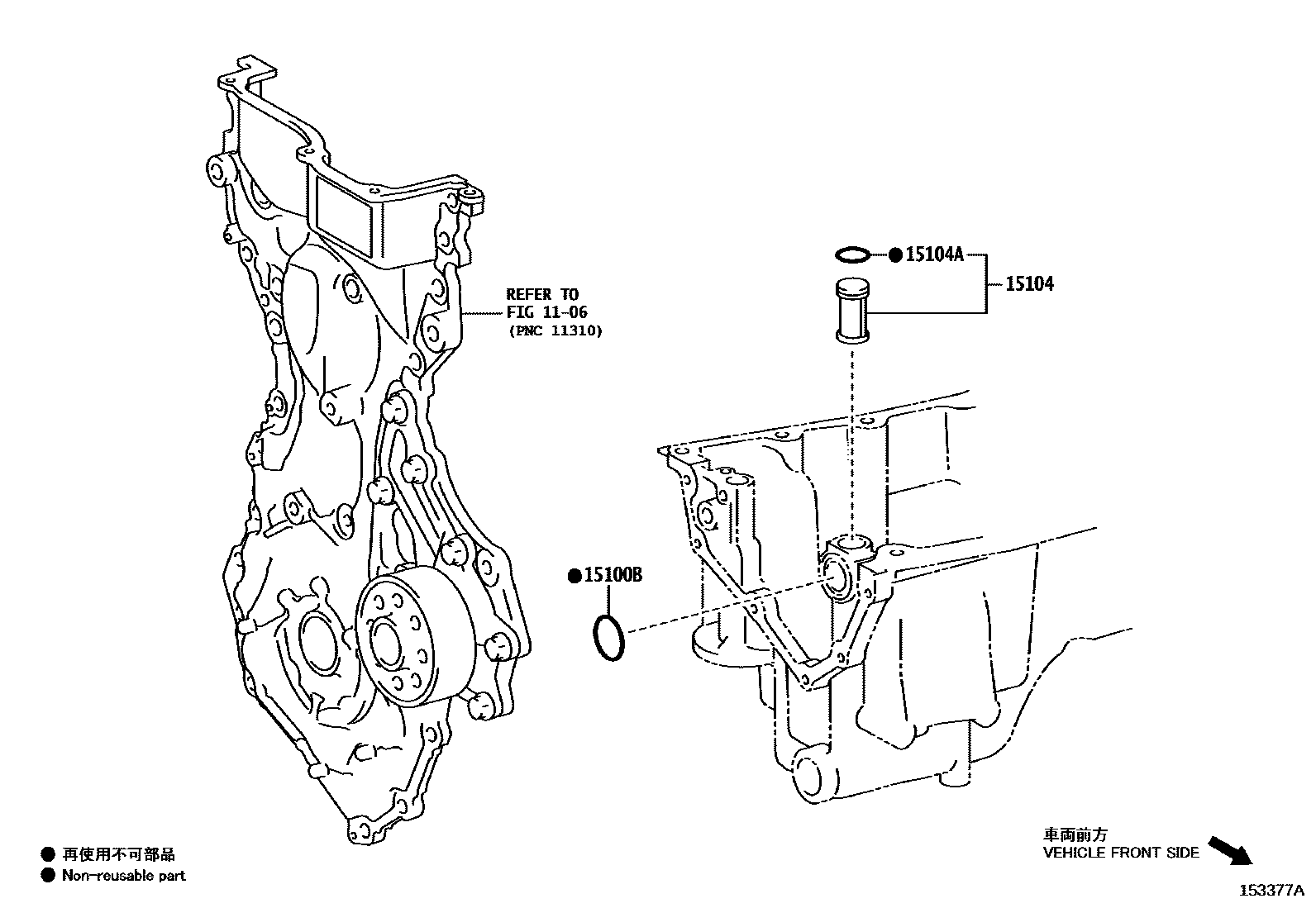

Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100B | O-ring (for oil pump) | 90301-T0059 |
| 15104 | Oil filter sub-assembly | 15104-0Y010 |
| 15104A | O-ring (for oil filter) | 90301-T0061 |
