Toyota YARIS Crankshaft & Piston — Figure 1301

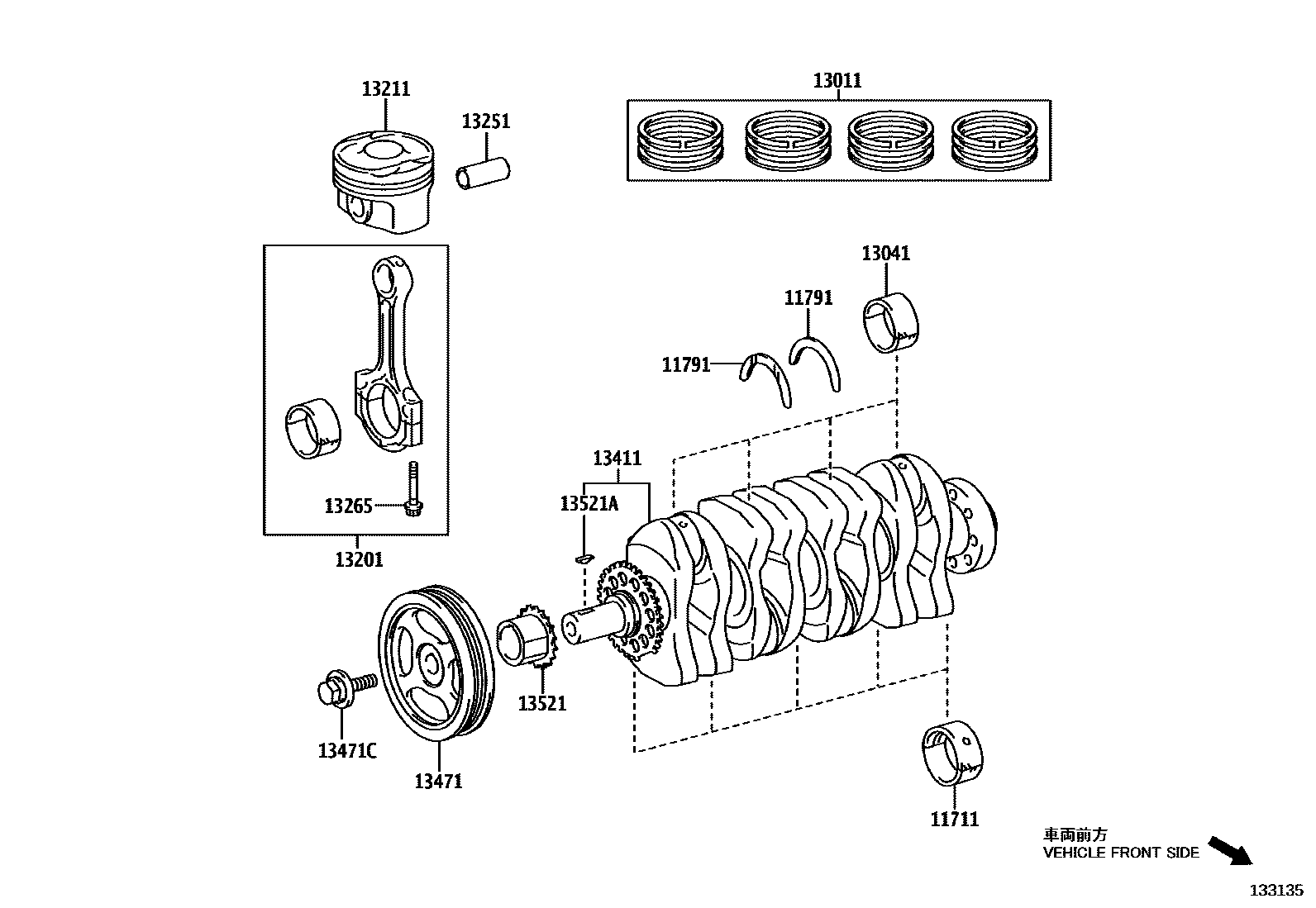

Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0Y040 |
| 13011 | Piston ring assembly | 13011-0Y030 |
| 13201 | Connecting rod sub-assembly | 13201-09C20 |
| 13211 | piston | 13211-0Y061 |
| 13251 | Piston pin | 13251-0Y030 |
| 13265 | Connecting rod bolts | 13265-0Y020 · 13265-21020 |
| 13411 | crankshaft | 13401-0Y140 |
| 13471 | crankshaft pulley | 13470-0Y020 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-T0444 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0Y040 |
| 13521A | Key (for crankshaft timing gear) | 90280-04001 |
