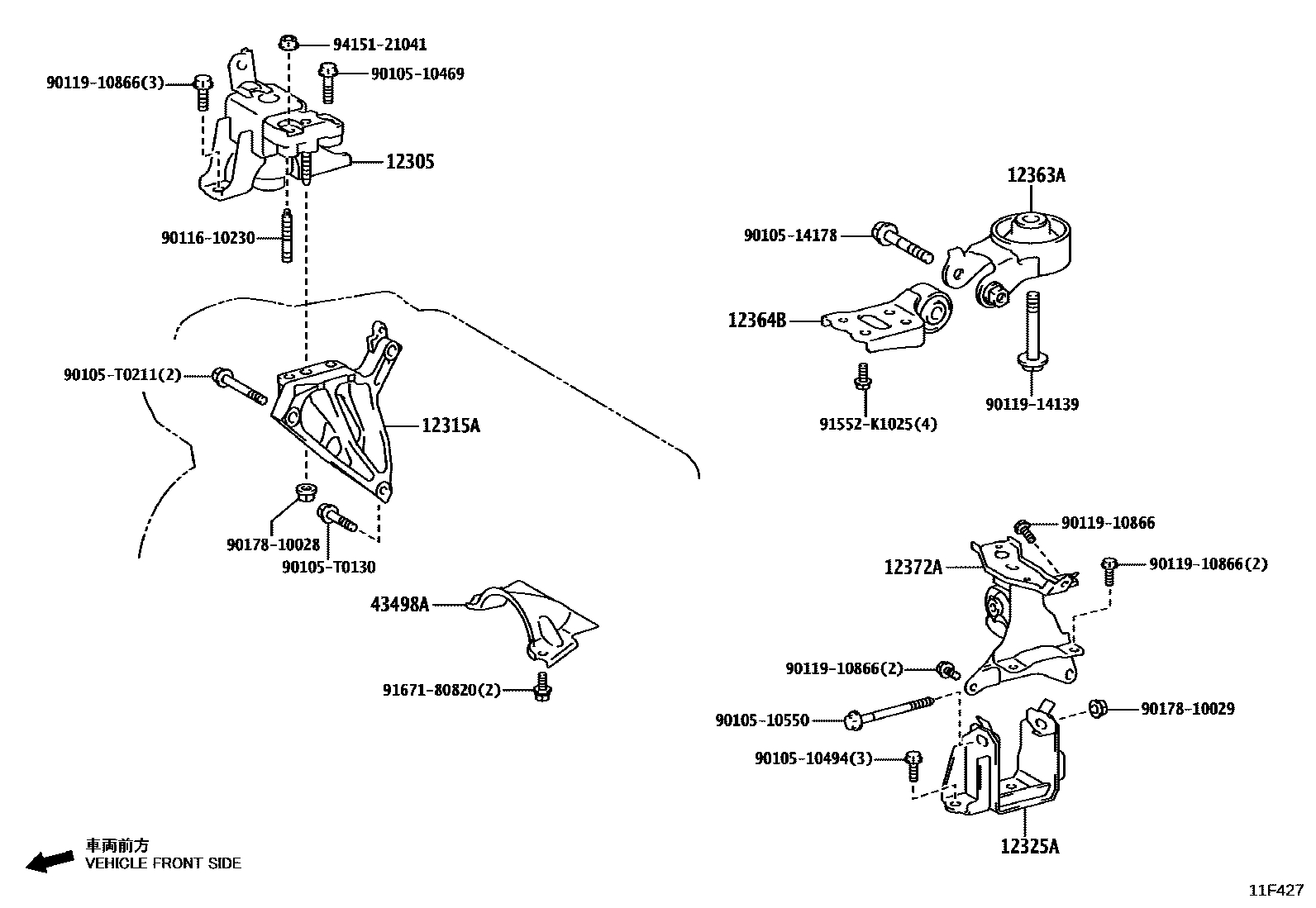

Toyota YARIS Engine Mounting — Figure 1107
Toyota YARIS EPC diagram 1107, Engine Mounting, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0Y060 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0Y010 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0Y430 |
| 12363A | Engine movement control lever | 12363-0Y120 |
| 12364B | Engine No. 2 motion control lever | 12364-0Y130 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0Y360 |
| 43498A | No. 1 drive shaft insulation pad | 43498-52130 |
