Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 4 PNC and OE references.

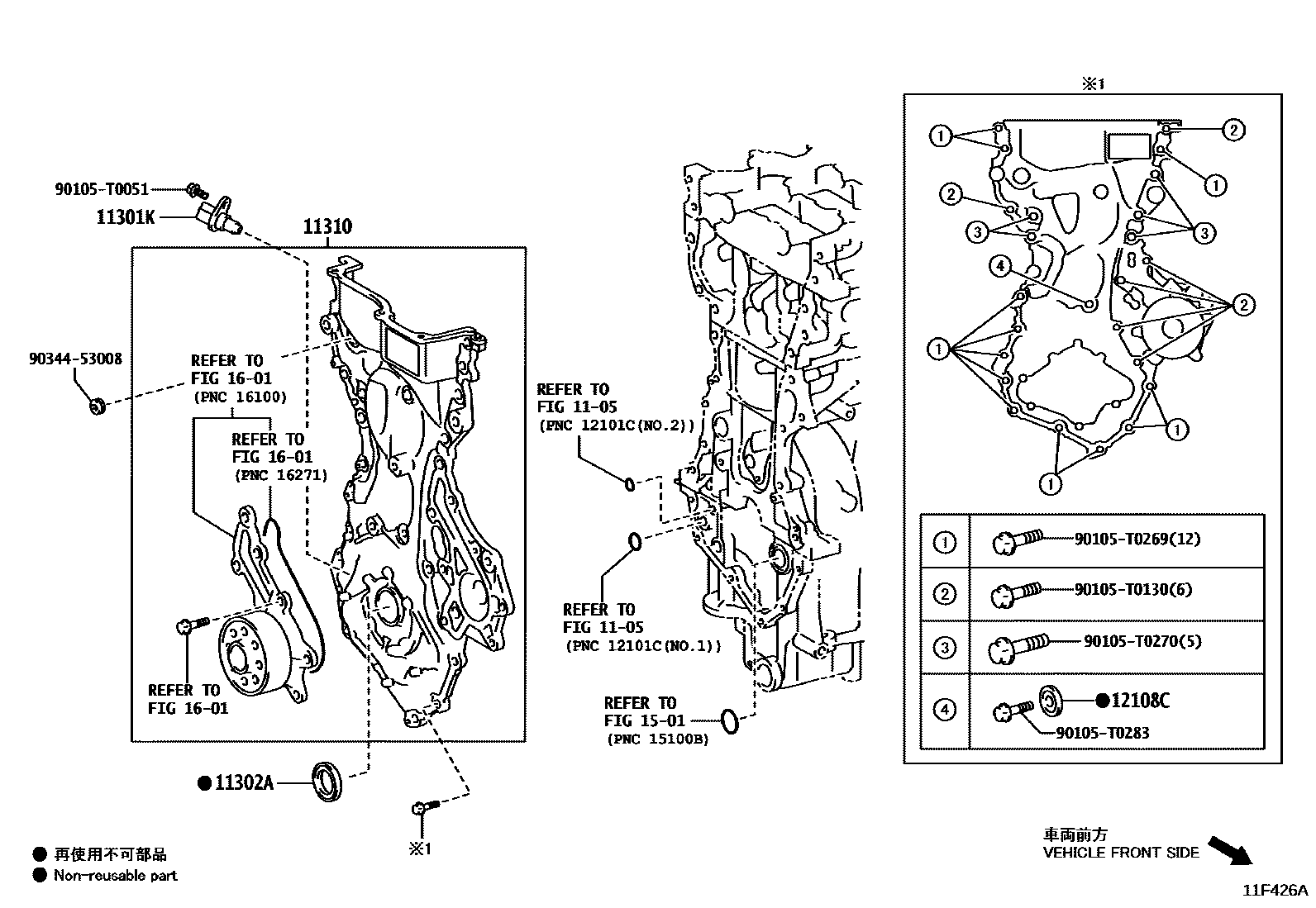

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11F426A
Timing Gear Cover & Rear End Plate — 11F426A (202101 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-T5001
11302AOil seal (for timing chain or timing belt cover)90311-T0076
11310Timing chain cover assembly11310-0Y040
12108Cpadding16258-0Y010
