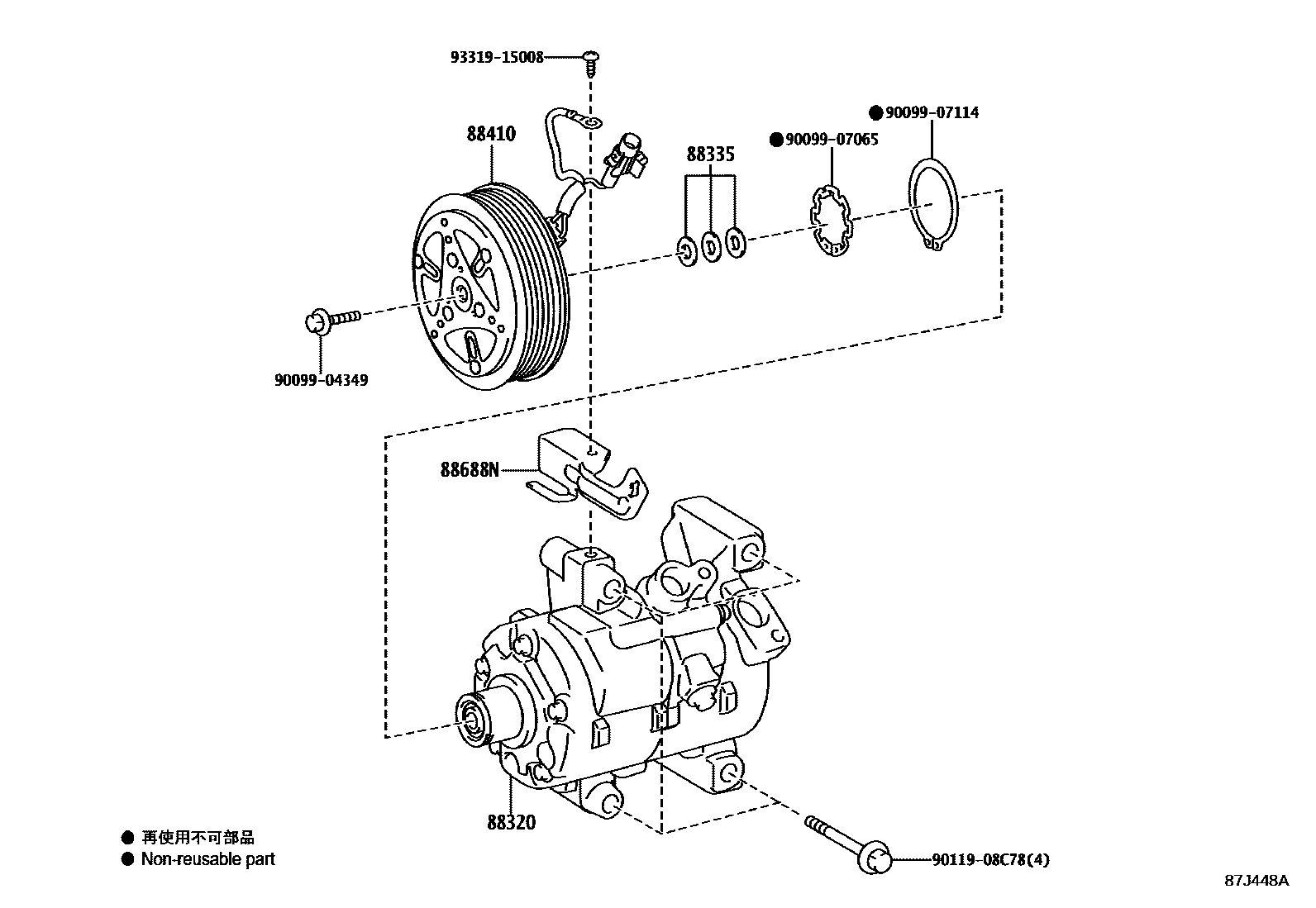

Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719
Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88320 | Cooler Compressor Assembly | 88320-0D140 |
| 88335 | Overhaul gasket assembly | 88335-30420 |
| 88410 | Magnetic Clutch Assembly | 88410-0D440 |
| 88688N | cooler bracket | 88849-0D070 |
