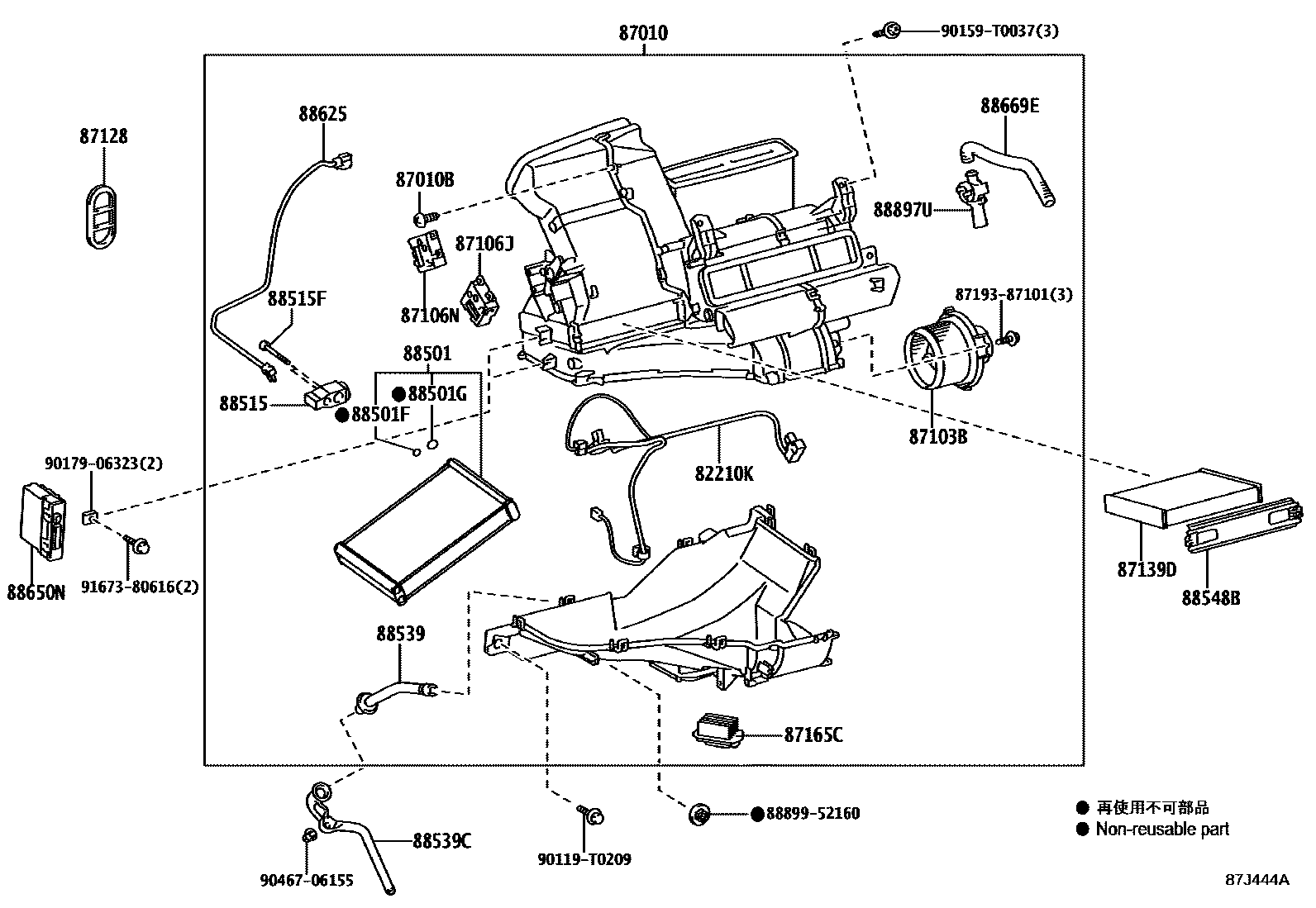

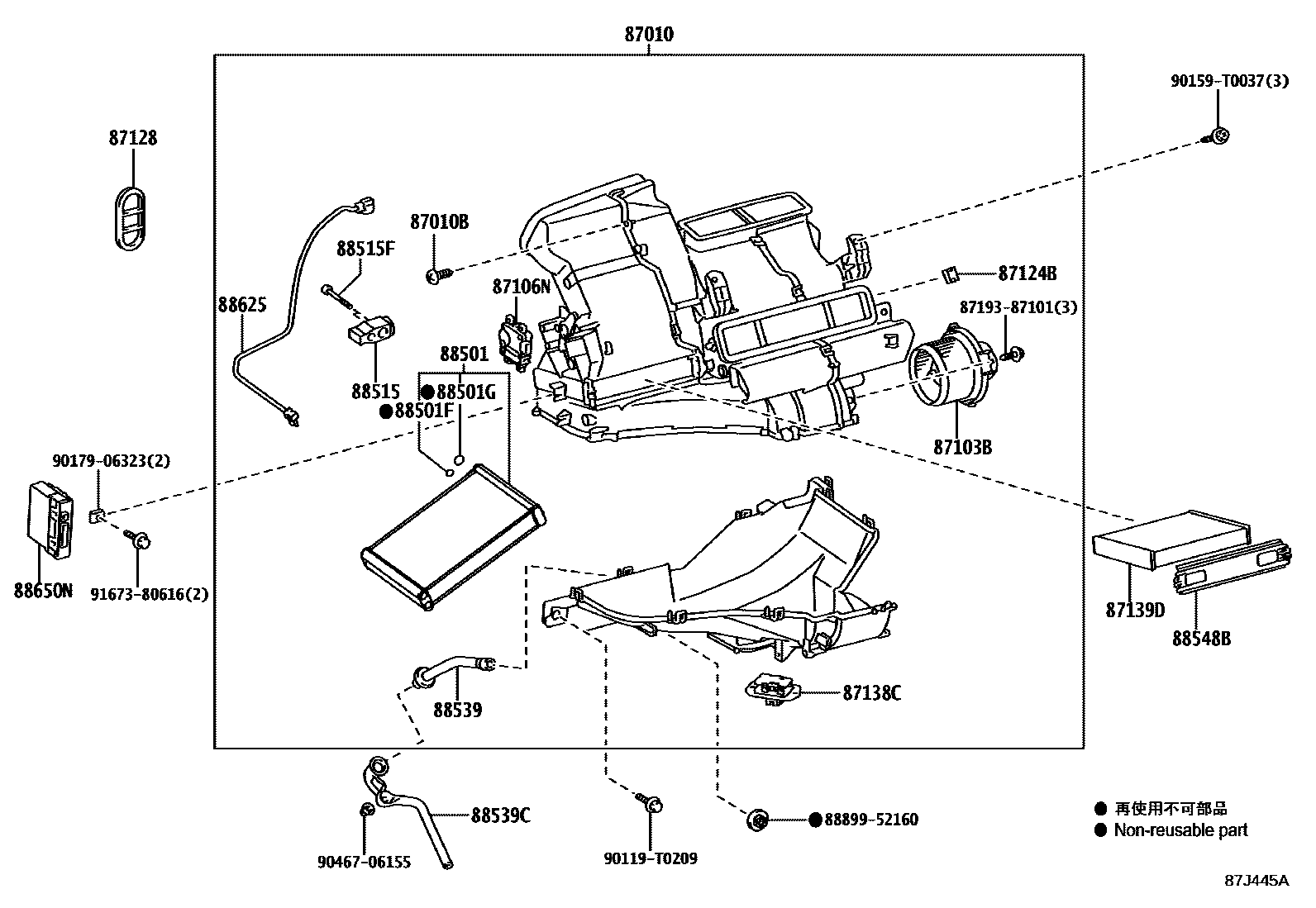

Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0D010 |
| 87010 | Air conditioning unit assembly | 87010-0DK50 · 87010-0DQ60 |
| 87010B | Screws (for air conditioning unit) | 90099-00968 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D310 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-0D530 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-0D540 · 87106-0D550 |
| 87124B | heater clip | 87124-0D170 |
| 87128 | heater seal | 87128-0D110 |
| 87138C | Blower resistor | 87138-0D340 |
| 87139D | Air fine filter element | 87139-0D050 · 87139-50100 |
| 87165C | Blower motor control device | 87165-0D180 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D530 |
| 88501F | No. 1 cooler evaporator O-ring (discharge) | 90099-14120 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88515 | Cooler expansion valve | 88515-0D610 |
| 88515F | Bolt (for cooler expansion valve) | 90099-04630 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-0D310 |
| 88539C | No. 2 cooler unit drain hose | 88539-0D360 |
| 88548B | air filter housing | 88548-0D180 |
| 88625 | Cooler No. 1 Thermistor | 88620-0D070 · 88620-0D140 |
| 88650N | Air conditioning amplifier assembly | 88650-0D770 · 88650-0D820 |
| 88669E | air hose | 87233-0D200 |
| 88897U | aspirator tube | 88897-0D110 |
