Toyota YARIS antenna — Figure 8604

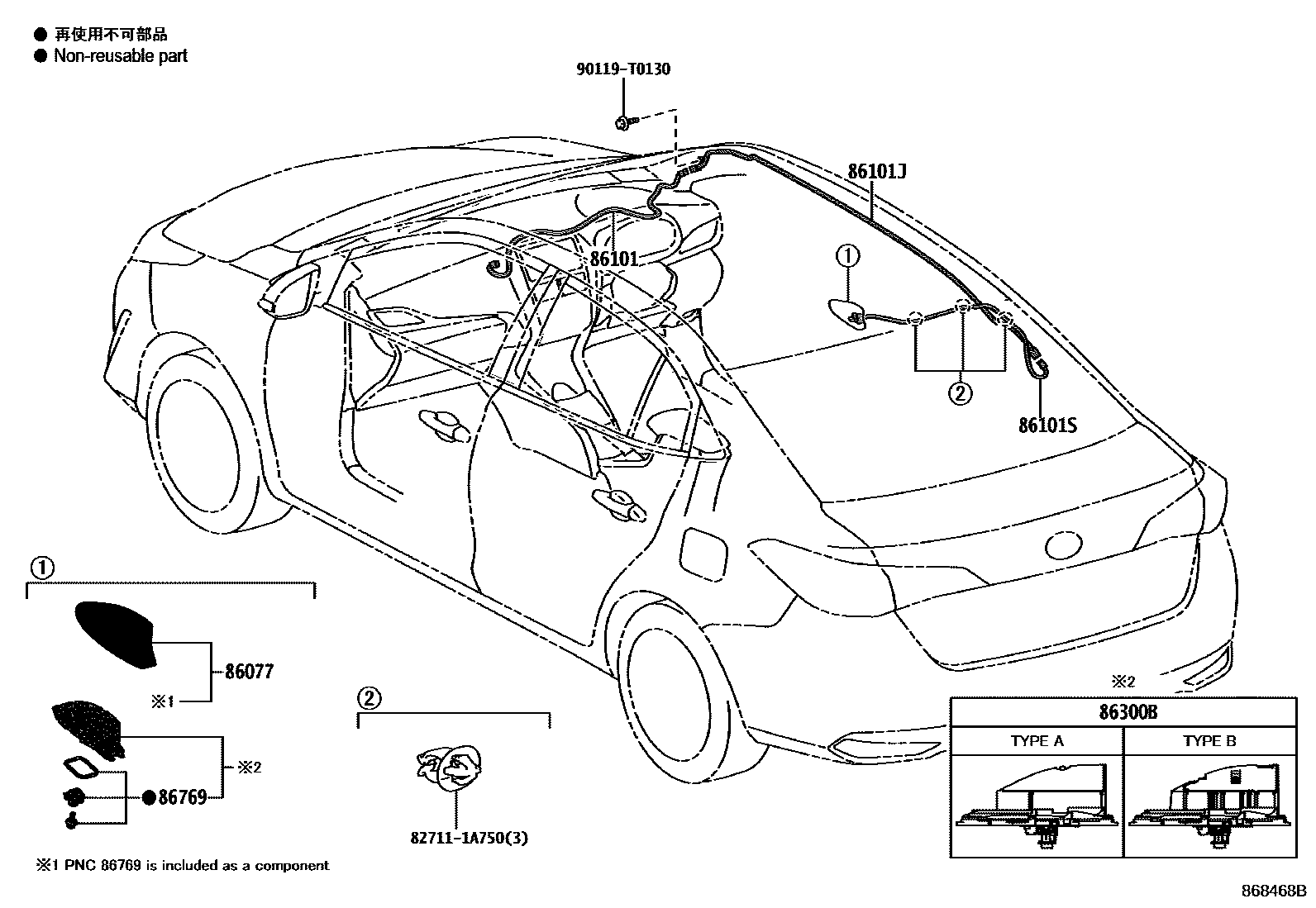

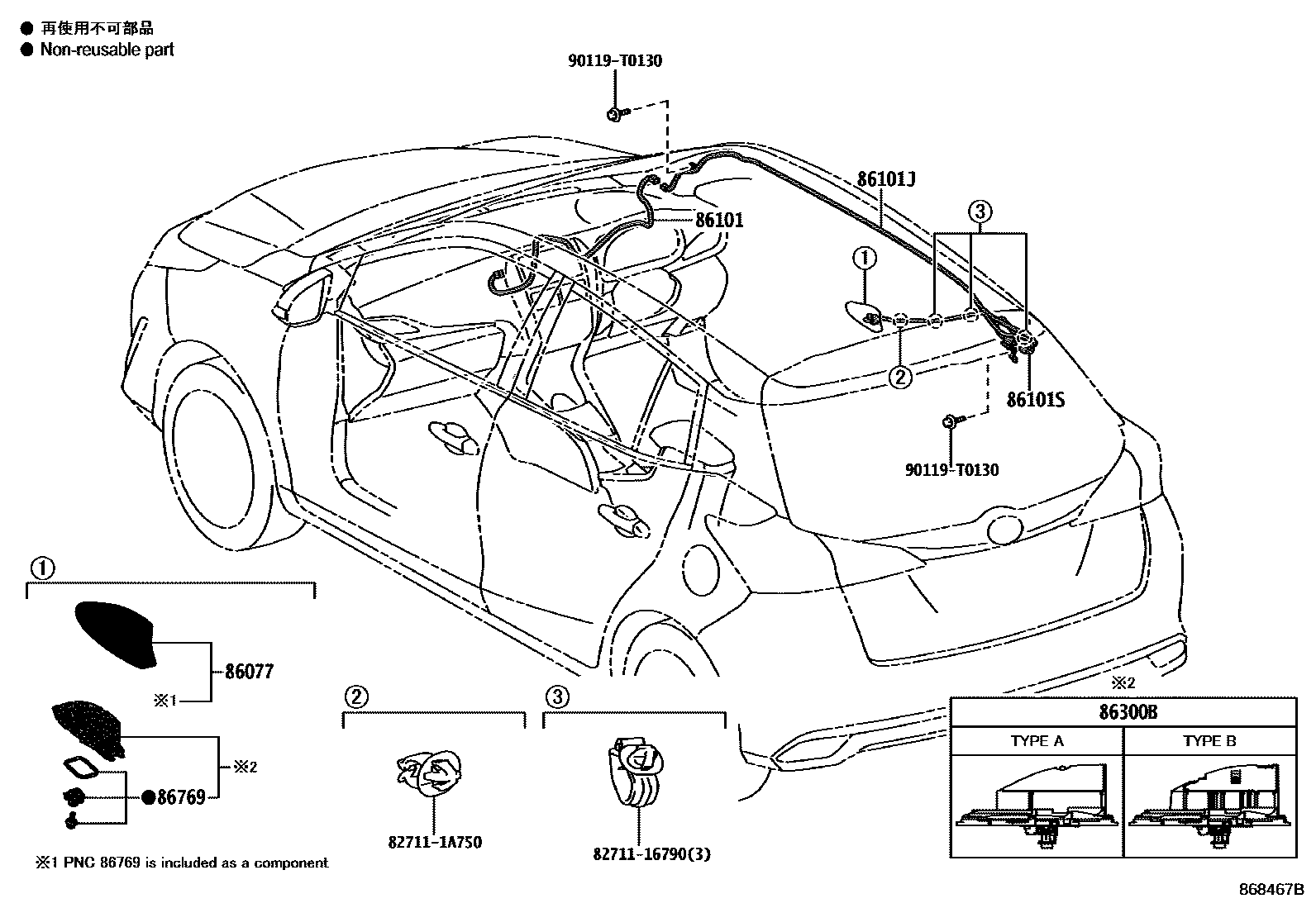

Toyota YARIS EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0DA70 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-0D890 · 86101-0DA00 |
| 86101S | Antenna wire sub-assembly | 86101-0DA80 · 86101-0DA90 |
| 86300B | No. 1 amplifier antenna assembly | 86300-0D480 · 86300-0D481 |
| 86769 | roof radome | 86769-0K020 |
