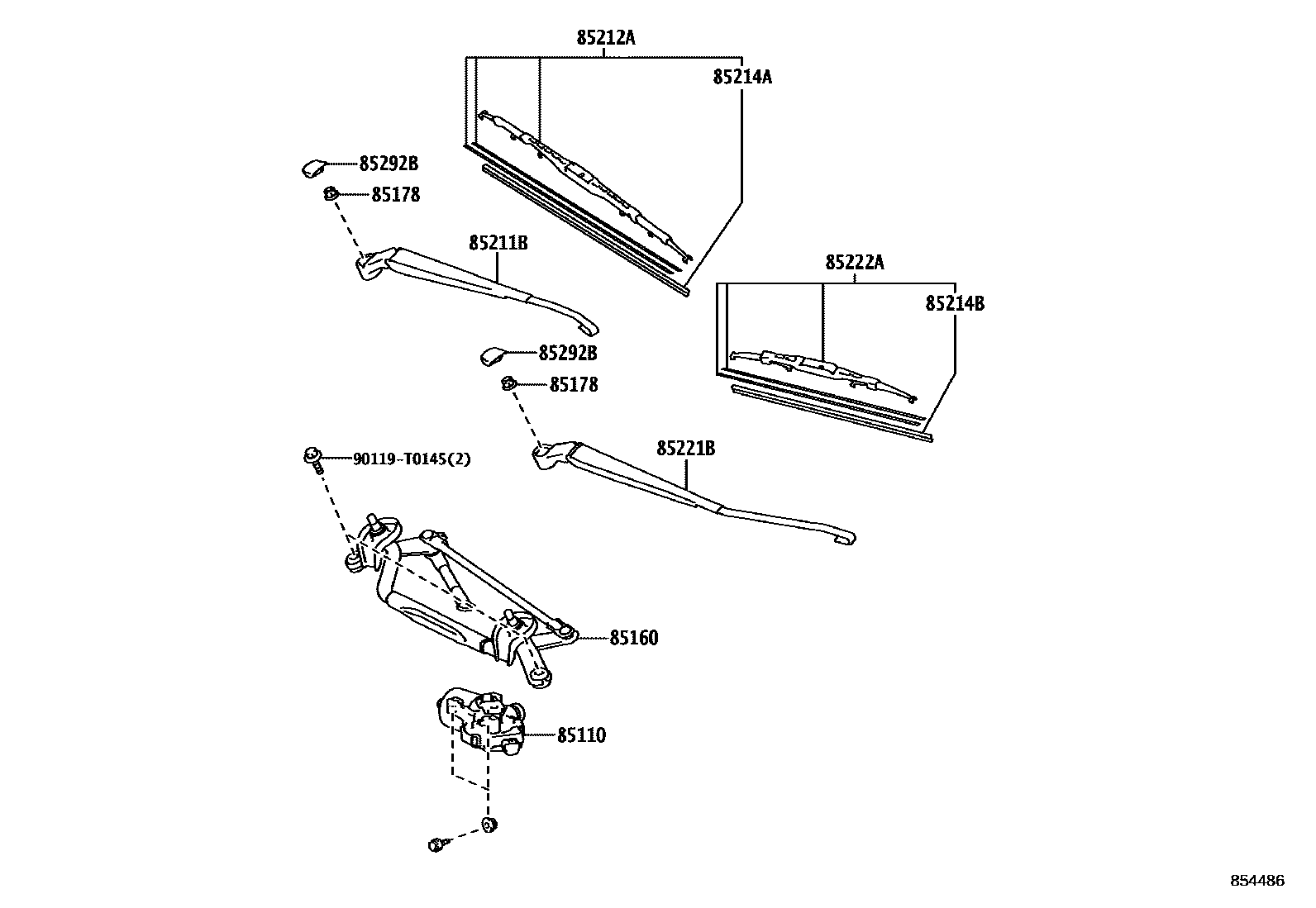

Toyota YARIS 挡风玻璃刮水器 — Figure 8501
Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-0D340 |
| 85160 | Windshield wiper connecting rod assembly | 85150-0D210 |
| 85178 | Nut (for securing front wiper arm) | 90182-T0029 |
| 85211B | Right front wiper arm | 85211-0D210 |
| 85212A | Right front wiper blade | 85212-0D070 |
| 85214A | Right wiper rubber strip | 85214-02180 |
| 85214B | Left wiper rubber strip | 85214-0D121 |
| 85221B | Left front wiper arm | 85221-0D190 |
| 85222A | Left front wiper blade | 85222-0D071 |
| 85292B | Front wiper arm cap | 85292-0D030 |
