Toyota YARIS 测距雷达和倒车雷达 — Figure 8417

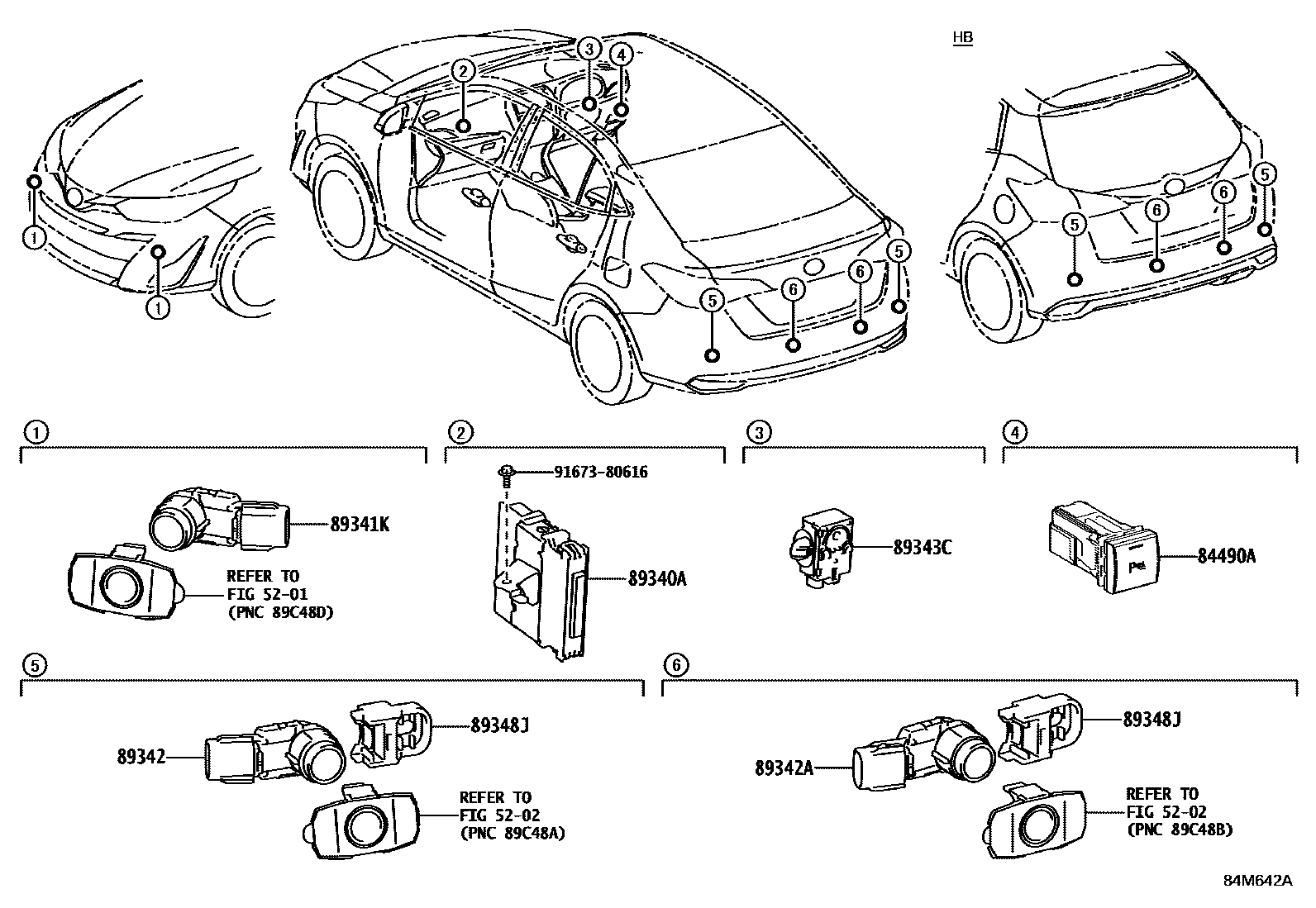

Toyota YARIS EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84490A | Reversing radar or ranging radar switch assembly | 84490-0D090 |
| 89340A | Distance warning ECU assembly | 89340-0D020 · 89340-0D040 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
| 89348J | Ultrasonic sensor clip | 89348-33190 |
