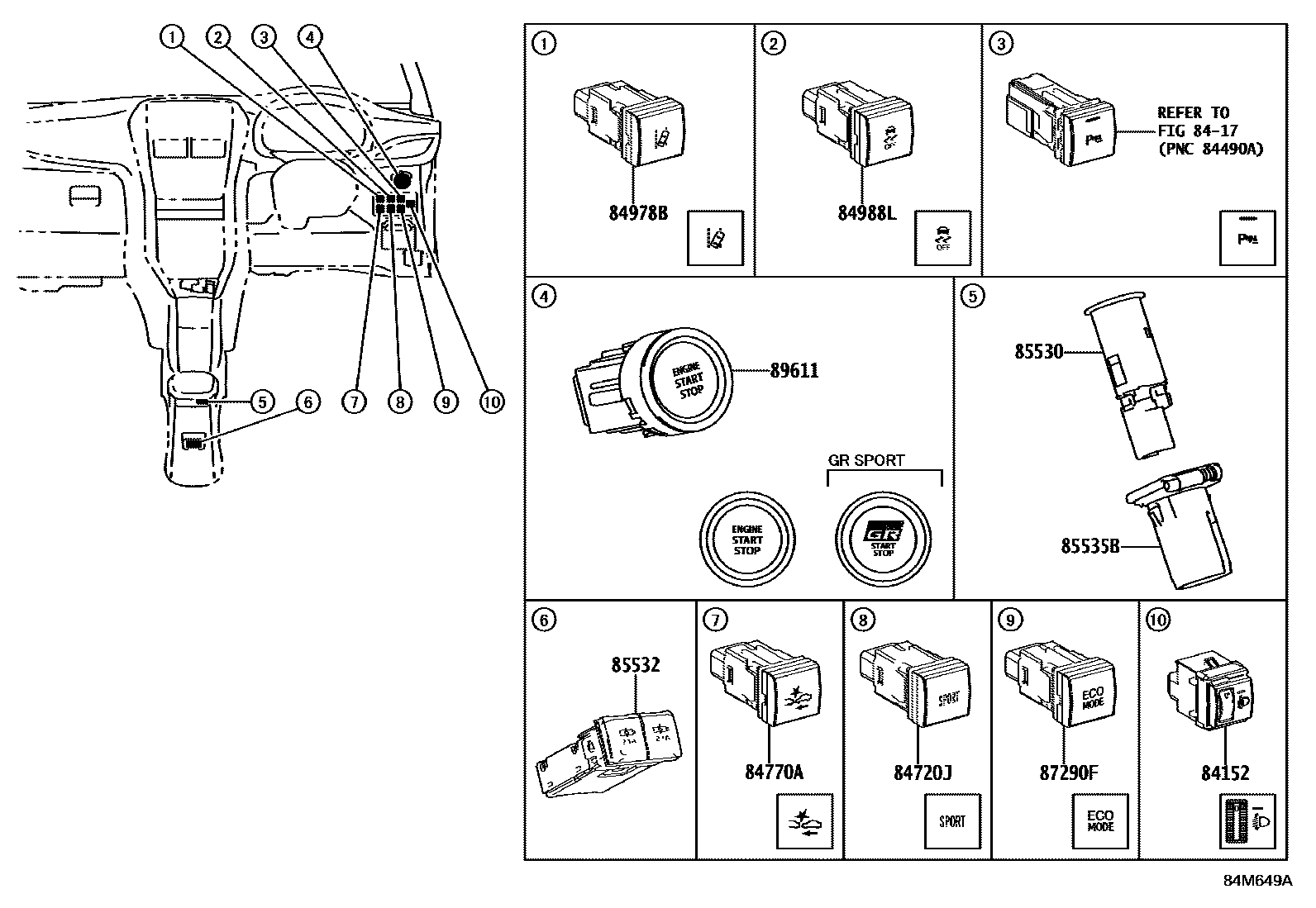

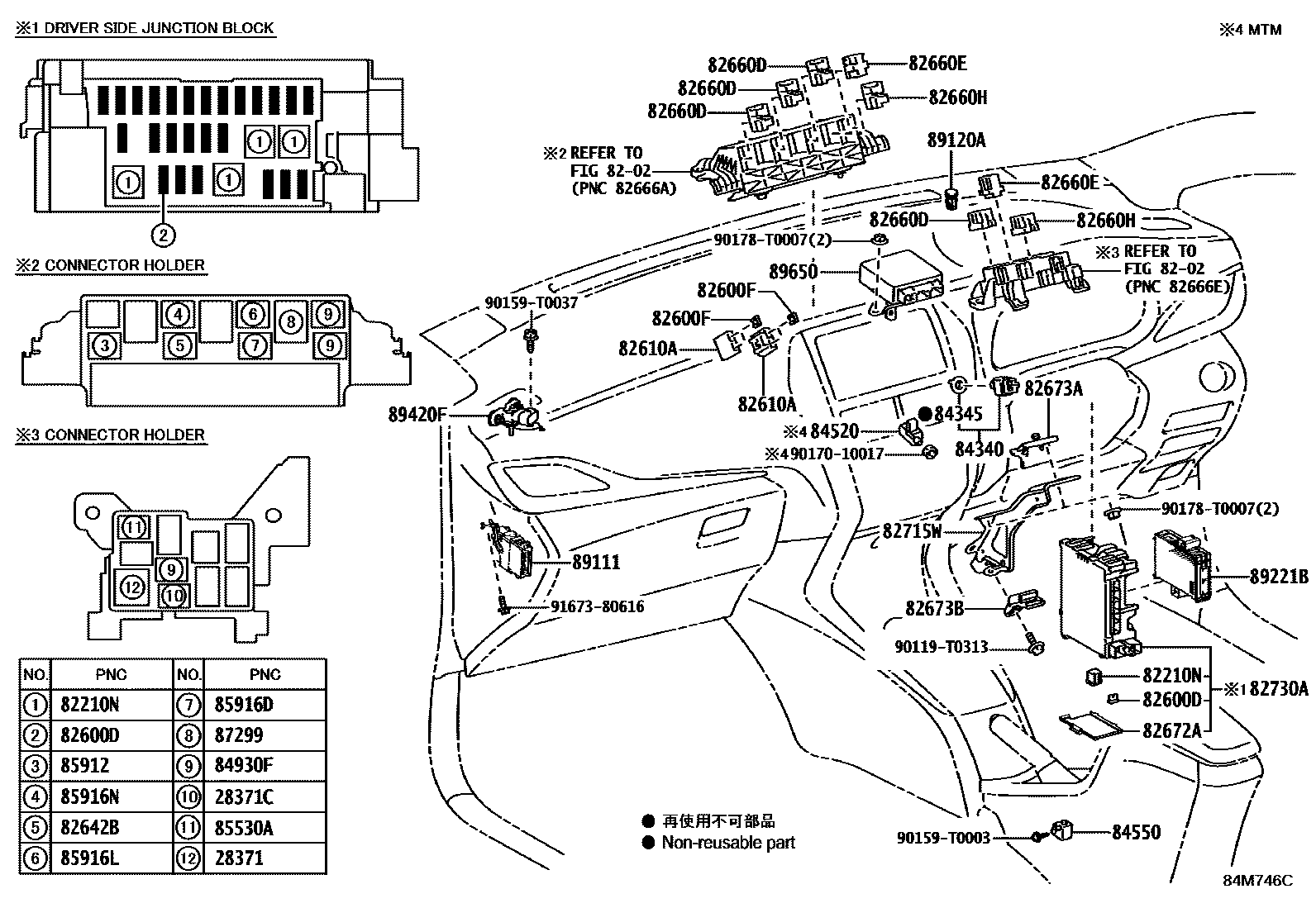

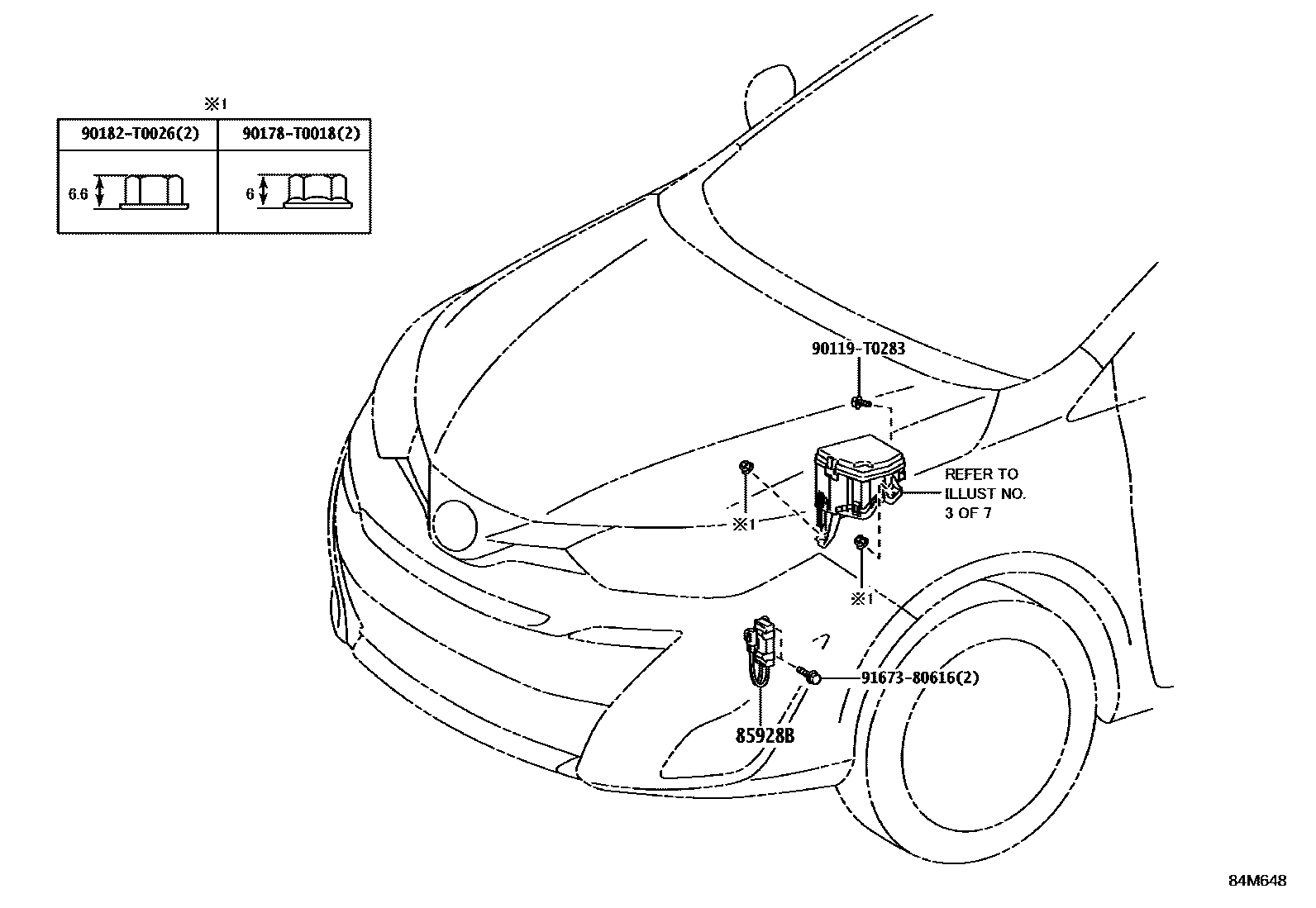

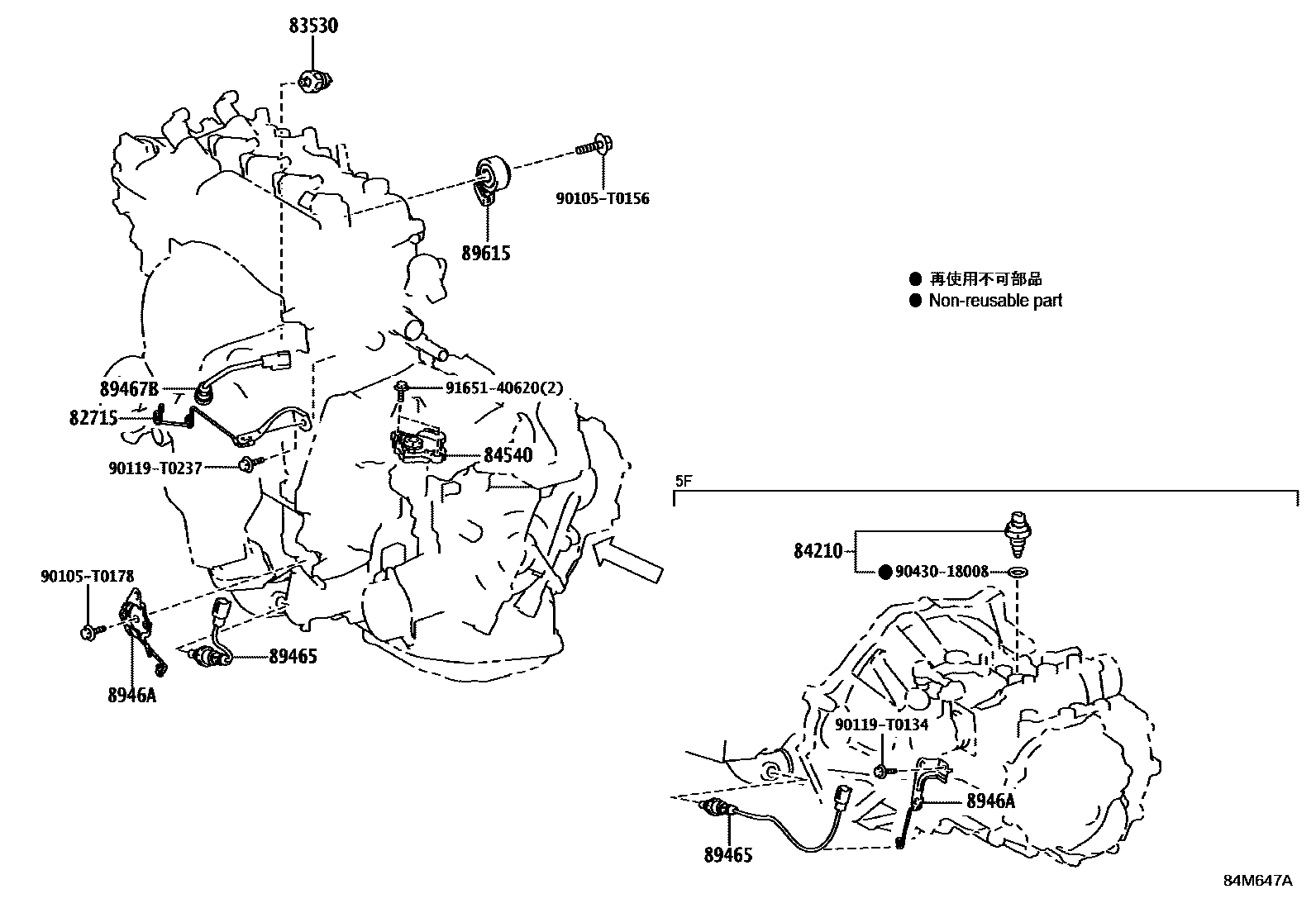

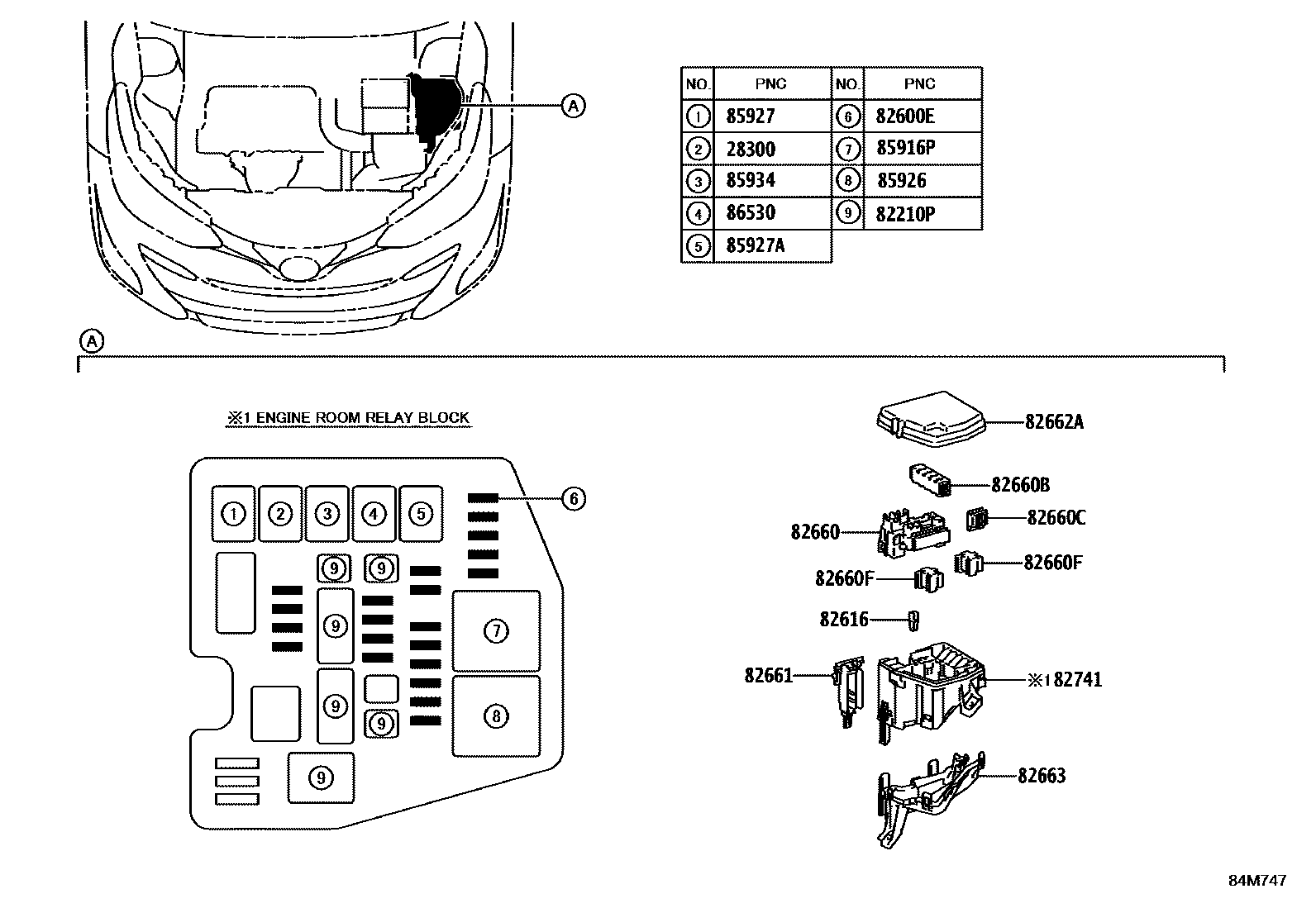

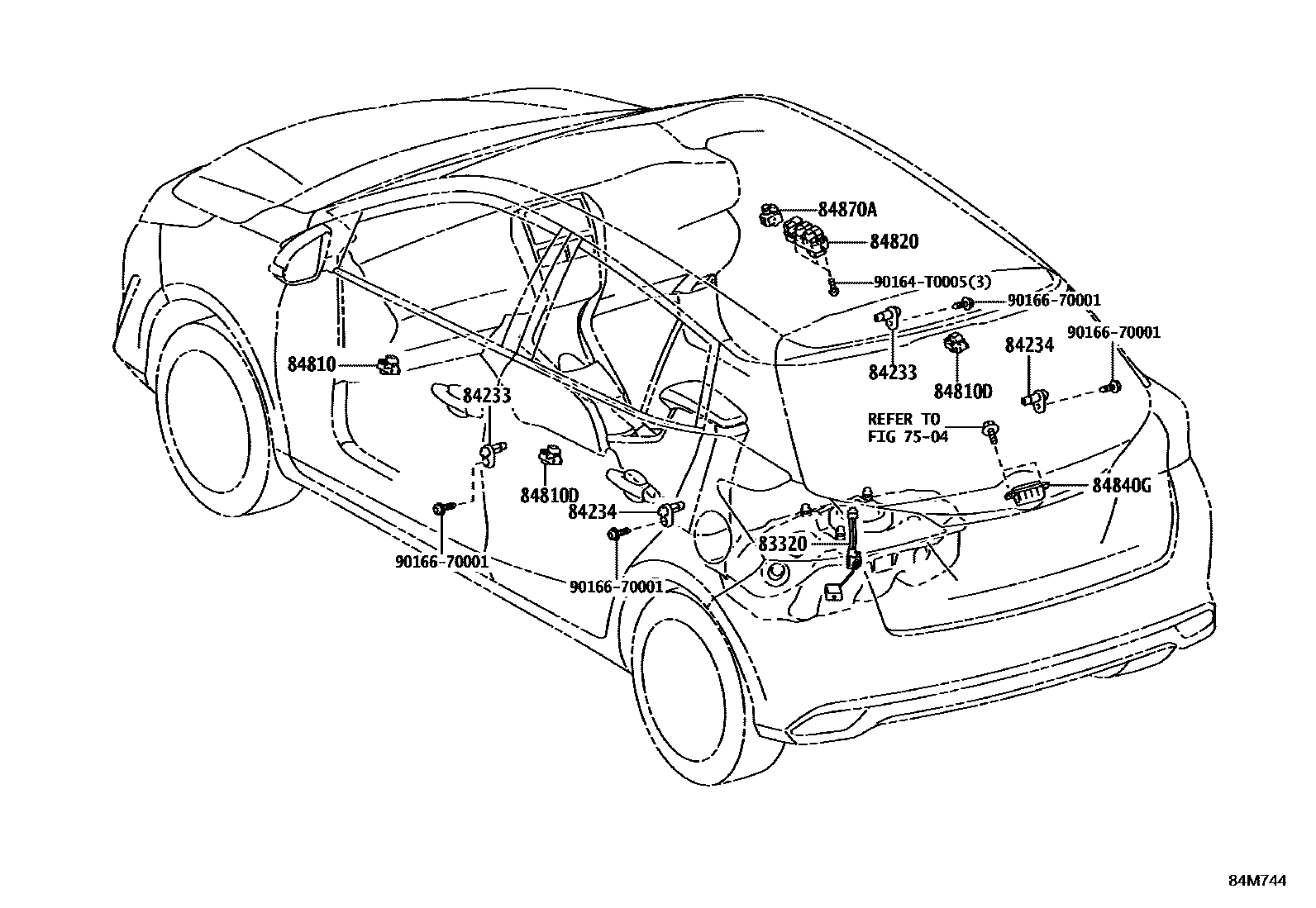

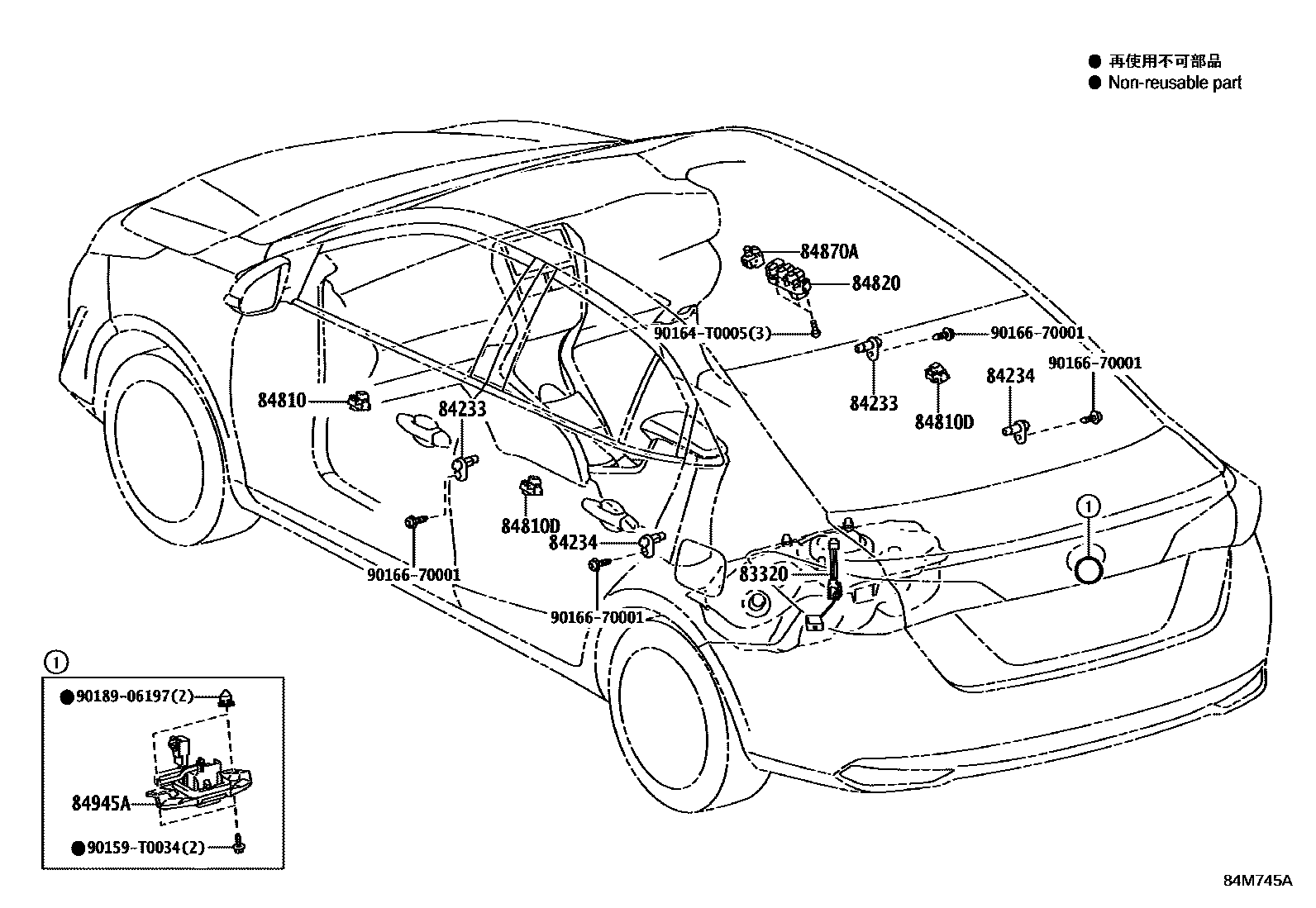

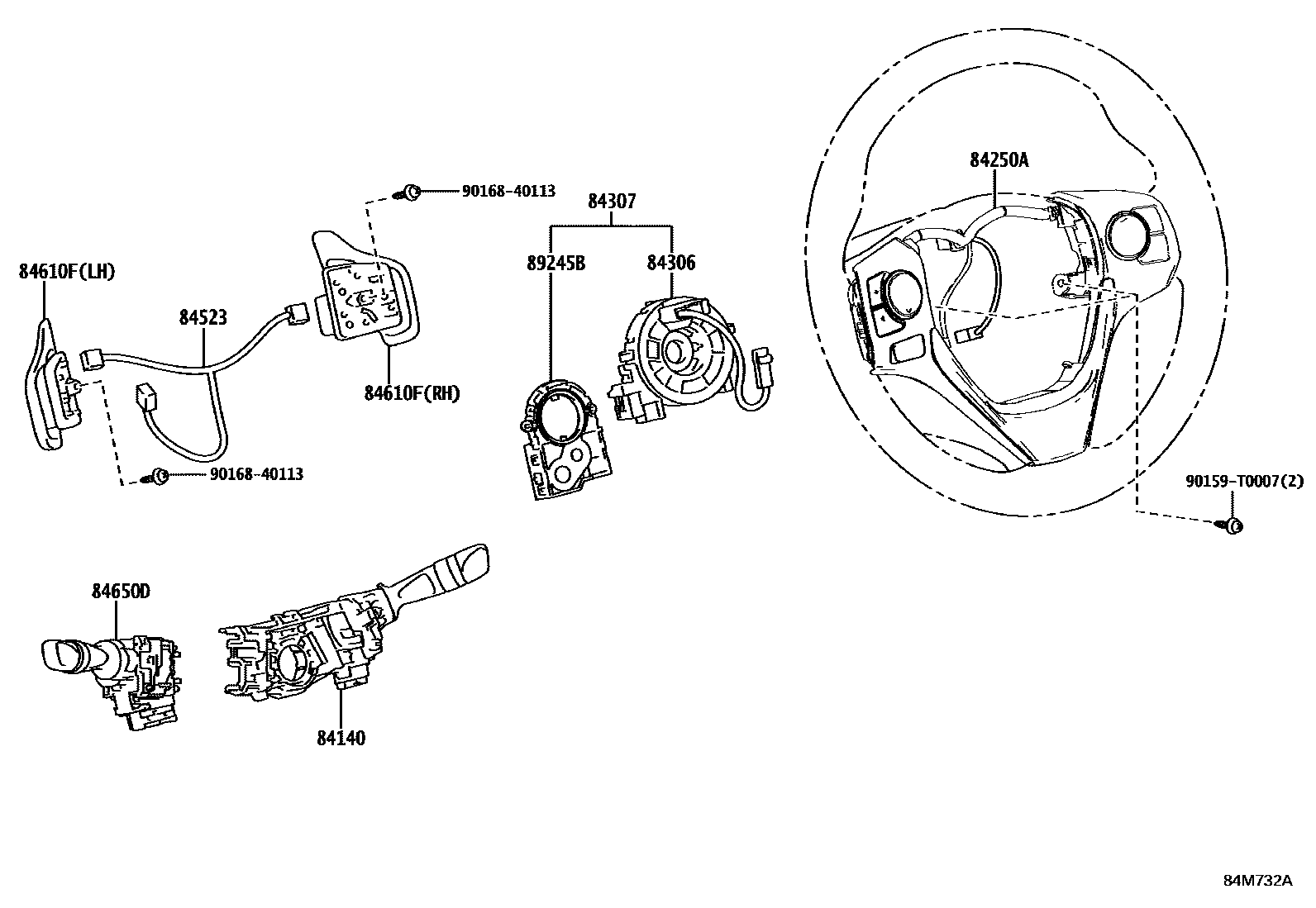

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 8 images and 84 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0L011 |
| 28371 | No. 1 ignition relay | 90987-T2009 |
| 28371C | No. 2 ignition relay | 90987-T2001 |
| 82210N | Instrument panel fuse | 90982-08295 |
| 82210P | Engine room fuse | 90982-08274 · 90982-08295 · 90982-08296 · 90982-08300 · 90982-08302 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 |
| 82610A | Fuse box assembly | 82610-52010 |
| 82616 | fuse puller | 82616-58010 |
| 82642B | No. 1 daytime running light relay | 90987-T2001 |
| 82660 | Engine room relay box assembly | 82660-0D040 |
| 82660B | Relay assembly | 82660-0D050 |
| 82660C | Relay assembly | 82660-0D060 |
| 82660D | Relay assembly | 82660-48020 |
| 82660E | Relay assembly | 82660-48030 |
| 82660F | Relay assembly | 82660-0H070 |
| 82660H | Relay assembly | 82660-48040 |
| 82661 | No. 1 relay box cover | 82661-52050 |
| 82662A | No. 1 relay box upper cover | 82662-0D620 |
| 82663 | Relay box lower cover | 82663-0D090 |
| 82672A | Junction box cover | 82672-0D030 |
| 82673A | Junction box bracket | 82673-0D390 |
| 82673B | Junction box bracket | 82673-0K020 |
| 82715 | Wire harness clamp bracket | 82715-5C360 |
| 82715W | Wire harness clamp bracket | 82715-0DW50 |
| 82730A | Driver's side junction box assembly | 82730-0DA20 |
| 82741 | Engine room relay box | 82741-0D100 |
| 83320 | Fuel gauge sensor assembly | 83320-0D150 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84140 | Headlight dimmer switch assembly | 84140-0D880 · 84140-0D890 |
| 84152 | Headlight beam height adjustment switch | 84152-0D300 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-02070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02070 |
| 84306 | Spiral cable sub-assembly | 84308-0D010 · 84308-0D020 · 84308-0K010 · 84308-0K020 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-0D170 · 84307-0D180 · 84307-0D260 · 84307-0D270 |
| 84340 | brake light switch assembly | 84340-09041 · 84340-09210 · 84340-09400 |
| 84345 | Brake light switch base adjuster | 84345-0K010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84523 | No. 1 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-52070 |
| 84550 | Parking brake switch assembly | 84550-02030 |
| 84610F | Transmission shift switch assembly | 84610-22010 · 84610-22020 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-0K230 · 84652-0K231 · 84652-0K240 · 84652-0K241 |
| 84720J | Mode selection switch assembly | 84720-0D130 |
| 84770A | Collision prediction system cancel switch assembly | 84770-0D050 |
| 84810 | Electric window lift switch assembly | 84810-0D300 |
| 84810D | Rear electric window lift switch assembly | 84810-0D300 |
| 84820 | Electric window lift main switch assembly | 84820-0D590 |
| 84840G | Back door opener switch assembly | 84840-0K060 |
| 84870A | Exterior rearview mirror switch assembly | 84872-02610 · 84872-02630 · 84872-0K010 · 84872-0K030 |
| 84930F | door lock control relay | 90080-87009 |
| 84945A | Luggage electronic key switch | 84945-53020 |
| 84978B | Lane Keeping Assist Master Switch | 84978-0D020 |
| 84988L | VSC off switch | 84988-06110 |
| 85530 | No. 1 power socket assembly | 85530-0K040 |
| 85530A | power outlet relay | 90987-02027 · 90987-T2001 |
| 85532 | USB charging socket | 85532-06020 |
| 85535B | No. 1 power outlet cover | 85535-0D060 |
| 85912 | defogger relay | 90987-T2001 |
| 85916D | fog light relay | 90987-T2001 |
| 85916L | Rear fog light relay | 90987-T2001 |
| 85916N | Tail light relay | 90987-T2001 |
| 85916P | headlight relay | 90987-T2002 |
| 85926 | Headlight dimmer relay | 90987-T2002 |
| 85927 | cooling fan relay | 90987-T2001 |
| 85927A | Cooling fan relay No. 2 | 90080-87009 |
| 85928B | Cooling fan resistor | 85928-0D020 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 86530 | Speaker relay assembly | 90987-T2001 |
| 87290F | ECO switch assembly | 87290-0D130 |
| 87299 | heater relay | 90987-T2002 |
| 89111 | Network gateway ECU | 89100-52060 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221B | Body ECU | 89221-0D670 |
| 89245B | steering sensor | 8924B-0D010 |
| 89420F | Vacuum sensor assembly | 89420-52100 |
| 89465 | oxygen sensor | 89465-52A00 · 89465-52A10 |
| 89467B | air fuel ratio sensor | 89467-30050 |
| 8946A | Exhaust sensor clip bracket | 82715-5C350 · 8946A-52080 |
| 89611 | One-button start switch | 89611-0K011 · 89611-52041 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-0D810 |
