Toyota YARIS 仪表 — Figure 8301

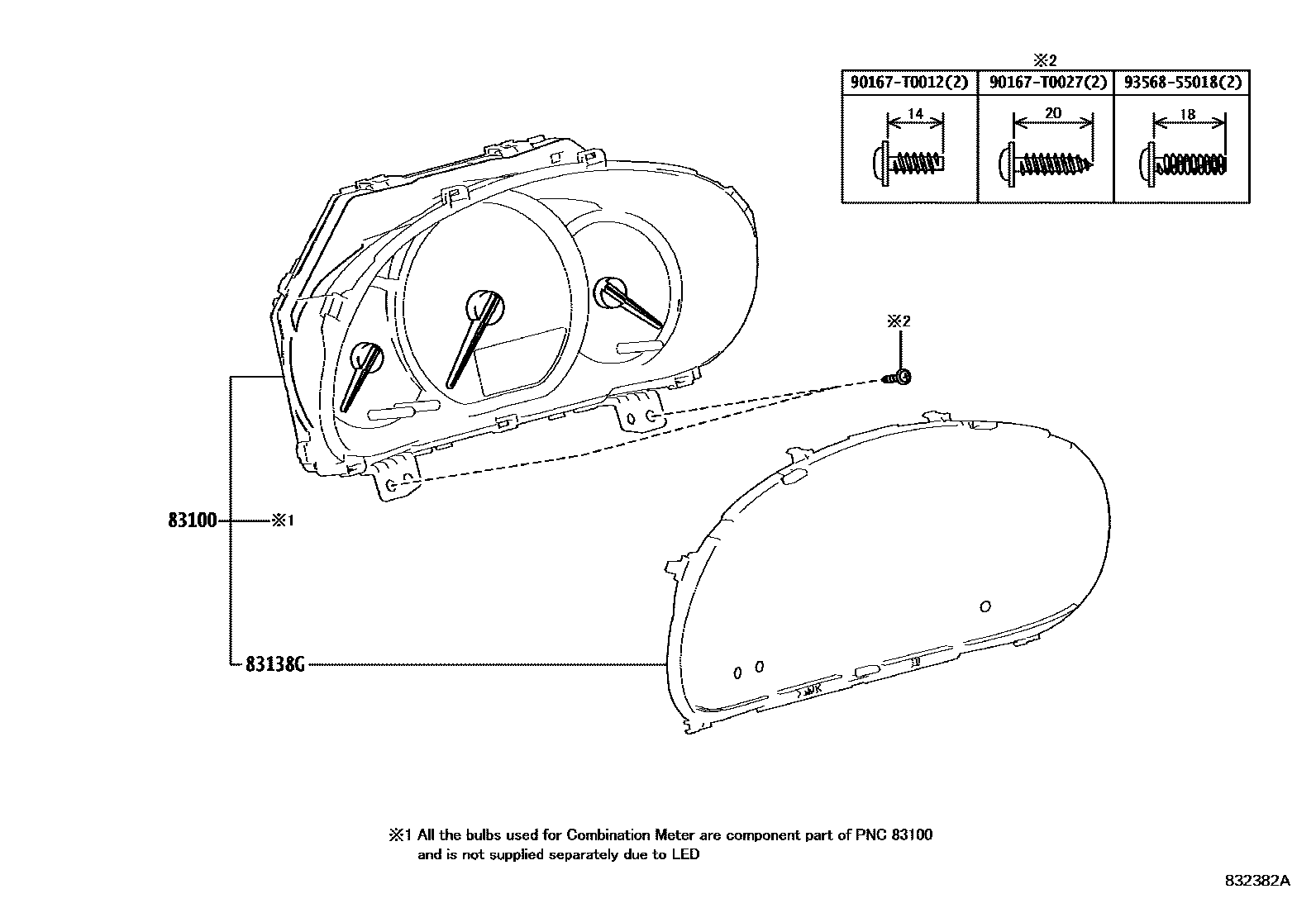

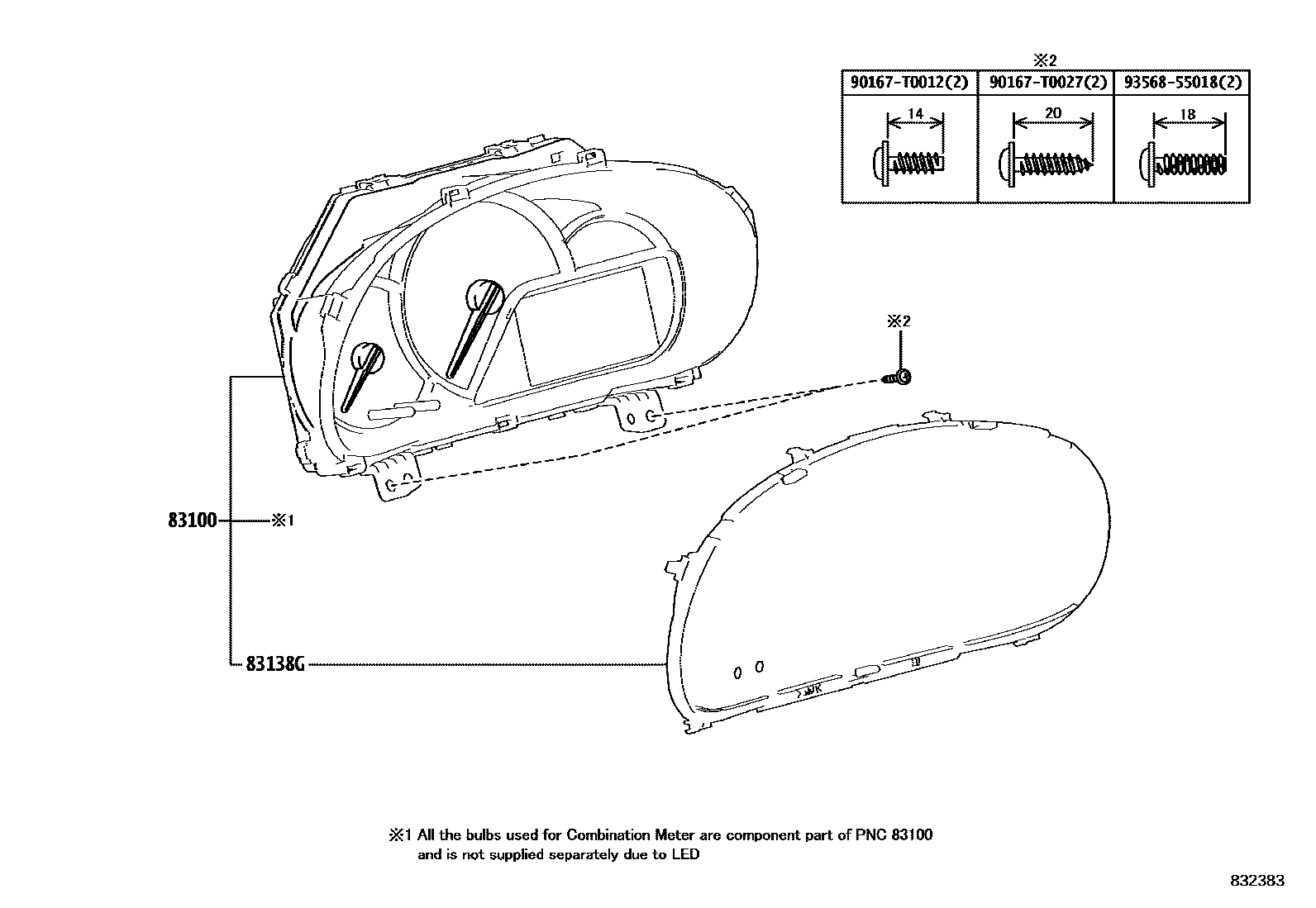

Toyota YARIS EPC diagram 8301, 仪表, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-F5G00 · 83800-F5G01 · 83800-F5G10 · 83800-F5G11 · 83800-F5G20 · 83800-F5G21 · 83800-F5J00 · 83800-F5J01 · 83800-F5J10 · 83800-F5J11 · 83800-F5K70 · 83800-F5K71 |
| 83138G | Instrument cluster glass | 83852-0UV30 · 83852-0UZ80 |
