Toyota YARIS 线束和卡夹 — Figure 8202

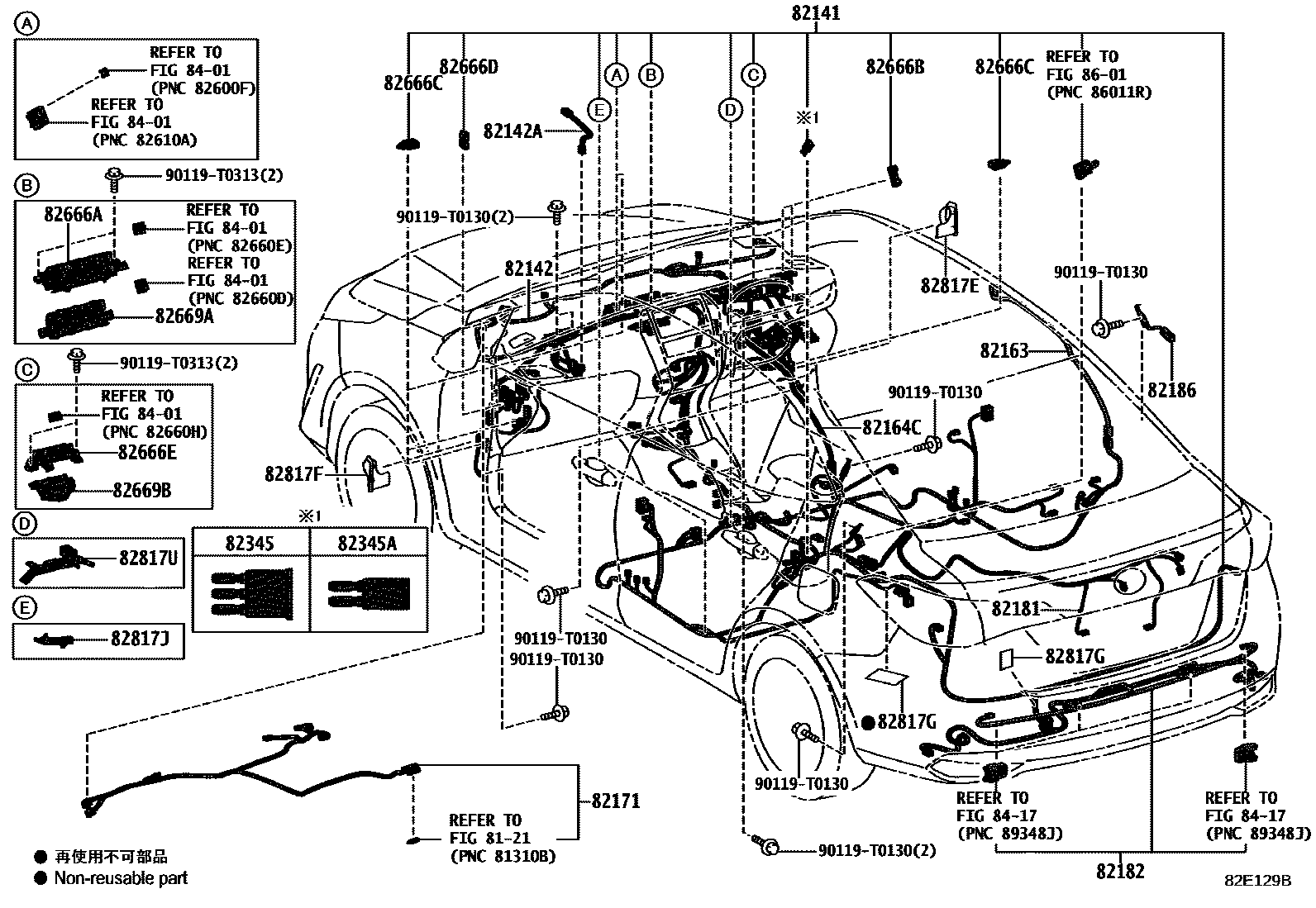

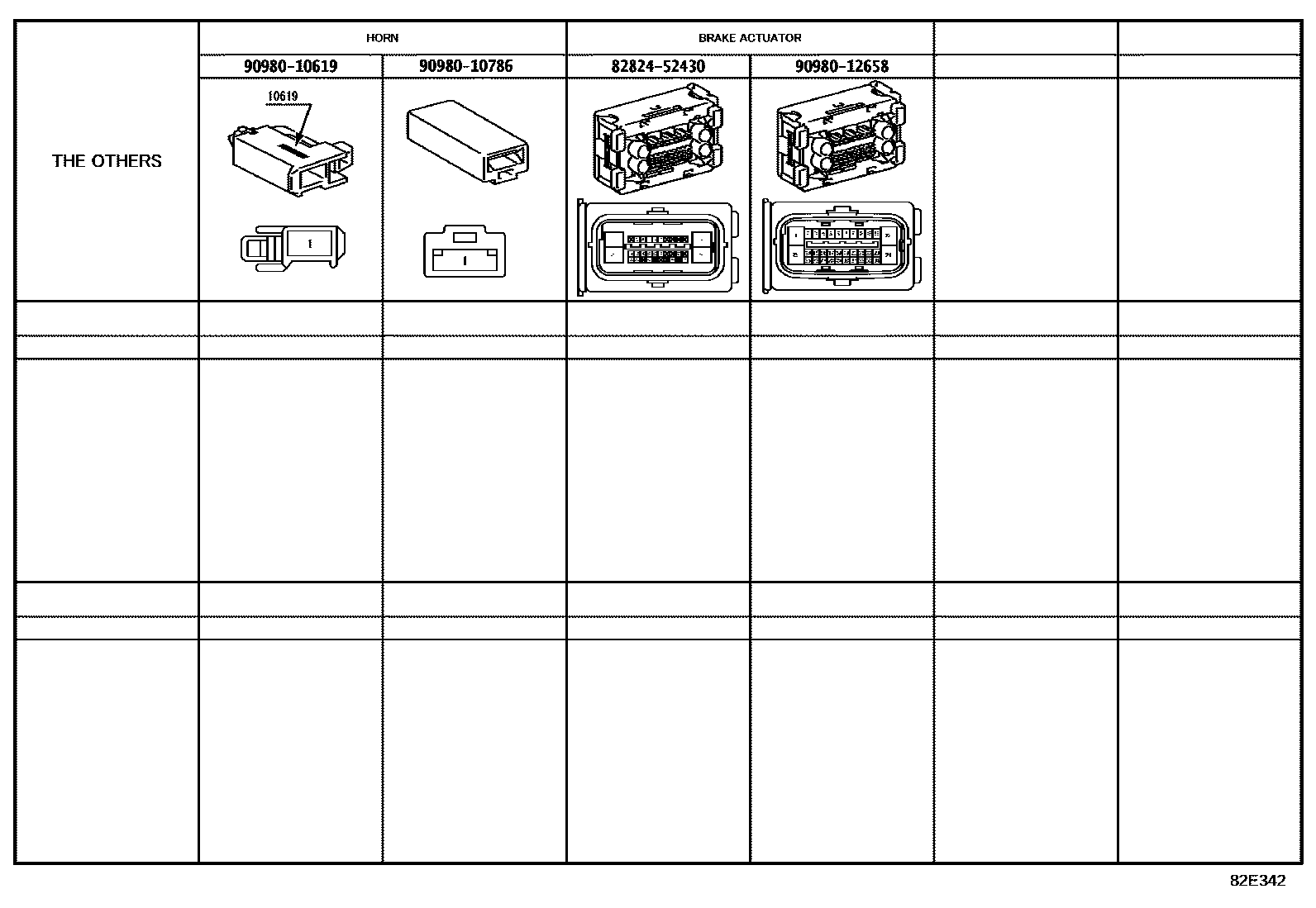

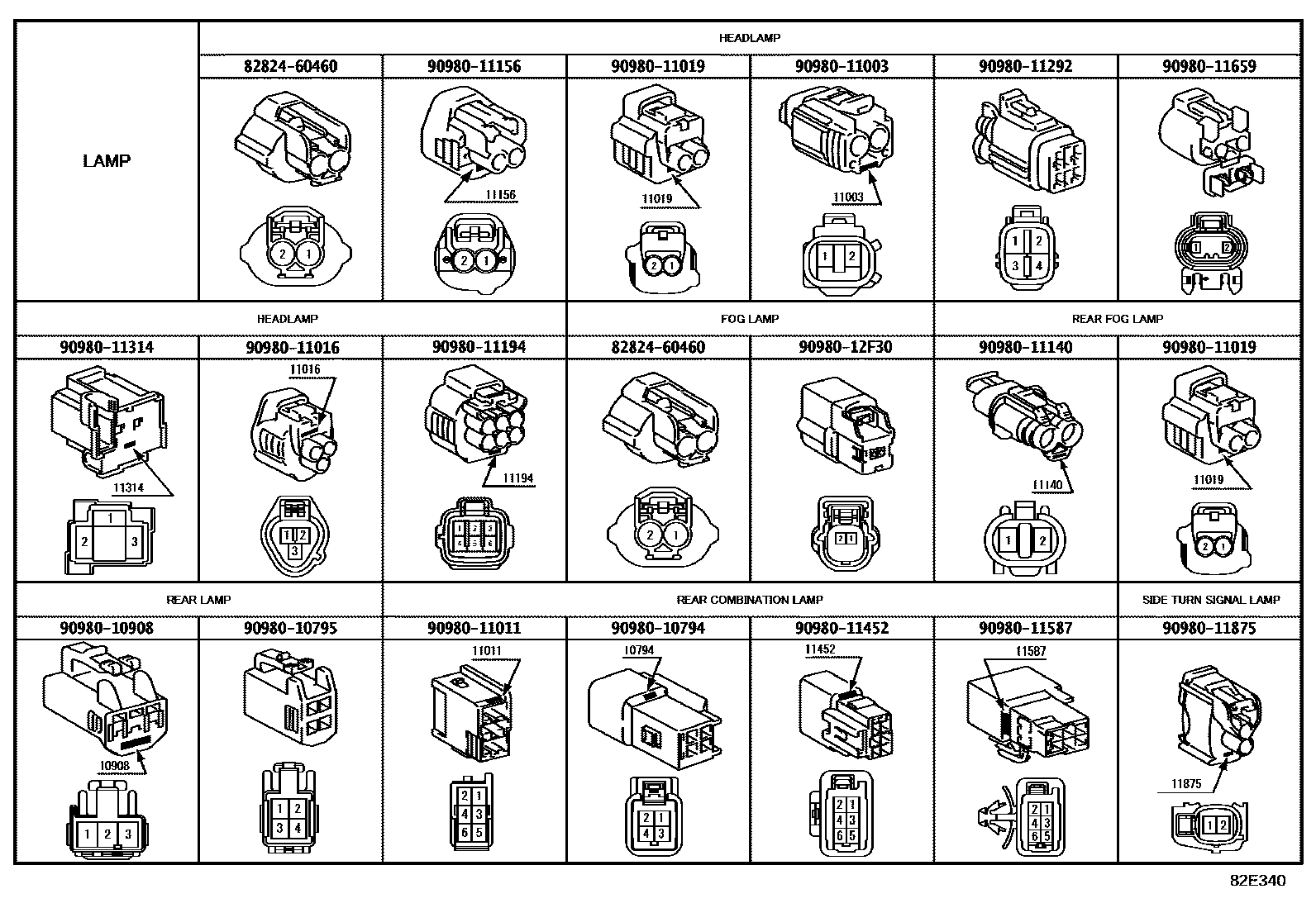

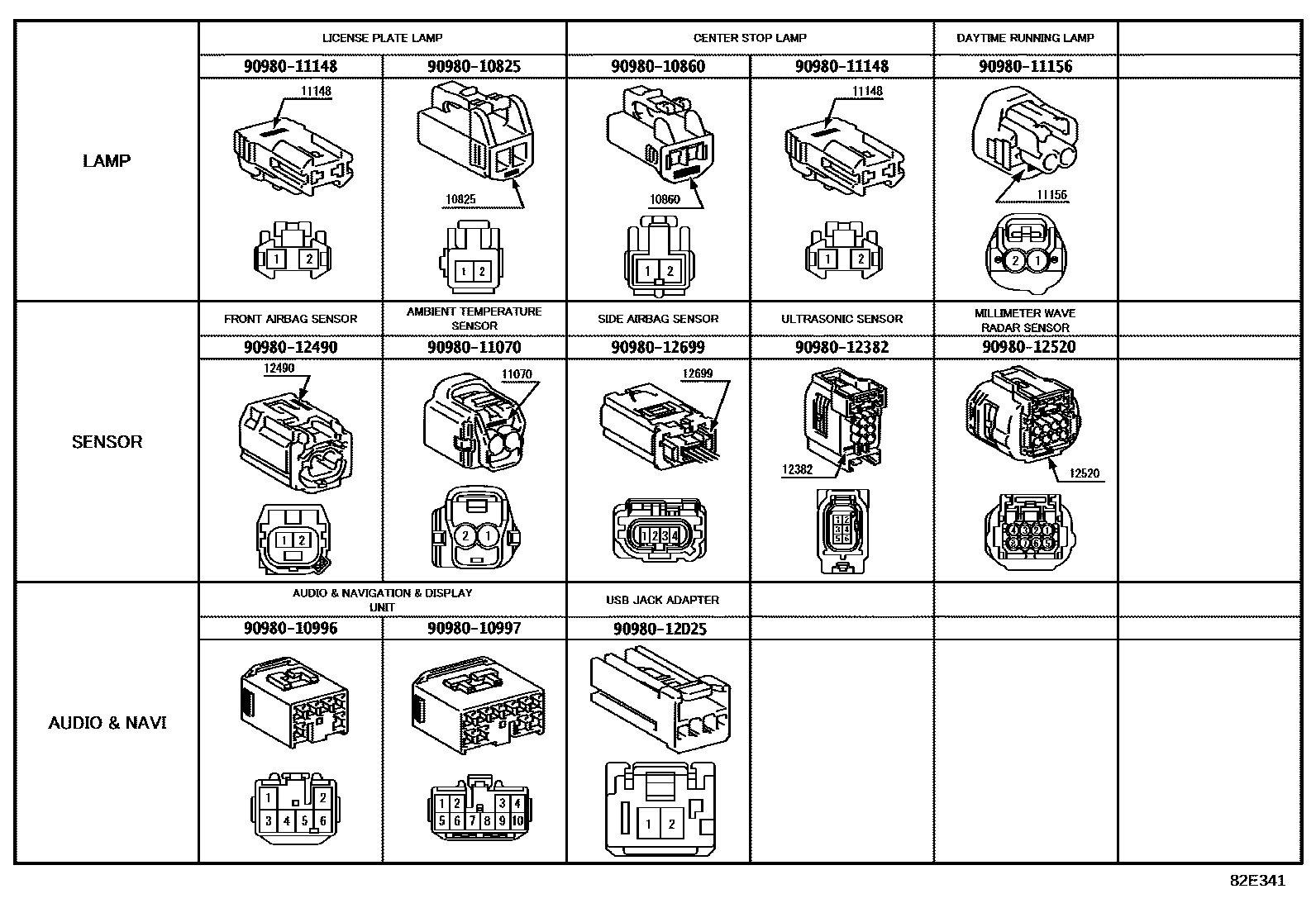

Toyota YARIS EPC diagram 8202, 线束和卡夹, with 10 images and 45 PNC and OE references.
PNC and OE references

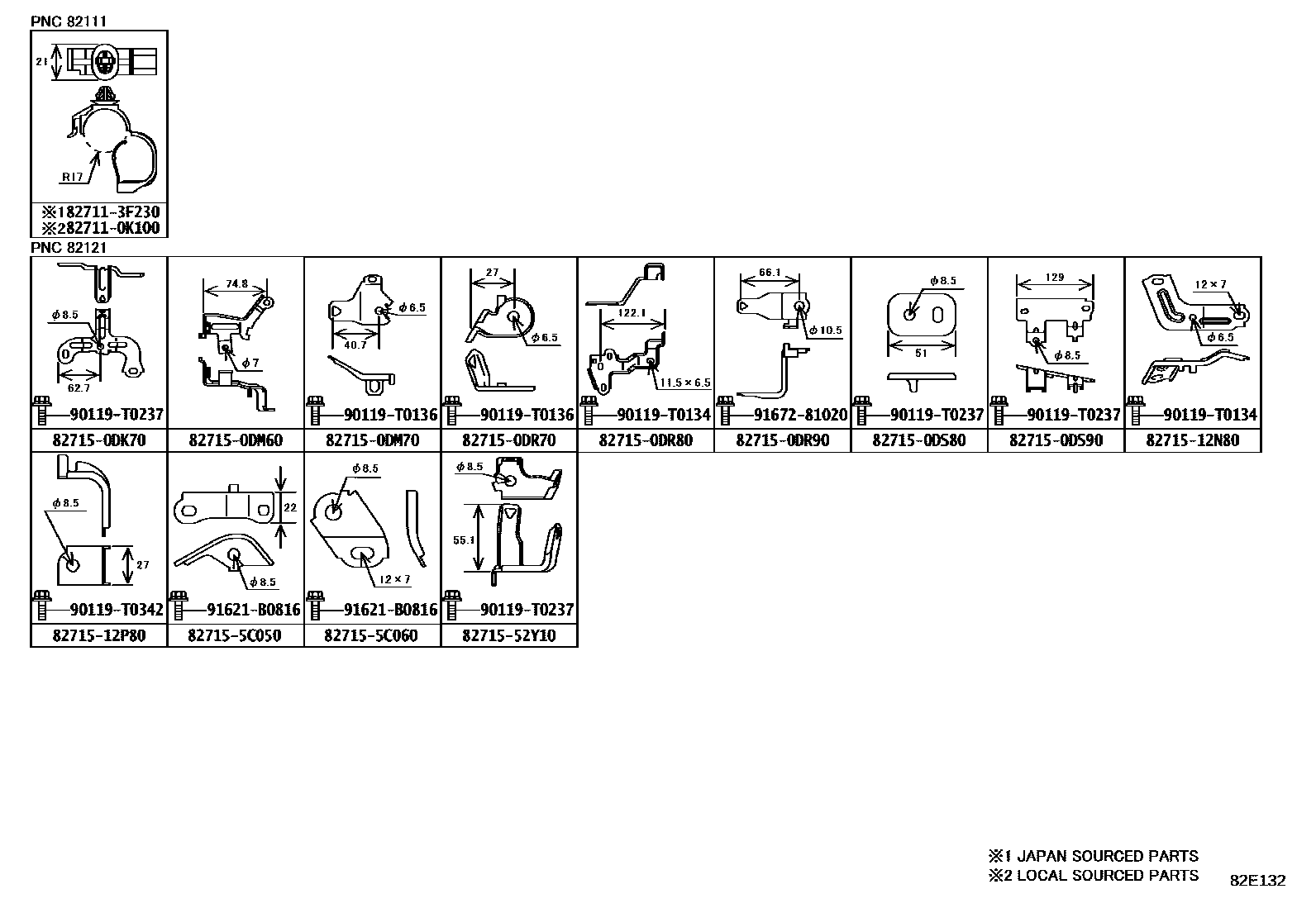

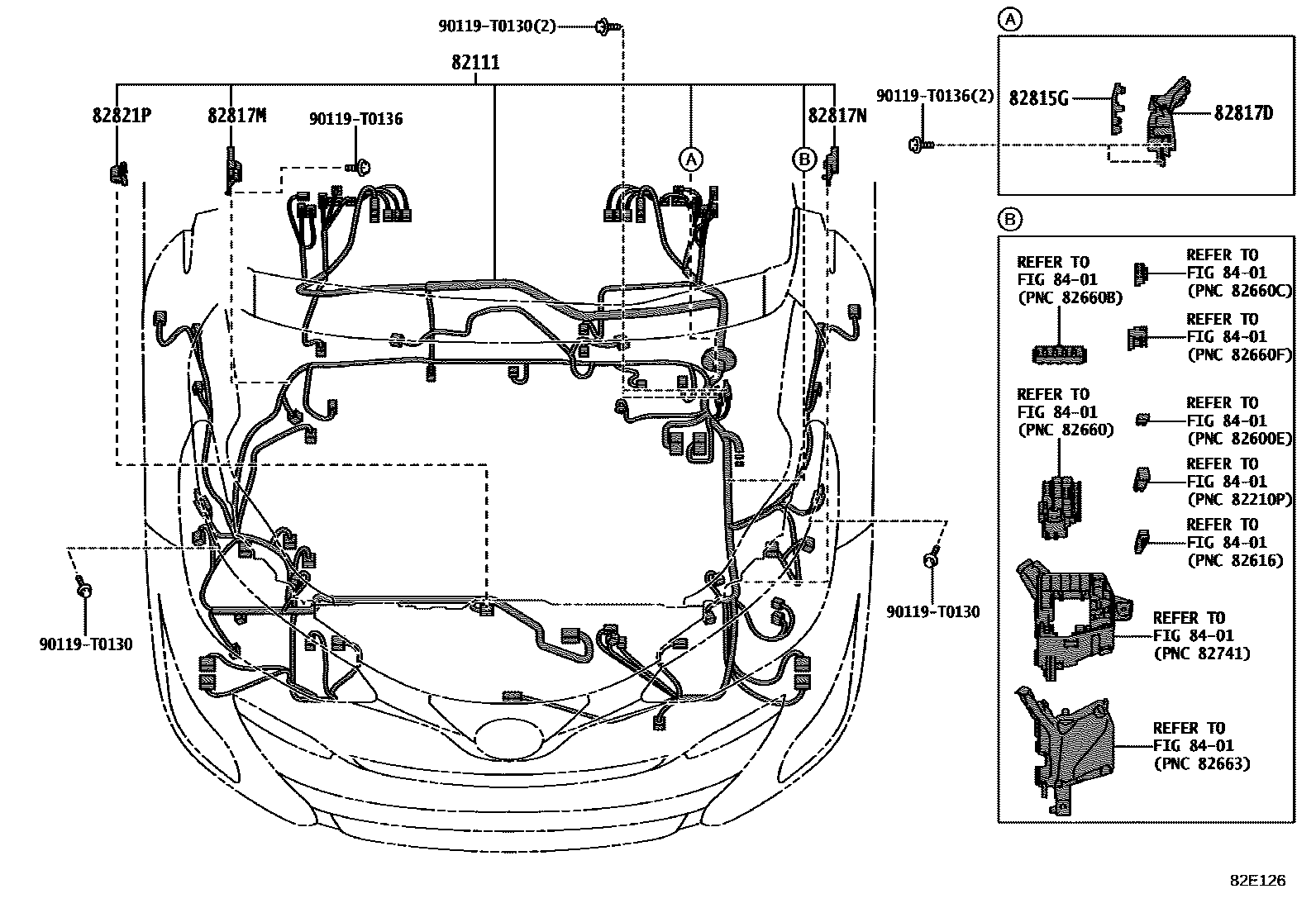

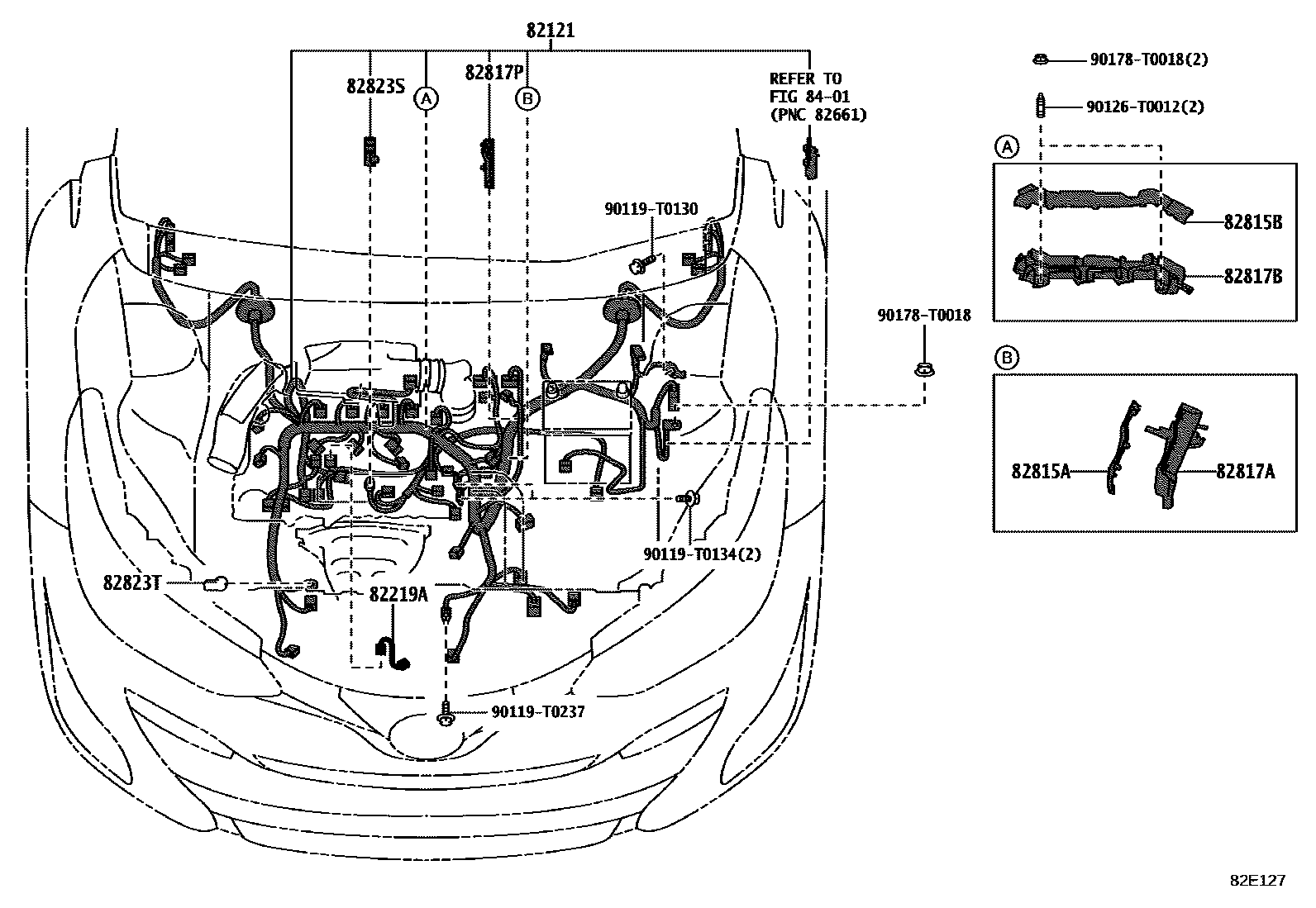

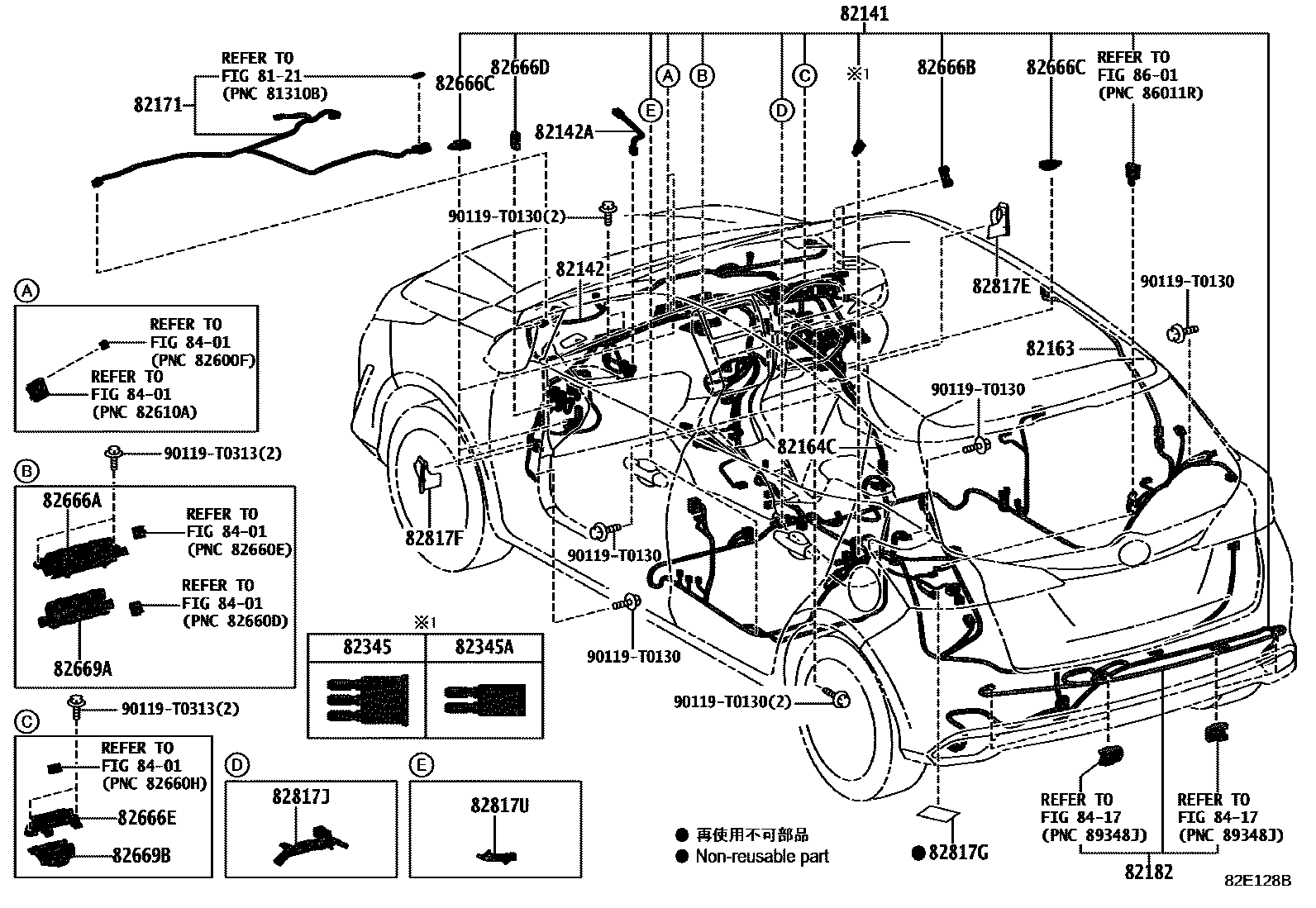

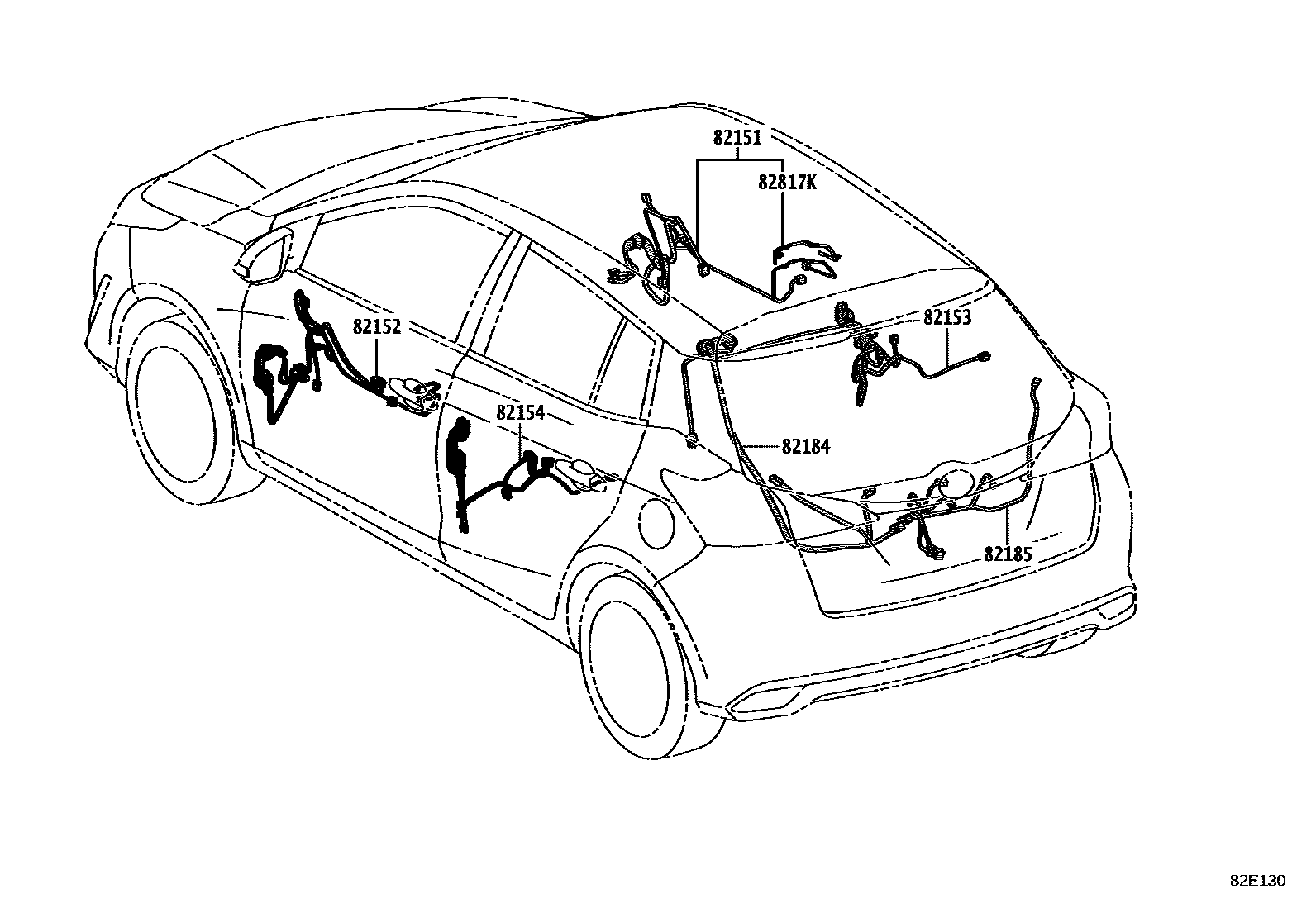

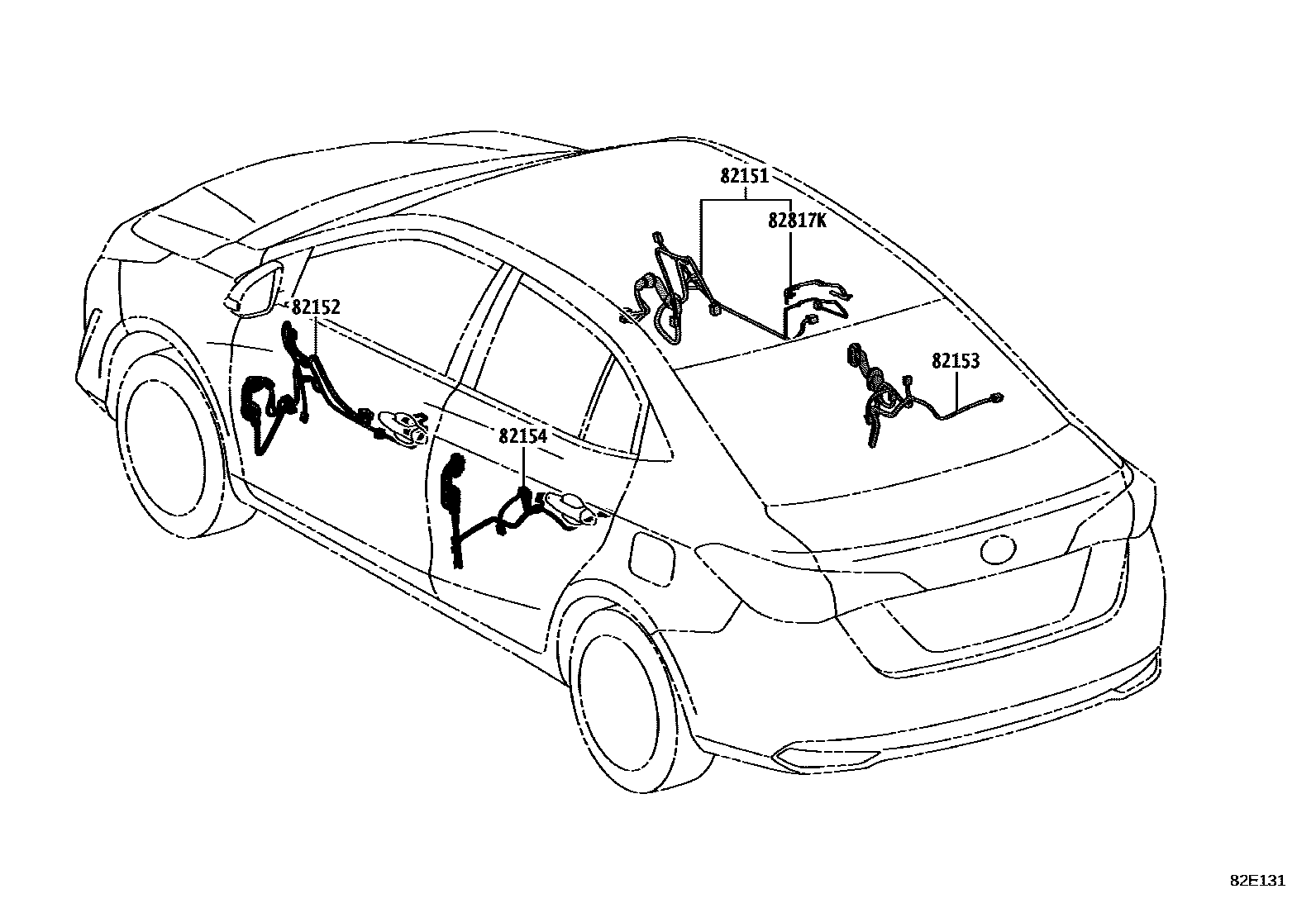

| PNC | Part name | OE numbers |
|---|---|---|
| 82111 | Engine room main wiring harness | 82111-0UT50 · 82111-0UT60 · 82111-0UT70 · 82111-0UT80 · 82111-0UT90 · 82111-0UU00 · 82115-0UU90 · 82115-0UV00 · 82115-0UV10 · 82115-0UV20 · 82115-0UV30 · 82115-F5B80 |
| 82121 | Engine wiring harness | 82121-0DY90 · 82121-0DZ00 |
| 82141 | Dashboard wiring harness | 82146-0UR20 · 82146-0UR30 · 82146-0UR40 · 82146-0UR50 · 82146-0UR60 · 82146-0UR70 · 82146-F5D20 · 82146-F5D30 · 82146-F5D40 · 82146-F5D50 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-0D510 · 82142-0D670 · 82142-0D750 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-0D110 |
| 82151 | Right front door wiring harness | 82151-0UB60 · 82151-0UB61 |
| 82152 | Left front door wiring harness | 82152-0UC30 |
| 82153 | Rear door wiring harness No. 1 | 82153-0DG00 |
| 82154 | Rear door wiring harness No. 2 | 82154-0DE90 |
| 82163 | Floor wiring harness No. 3 | 82163-0D060 · 82163-0D190 |
| 82164C | No. 4 floor wiring harness | 82164-0D030 · 82164-0D140 |
| 82171 | Roof No. 1 wiring harness | 82171-0D820 · 82171-0DK10 · 82171-0DK20 |
| 82181 | Luggage No. 1 wiring harness | 82181-0D330 |
| 82182 | Luggage No. 2 wiring harness | 82182-0D410 · 82182-0D420 · 82182-0D430 · 82182-0D440 |
| 82184 | Rear door No. 1 wiring harness | 82184-0D401 |
| 82185 | Rear door wiring harness No. 2 | 82185-0D481 |
| 82186 | Rear window wiring harness No. 1 | 82186-0D301 |
| 82219A | sensor harness | 82219-0D110 |
| 82345 | diode | 82345-20050 |
| 82345A | diode | 82345-32010 |
| 82666A | Connector holder No. 2 | 82666-0D220 |
| 82666B | No. 3 connector holder | 82666-0D240 |
| 82666C | No. 4 connector holder | 82666-20270 |
| 82666D | No. 5 connector holder | 82666-60220 |
| 82666E | No. 6 connector holder | 82666-0D210 |
| 82669A | Connector box lower cover | 82669-0D040 |
| 82669B | Connector box lower cover | 82669-0D030 |
| 82815A | Wiring harness protector cover | 82815-0D410 |
| 82815B | Wiring harness protector cover | 82815-52230 |
| 82815G | No. 5 wire harness protector cover | 82815-0D350 |
| 82817A | No. 2 wire harness protection device | 82817-0D800 |
| 82817B | No. 3 wire harness protection device | 82817-52B80 |
| 82817D | No. 5 wire harness protection device | 82817-0D580 |
| 82817E | No. 6 wire harness protection device | 82817-0D600 |
| 82817F | No. 7 wire harness protection device | 82817-0D610 |
| 82817G | No. 8 wire harness protection device | 61815-64010 |
| 82817J | No. 9 wire harness protection device | 82817-0DC30 |
| 82817K | No. 10 wire harness protection device | 82817-0DB80 |
| 82817M | No. 12 wire harness protection device | 82817-0DB00 |
| 82817N | No. 13 wire harness protection device | 82817-0DB10 |
| 82817P | No. 14 wire harness protection device | 82817-0DB50 |
| 82817U | No. 16 wire harness protection device | 82817-0DC20 |
| 82821P | Connector cover | 82821-30650 |
| 82823S | starter terminal cover | 82823-20080 |
| 82823T | Generator terminal cover | 82823-22050 |
