Toyota YARIS 车内灯 — Figure 8121

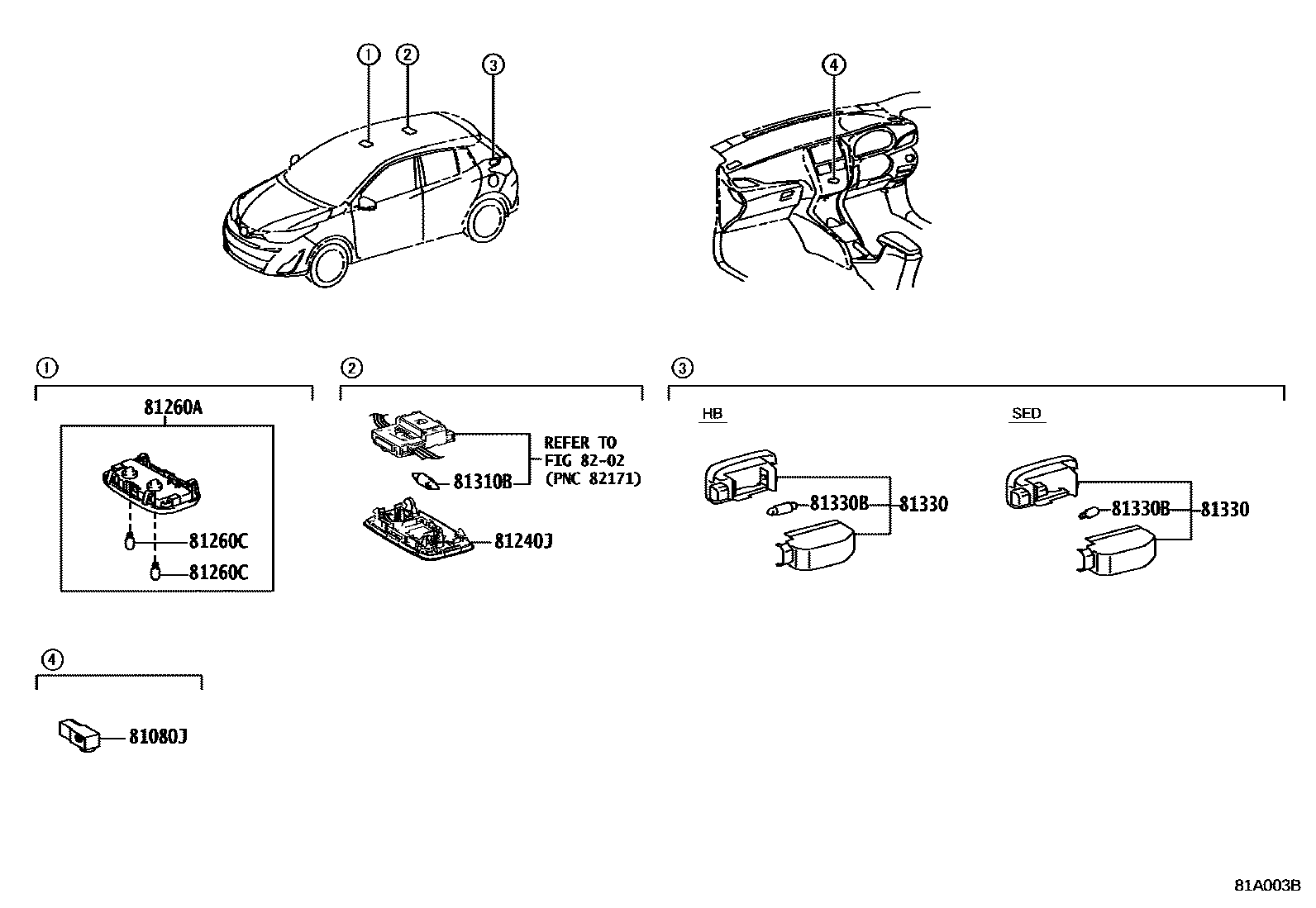

Toyota YARIS EPC diagram 8121, 车内灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080J | No. 1 interior lighting assembly | 81080-48020 |
| 81260C | Light bulb (for reading lamp) | 90981-11067 |
| 81310B | Rear interior light bulb | 90981-14011 |
| 81330 | No. 1 trunk light assembly | 81330-02030 · 81330-0D110 |
| 81330B | trunk light bulb | 90981-11020 · 99132-13050 |
