Toyota YARIS 后牌照灯 — Figure 8113

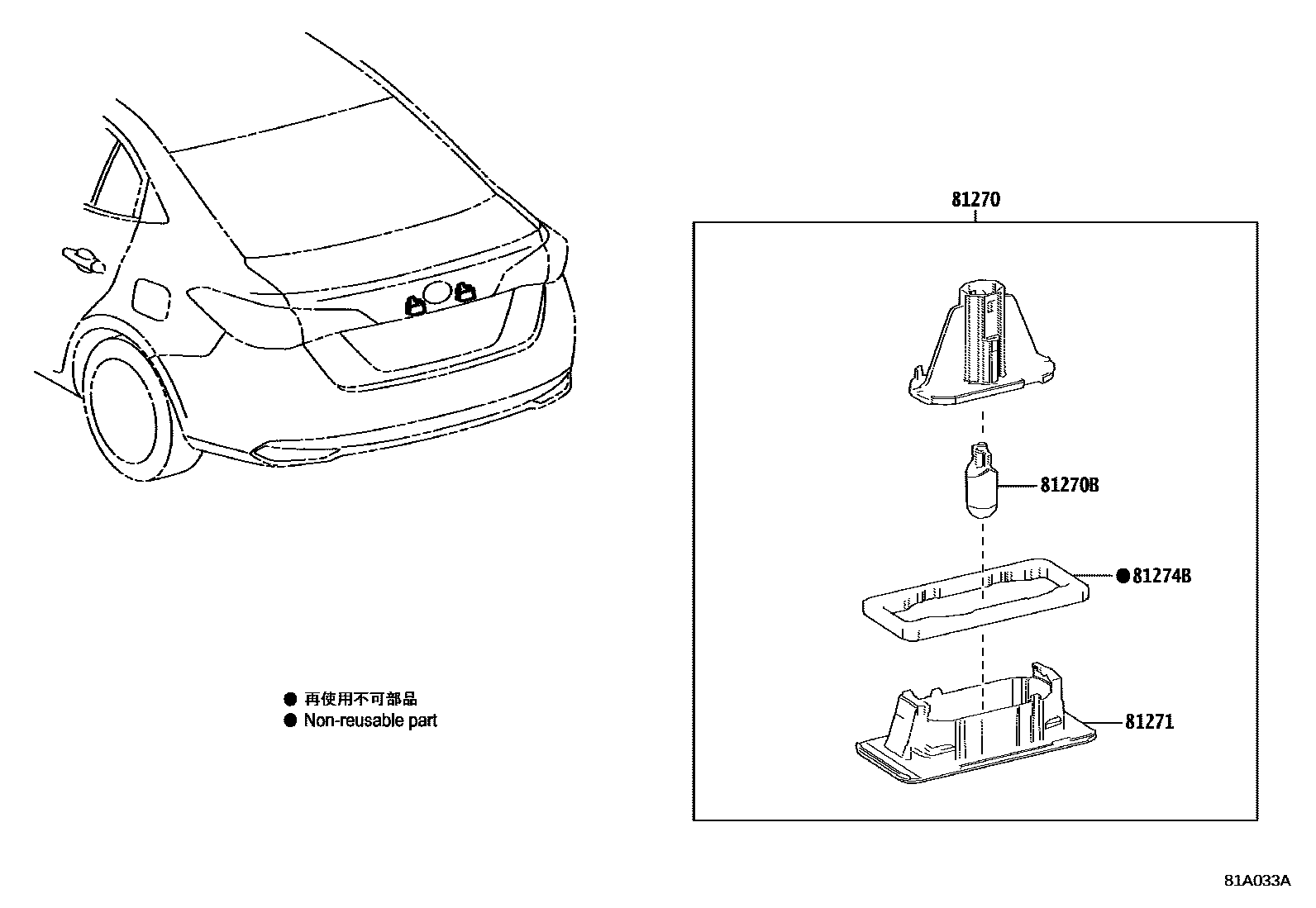

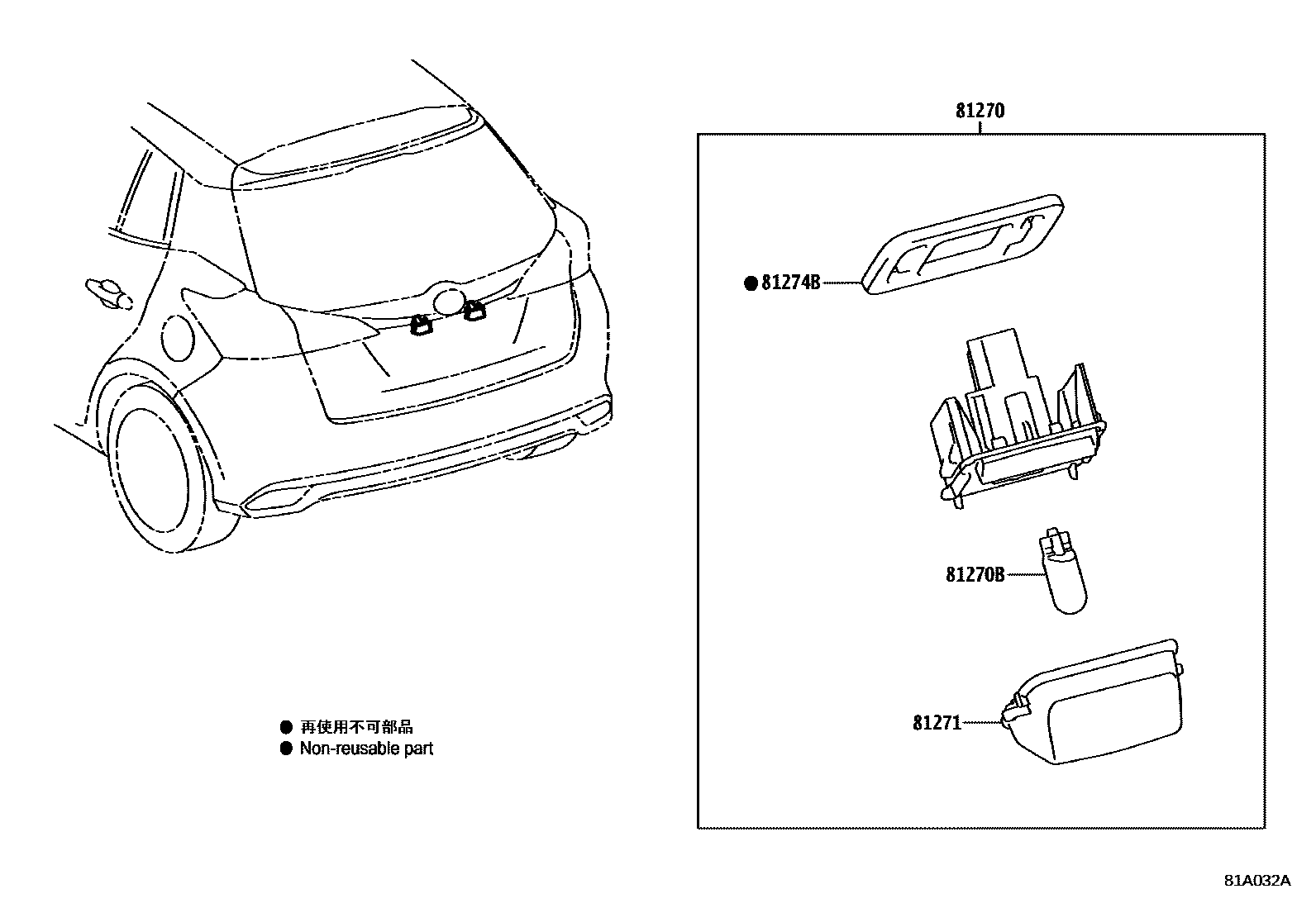

Toyota YARIS EPC diagram 8113, 后牌照灯, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-0D120 · 81270-0D200 |
| 81270B | Bulb (for license plate light) | 90981-TB003 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-0D120 · 81271-0D200 |
| 81274B | license plate light seal | 81274-02130 · 81274-0D200 |
