Toyota YARIS 后组合灯 — Figure 8111

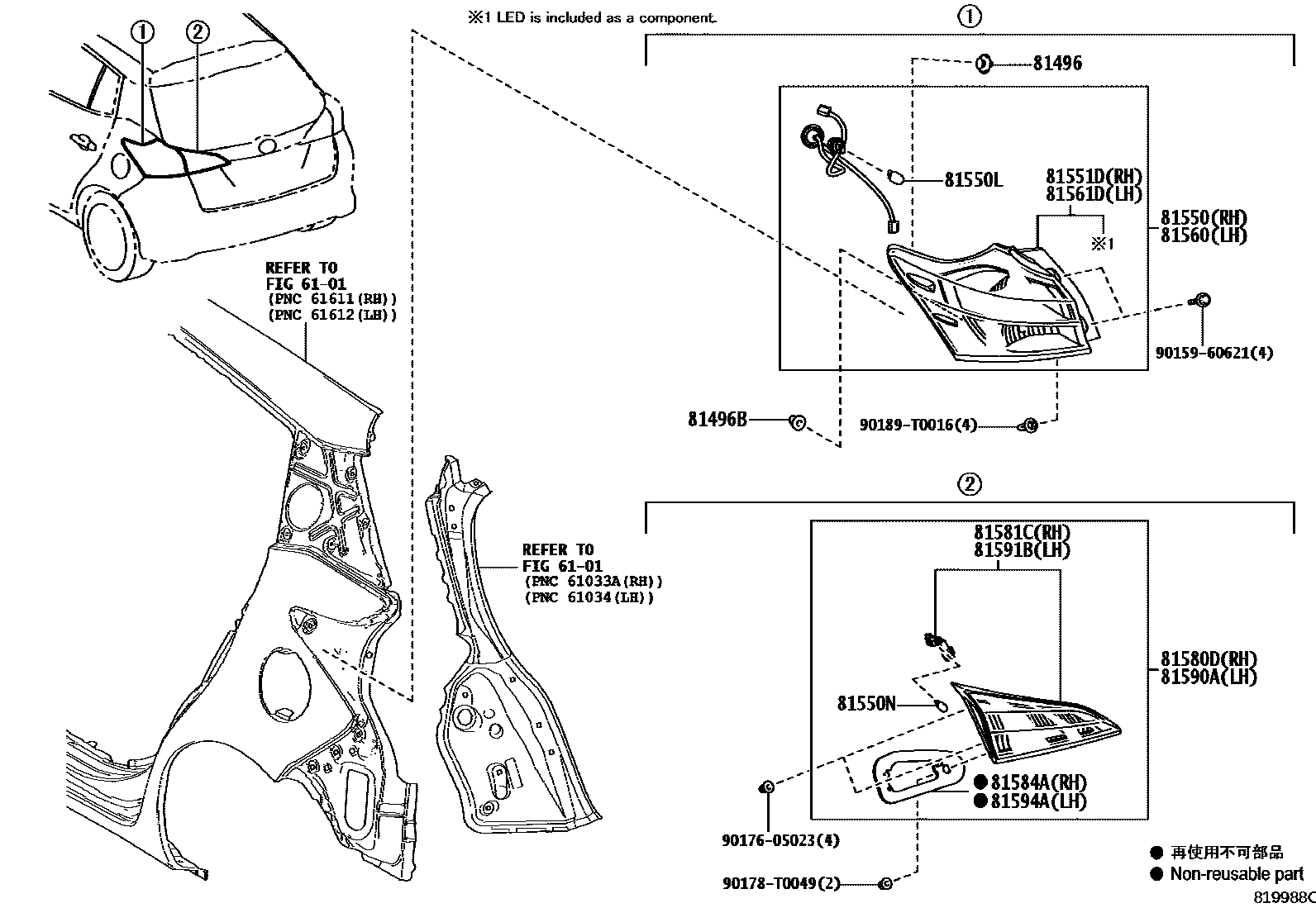

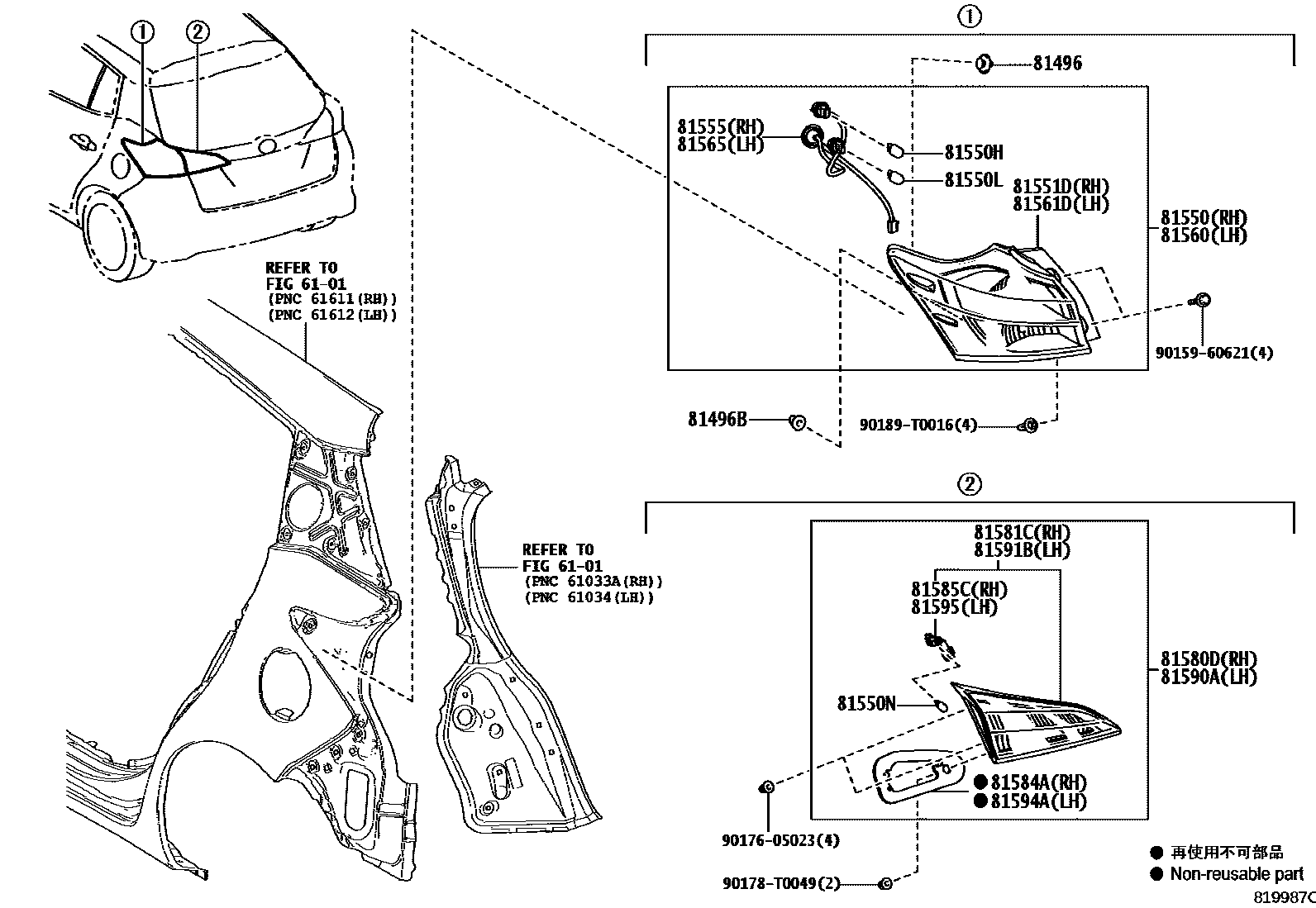

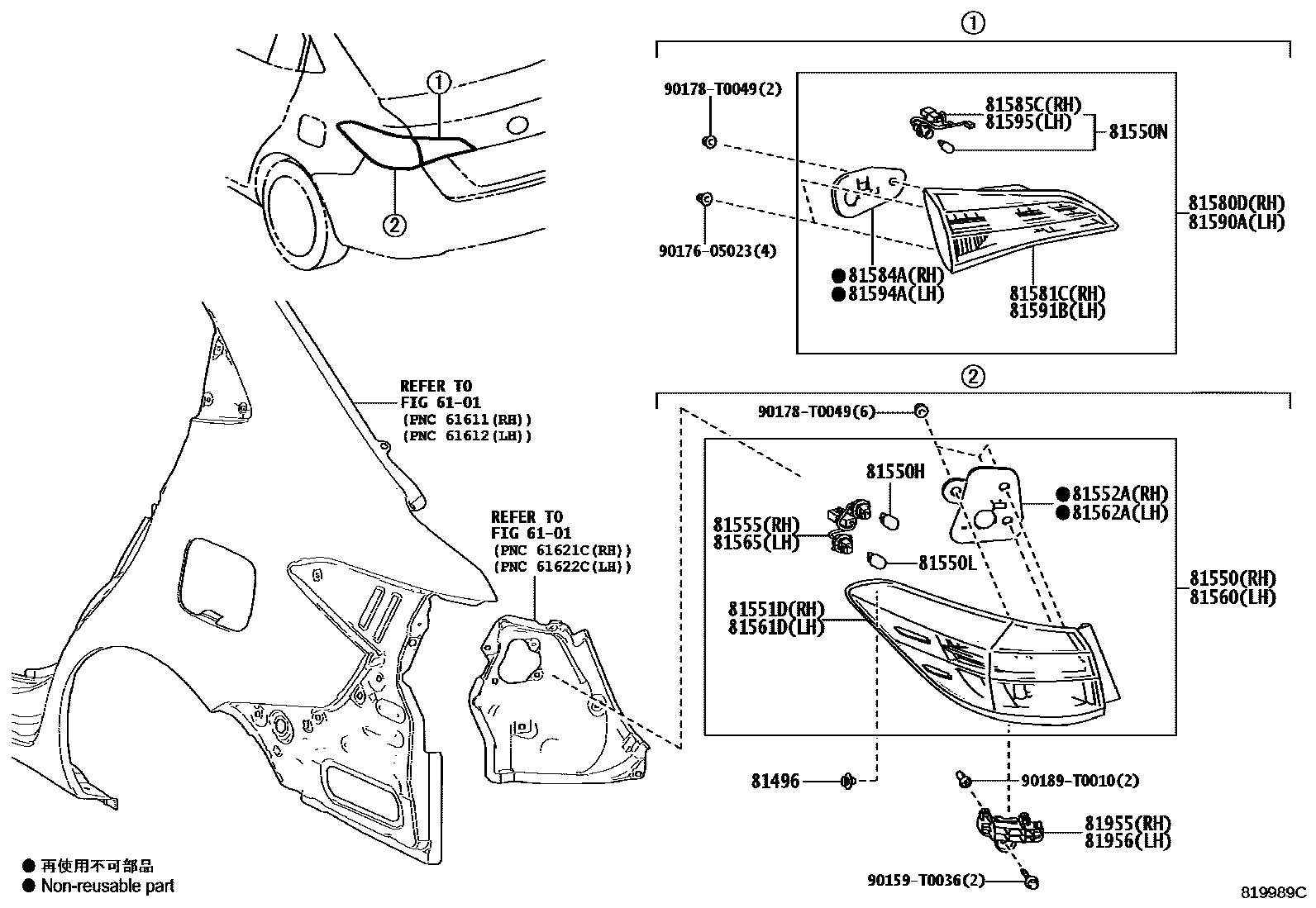

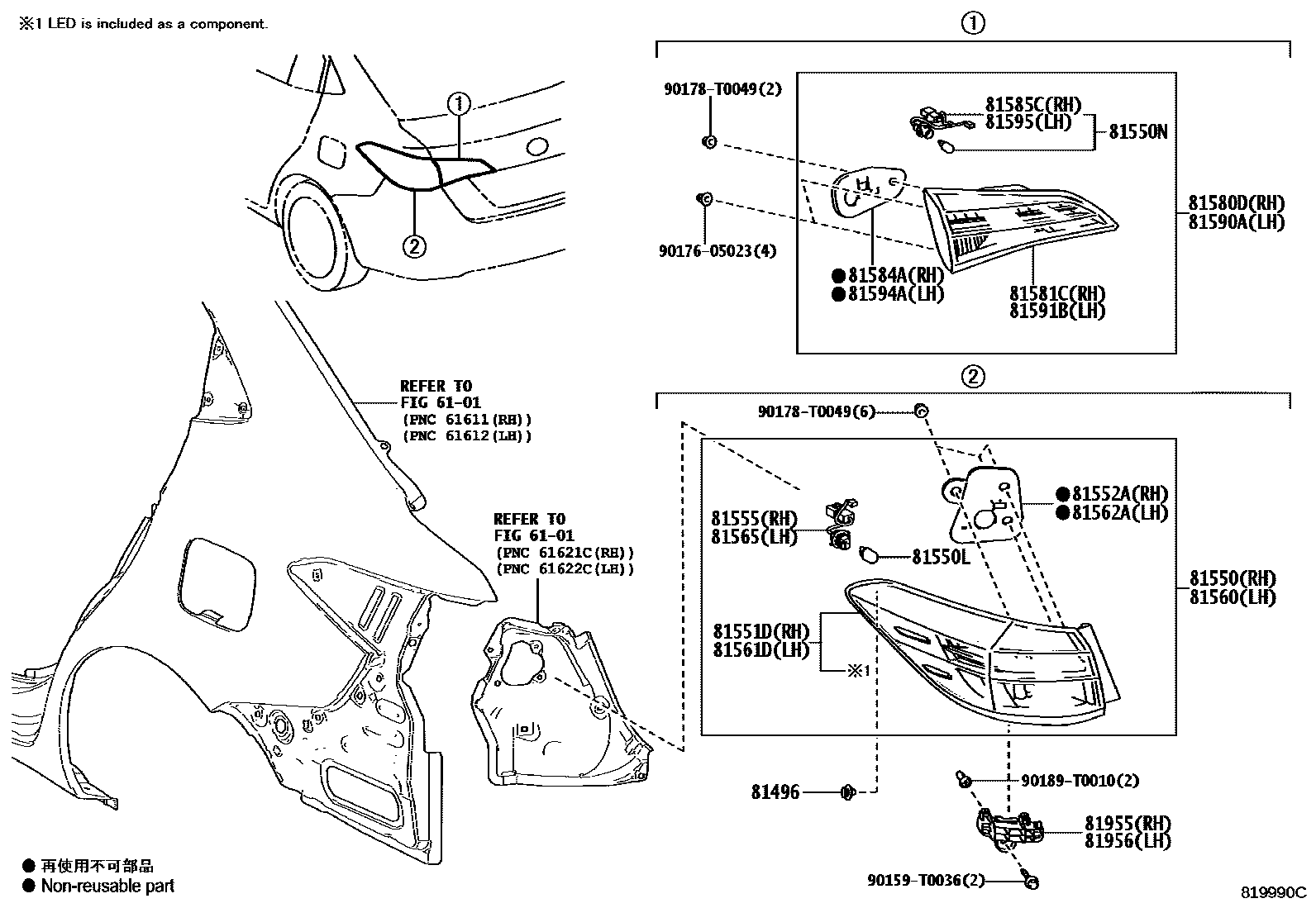

Toyota YARIS EPC diagram 8111, 后组合灯, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81497-0D070 |
| 81496B | Rear light guide block | 81496-0D040 |
| 81550 | Right rear combination light assembly | 81550-0DD01 · 81550-0DE31 · 81550-0DE51 · 81550-0DE61 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0DD01 · 81551-0DE31 · 81551-0DE50 · 81551-0DE60 |
| 81552A | Right rear combination light gasket | 81554-0DE50 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0D860 · 81555-0DE50 · 81555-0DE60 |
| 81560 | Left rear combination light assembly | 81560-0DD01 · 81560-0DE31 · 81560-0DE51 · 81560-0DE61 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0DD01 · 81561-0DE31 · 81561-0DE50 · 81561-0DE60 |
| 81562A | Left rear combination light gasket | 81564-0DE50 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0D860 · 81555-0DE50 · 81555-0DE60 |
| 81580D | Right rear light assembly | 81580-0D650 · 81580-0D660 · 81580-0DA31 · 81580-0DB41 |
| 81581C | Right rear light lampshade and lamp body | 81581-0D650 · 81581-0D660 · 81581-0DA31 · 81581-0DB41 |
| 81584A | Right rear light gasket | 81582-0D650 · 81584-0D410 · 81584-0DB40 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-0D650 · 81585-0D660 · 81585-0DB40 |
| 81590A | Left rear light assembly | 81590-0D650 · 81590-0D660 · 81590-0DA31 · 81590-0DB41 |
| 81591B | Left rear light shade and body | 81591-0D650 · 81591-0D660 · 81591-0DA31 · 81591-0DB41 |
| 81594A | Left rear light gasket | 81592-0D650 · 81594-0D410 · 81594-0DB40 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-0D650 · 81585-0D660 · 81585-0DB40 |
| 81955 | Right rear combination light fixture | 52562-0D130 |
| 81956 | Left rear combination light fixture | 52563-0D130 |
