Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 5 PNC and OE references.

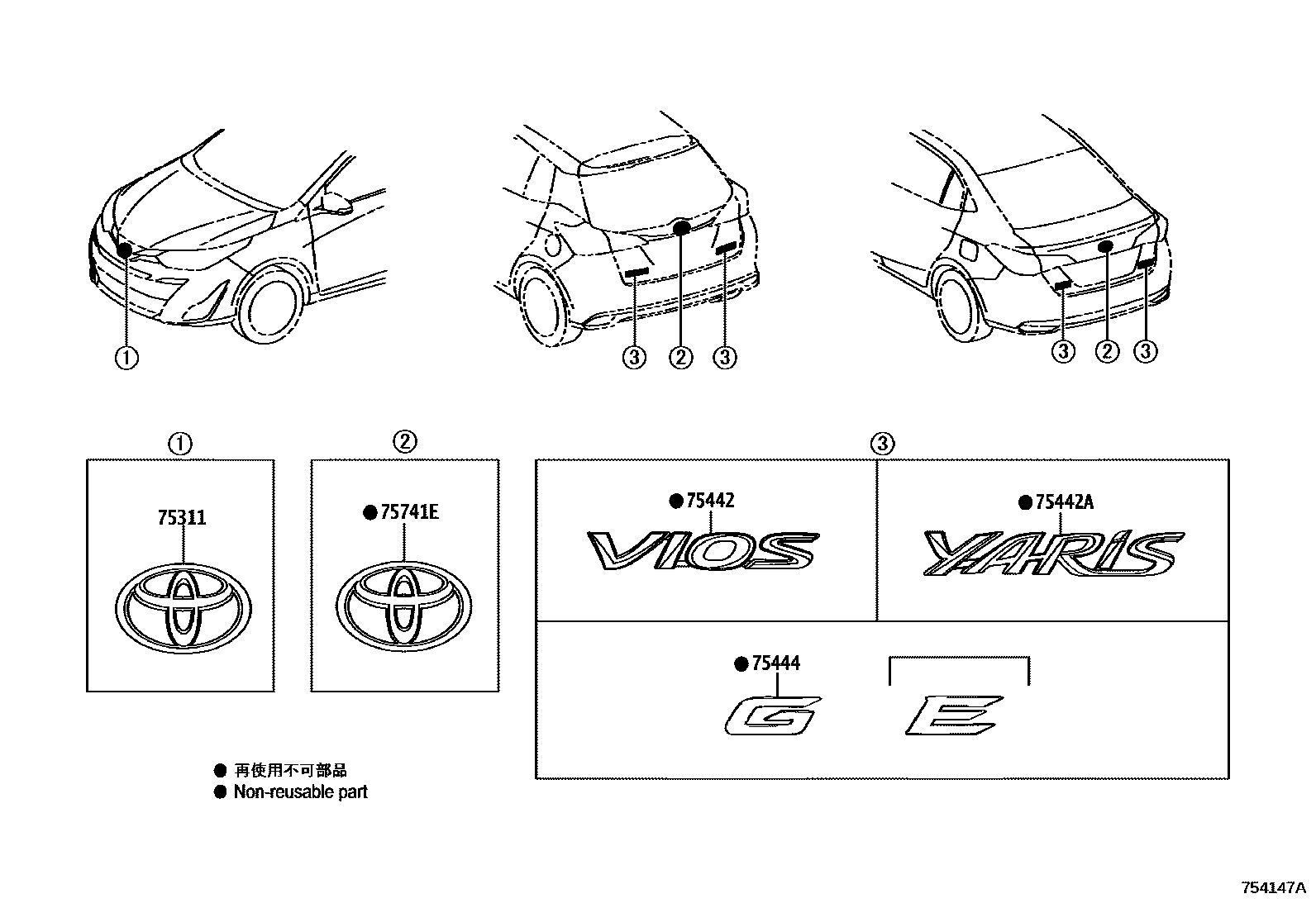

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 754147A
丰田徽标和铭牌(车外和车内) — 754147A (202012 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate90975-02160 · 90975-T2005 · 90975-T2008 · 90975-T2009
75442Trunk door number plate No. 275442-0D440
75442ANo. 2 nameplate on back door75442-0D470
75444Trunk door No. 4 nameplate75444-0D690 · 75444-0D700
75741Elogo75431-02090
