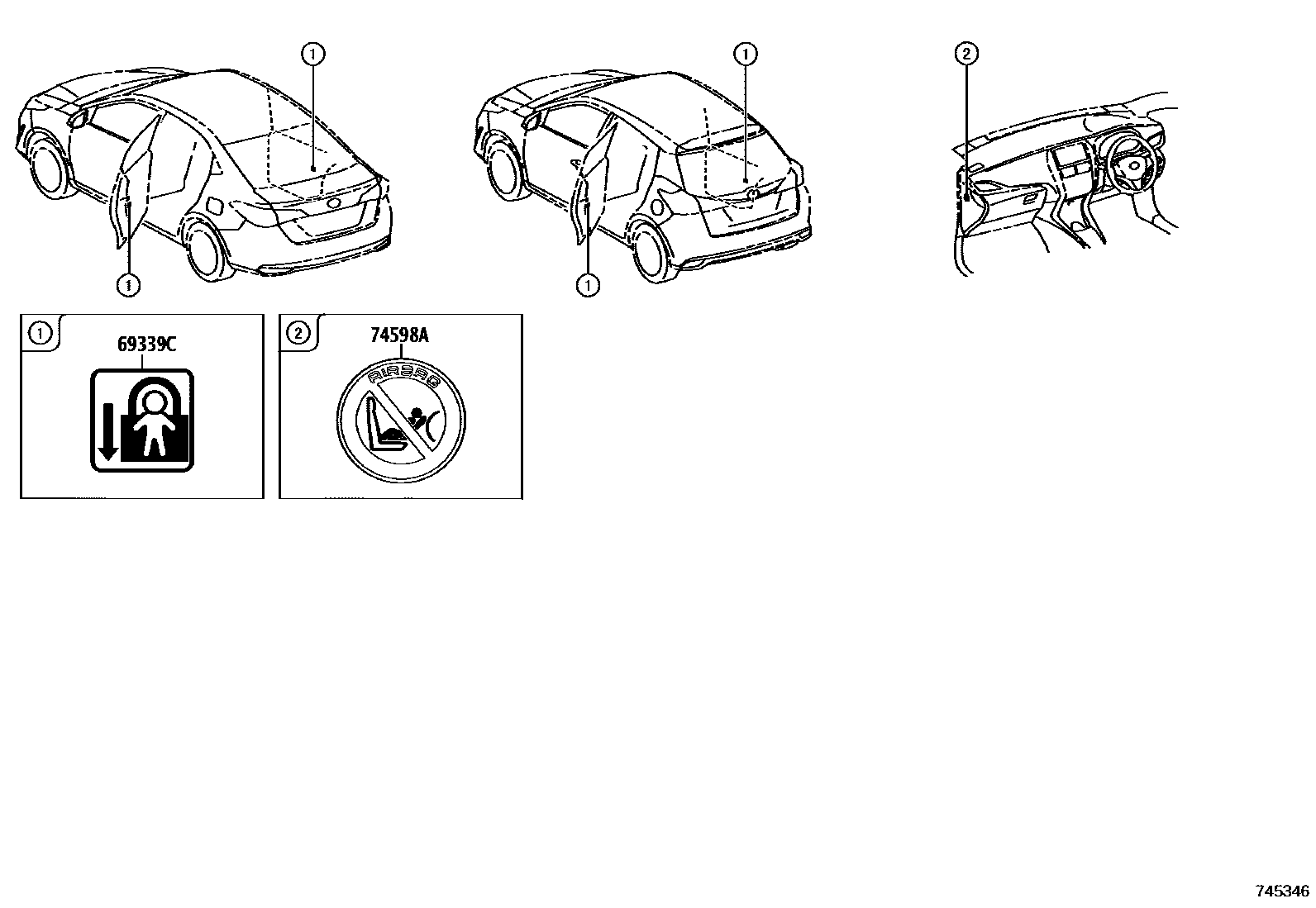

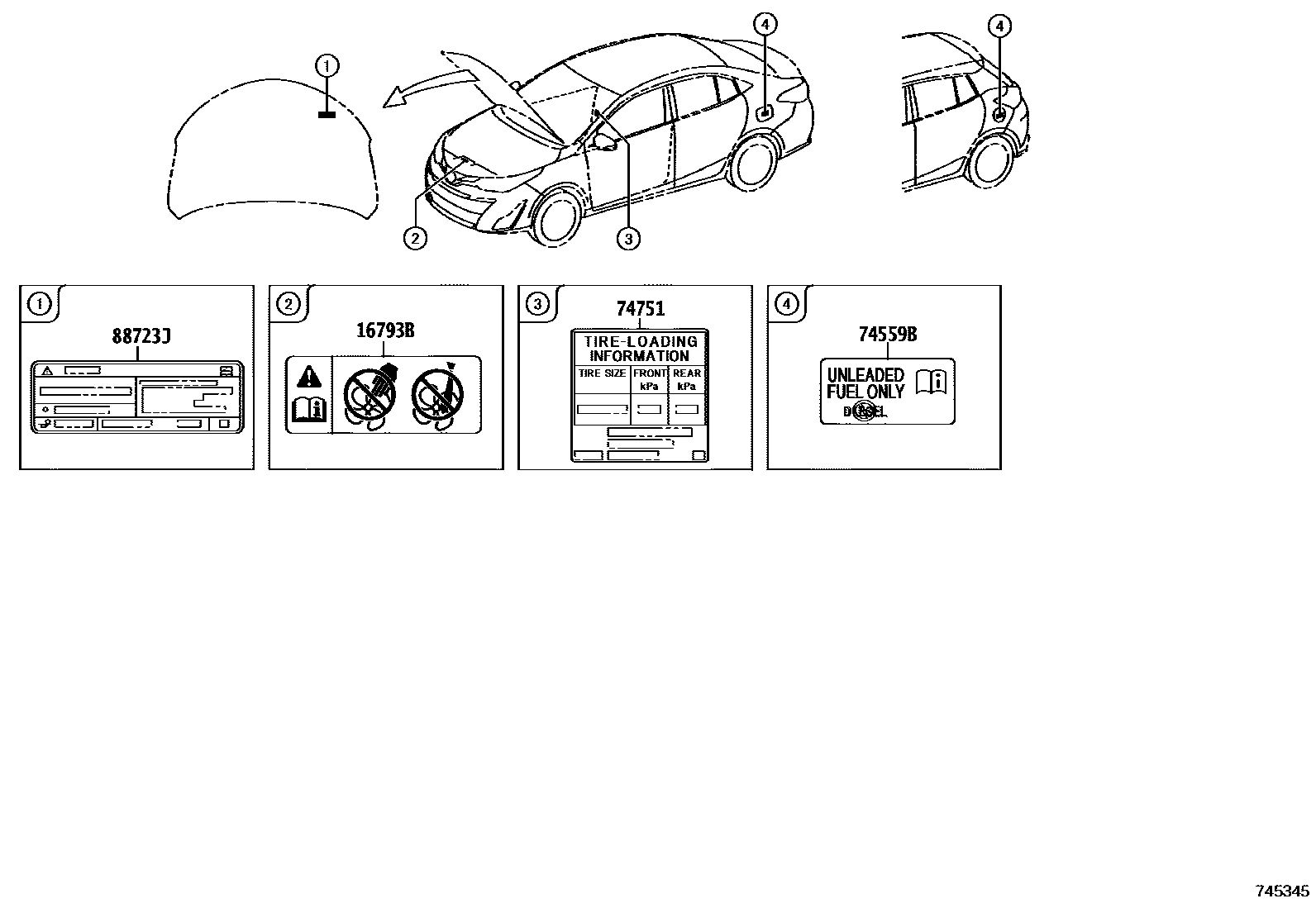

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16793B | Cooling fan information label | 16793-36030 |
| 69339C | Child Restraint Information Label | 69339-06060 |
| 74559B | fuel information label | 74559-20140 |
| 74598A | Passenger air bag warning label | 74598-02040 |
| 74751 | tire pressure information label | 42661-0D211 · 42661-0D560 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-0D130 |
