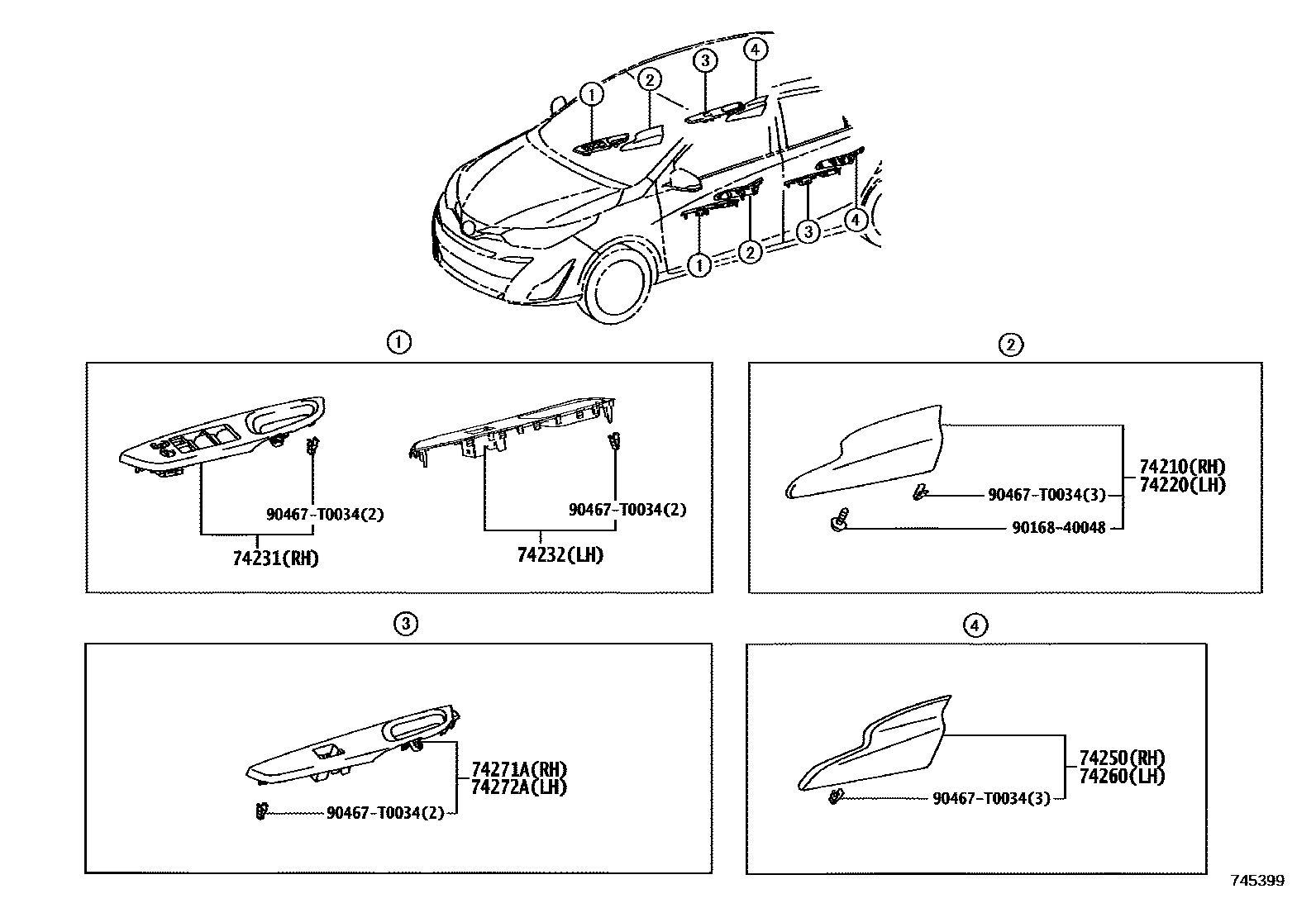

Toyota YARIS 扶手和遮阳板 — Figure 7401
Toyota YARIS EPC diagram 7401, 扶手和遮阳板, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-0DB30 · 74231-0DD70 |
| 74232 | Left front armrest upper panel | 74232-0DB70 |
| 74271A | Right rear door armrest upper panel | 74271-0D580 |
| 74272A | Left rear door armrest upper panel | 74272-0D580 |
| 74614C | Auxiliary handle locking plate | 74614-02020 |
| 74811B | door handle | 69285-0D040 |
