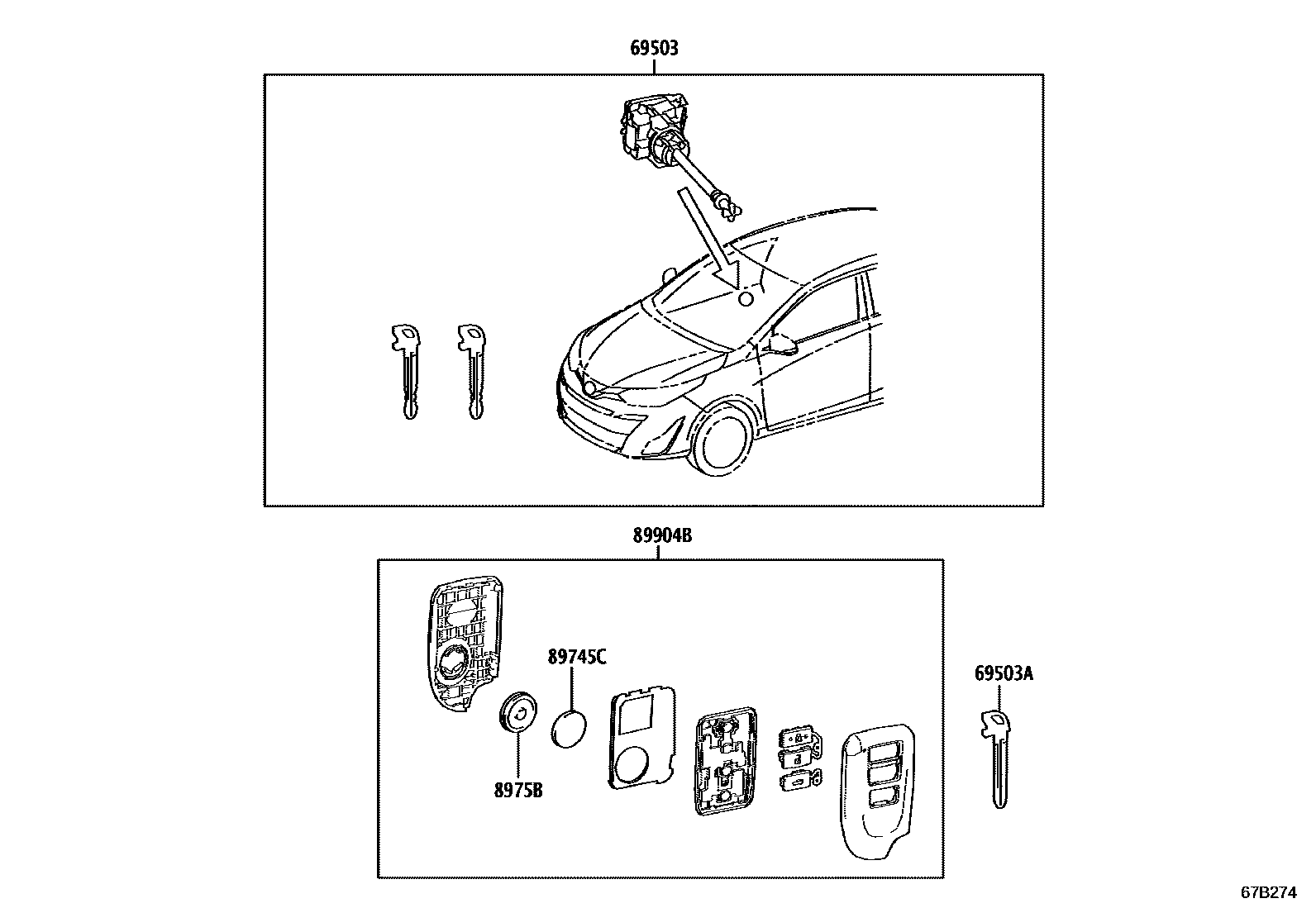

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-0DG70 |
| 69503A | external tooth key | 69515-52180 |
| 89745C | Transmitter battery | 89745-0K010 |
| 8975B | Remote control battery case cover | 8975B-0D010 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0D160 · 89904-0D200 |
