Toyota YARIS 底板和底板装饰罩 — Figure 6404

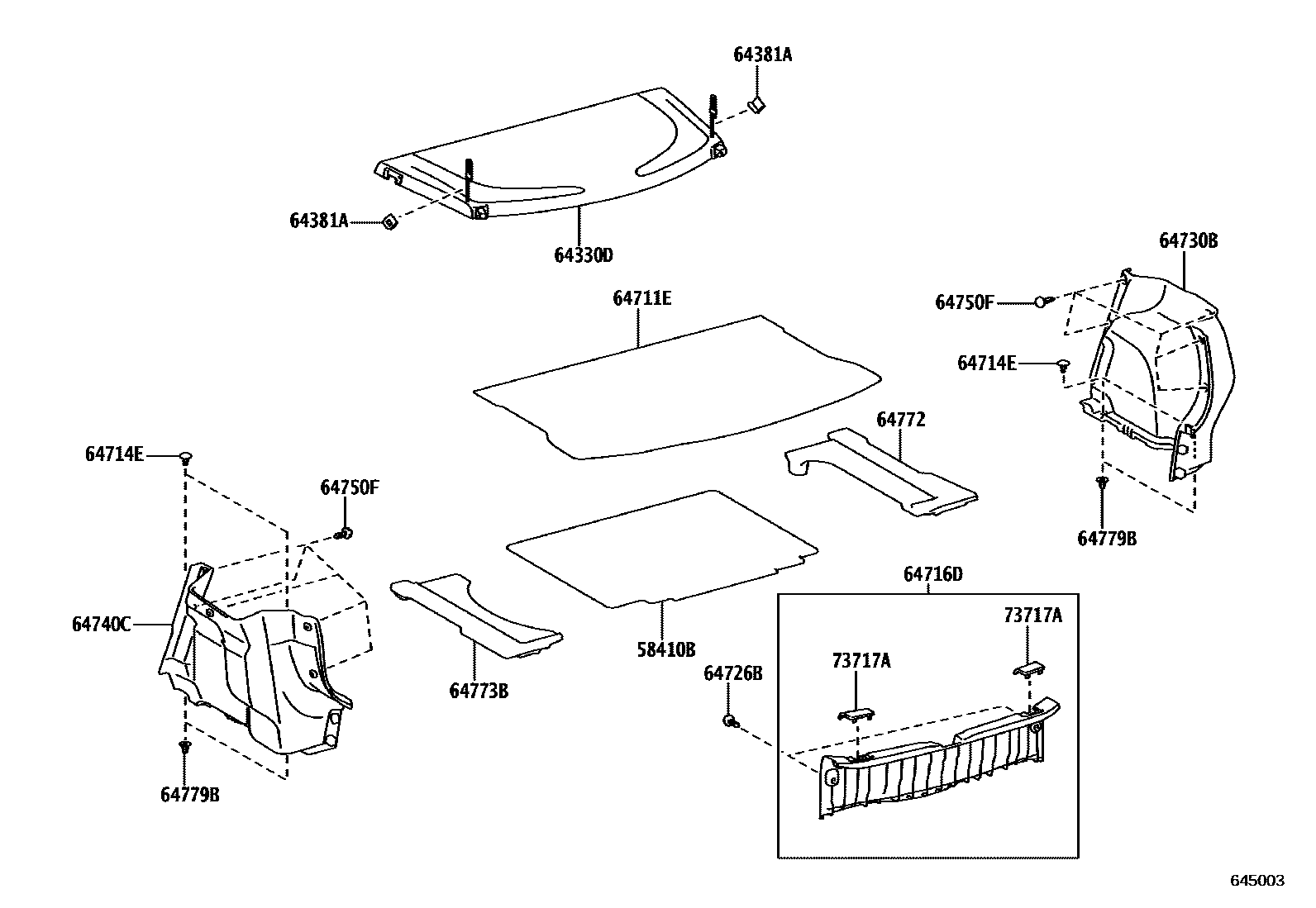

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58410B | Base plate assembly | 58410-0D130 · 58410-0D140 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64714E | Clip (for bottom panel side decorative cover) | 64726-0D020 |
| 64716D | Rear floor decorative cover | 64716-0D240 · 64716-0D241 |
| 64772 | Spare tire cover liner | 64772-0D160 |
| 64773B | No. 2 spare tire cover liner | 64773-0D100 |
| 64779B | Spare tire cover stop | 64779-0D050 · 64779-BZ030 |
| 73717A | Child restraint seat tether anchor cover | 73717-0D070 · 73717-0D071 · 73717-0D080 · 73717-0D081 |
