Toyota YARIS 杂物箱板和行李箱垫 — Figure 6403

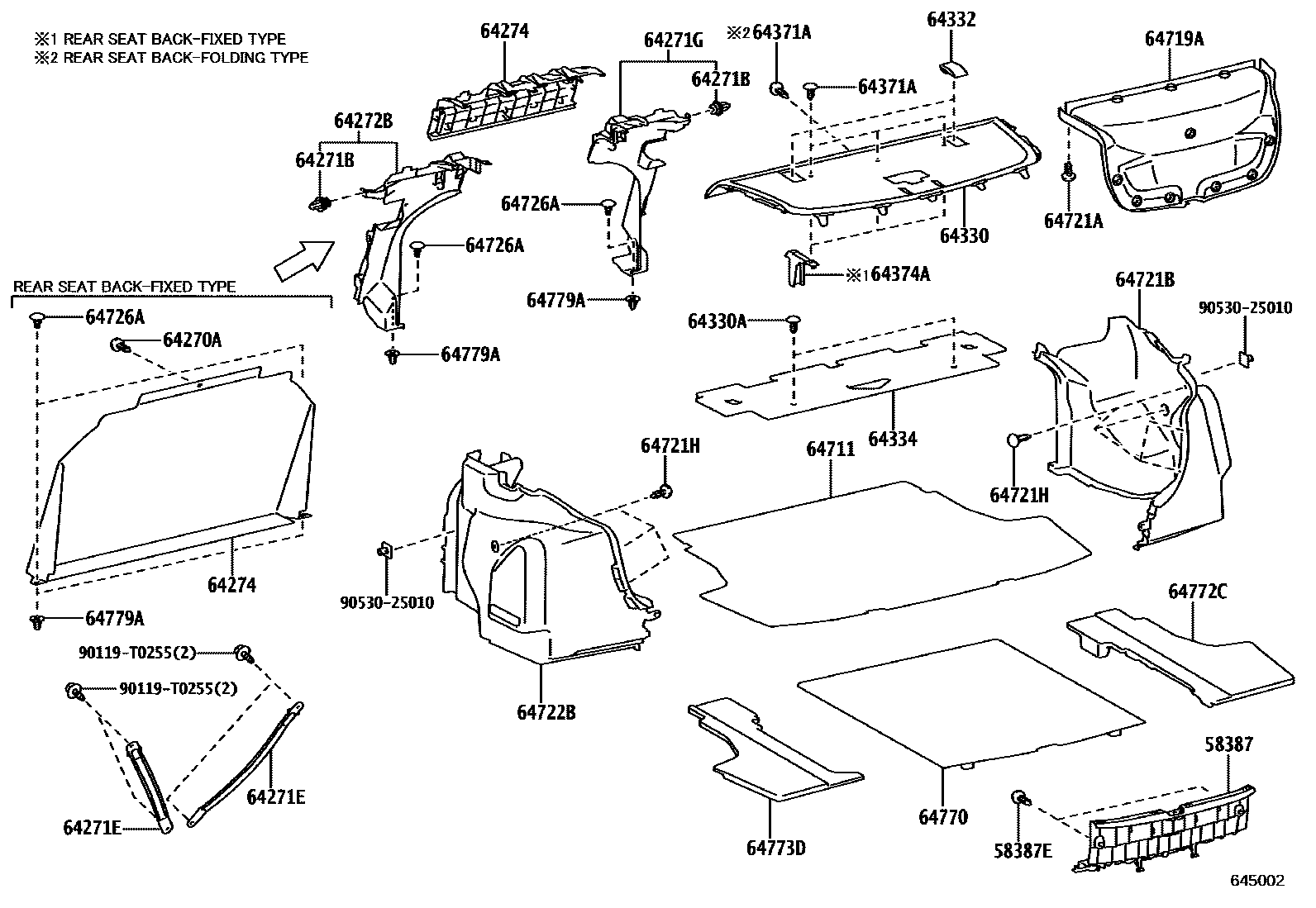

Toyota YARIS EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-0D270 |
| 64271B | Clip (for compartment partition) | 90467-T0021 |
| 64271E | compartment partition | 64241-0D060 |
| 64271G | Right compartment partition | 64271-0D060 |
| 64272B | Left compartment partition | 64272-0D050 |
| 64274 | Car Partition Decorative Mat No. 1 | 64275-0D070 |
| 64334 | Glove box decorative panel muffler pad | 64334-0D300 · 64334-0D310 |
| 64374A | Glove box decorative panel bracket | 64374-0D030 |
| 64726A | Luggage rear trim clip | 64726-0D020 |
| 64770 | Spare tire cover assembly | 64770-0D310 · 64770-0D320 |
| 64772C | Spare tire cover liner | 64772-0D230 |
| 64773D | No. 2 spare tire cover | 64773-0D170 |
| 64779A | Spare tire cover stop | 64779-0D050 |
