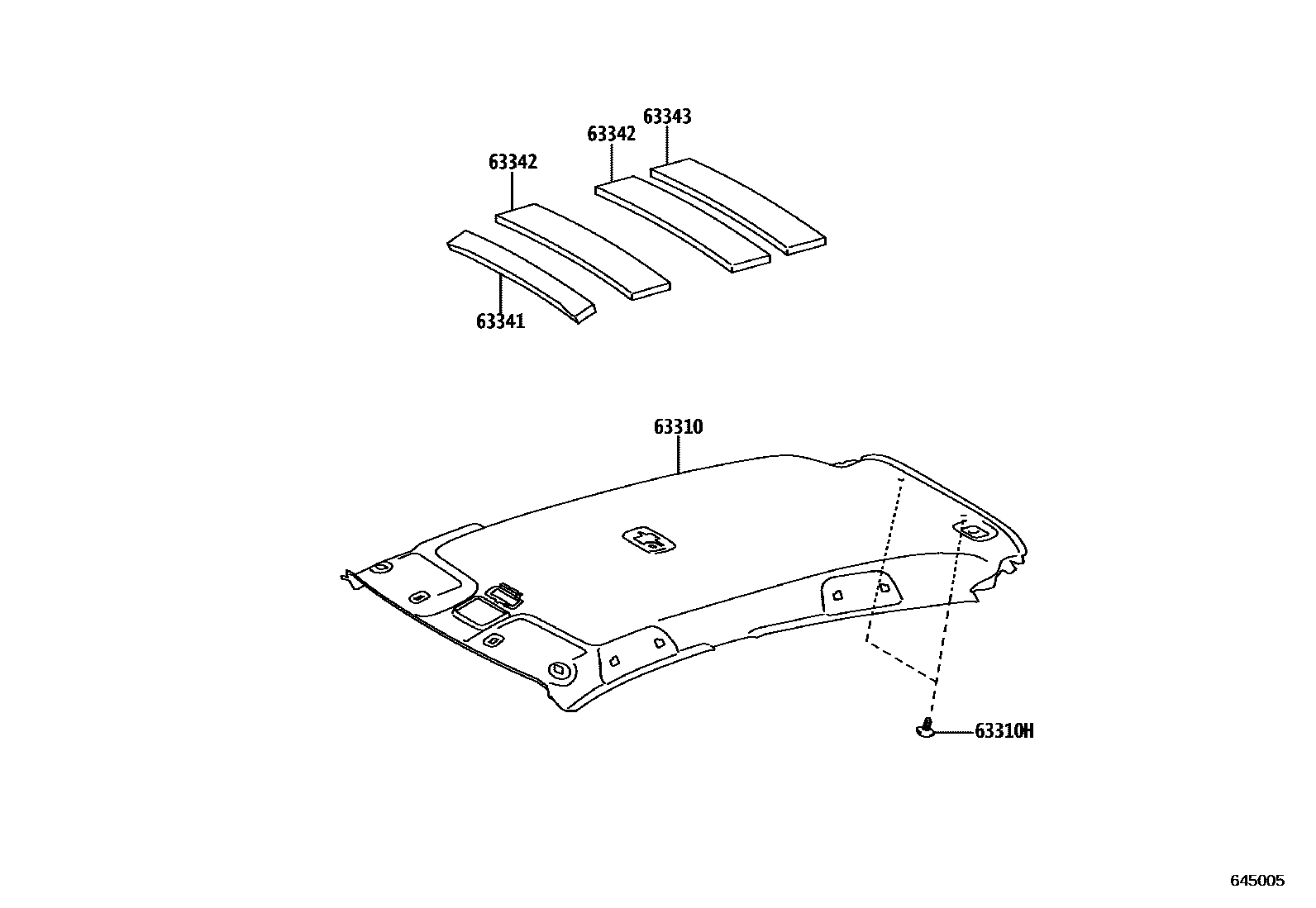

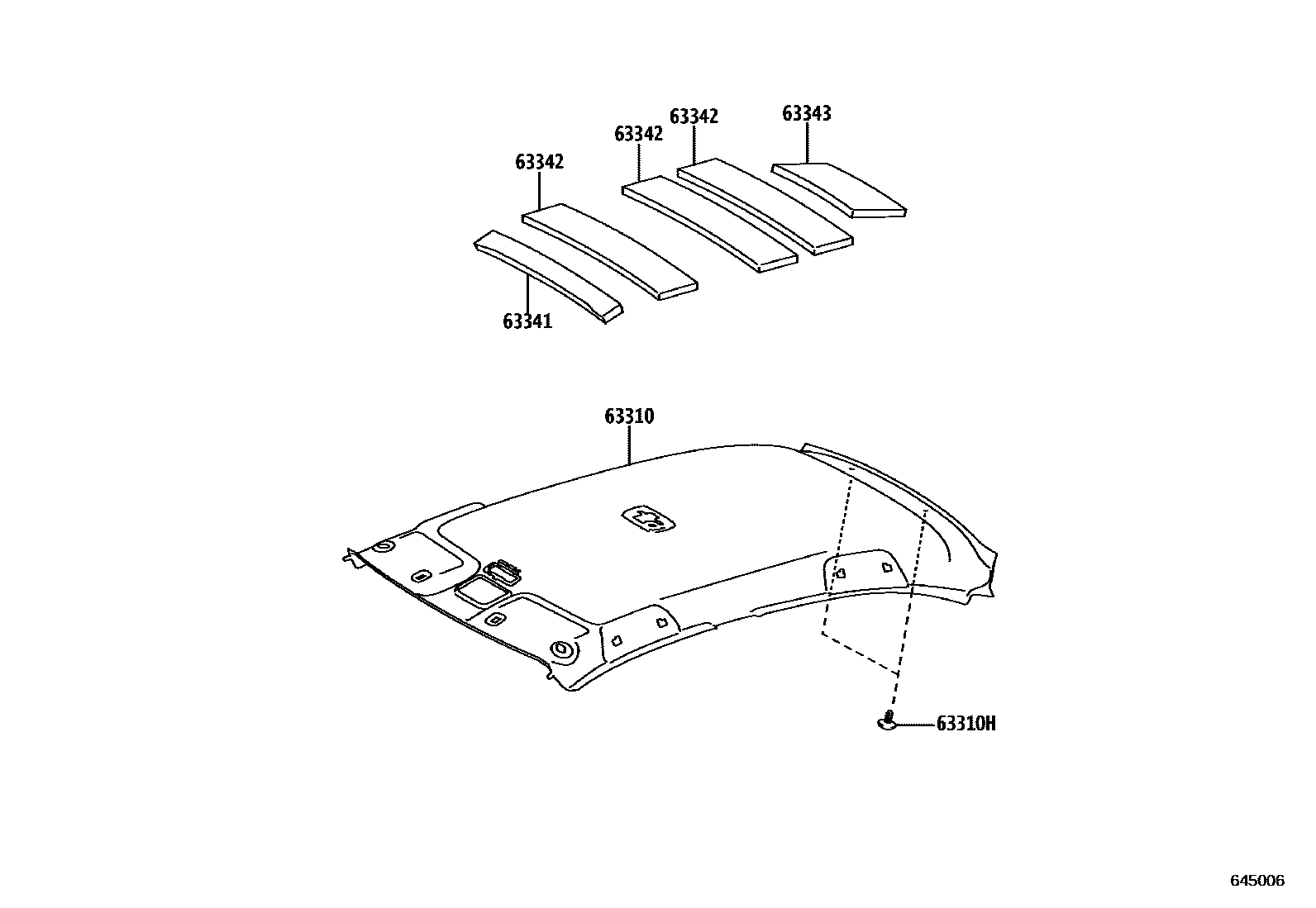

Toyota YARIS 车顶内衬和消声垫 — Figure 6402
Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-0D200 |
| 63342 | No. 2 roof muffler pad | 63343-0D490 |
| 63343 | No. 3 roof muffler pad | 63343-0D490 · 63343-0D540 |
