Toyota YARIS 侧梁 — Figure 6101

Toyota YARIS EPC diagram 6101, 侧梁, with 6 images and 59 PNC and OE references.

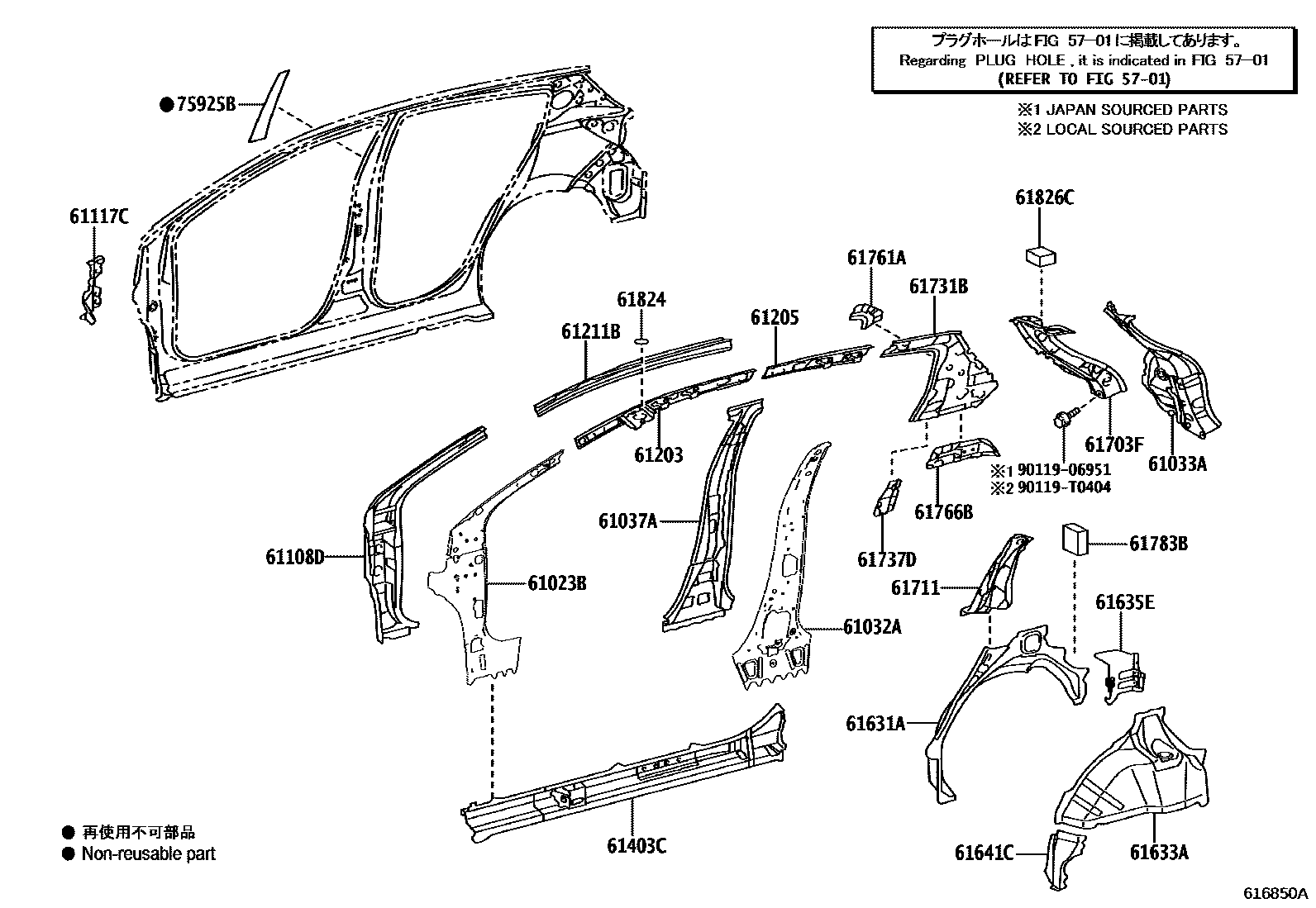

Toyota YARIS 侧梁 EPC diagram — 616850A
侧梁 — 616850A (202012 – 999999)

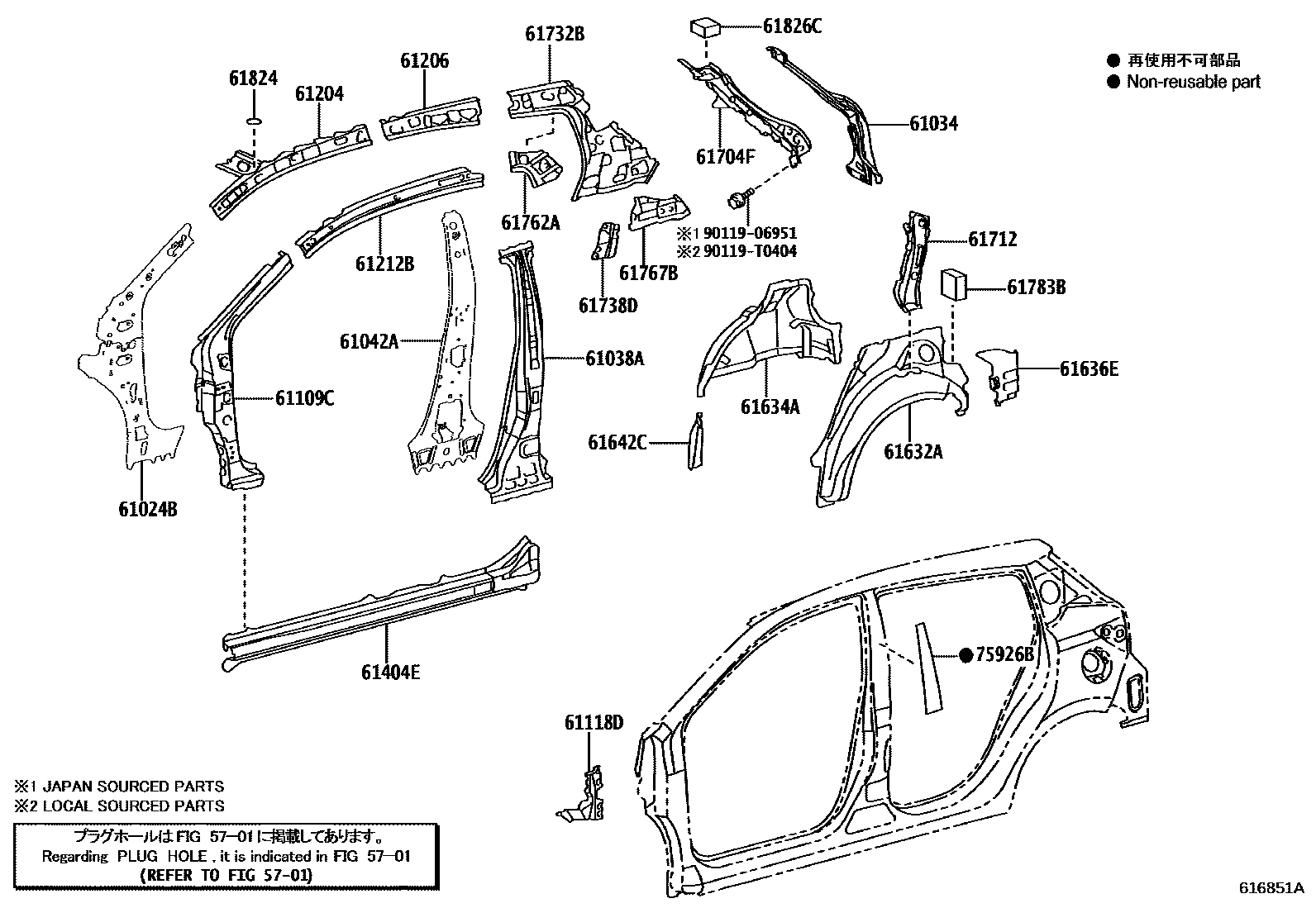

Toyota YARIS 侧梁 EPC diagram — 616851A
侧梁 — 616851A (202012 – 999999)

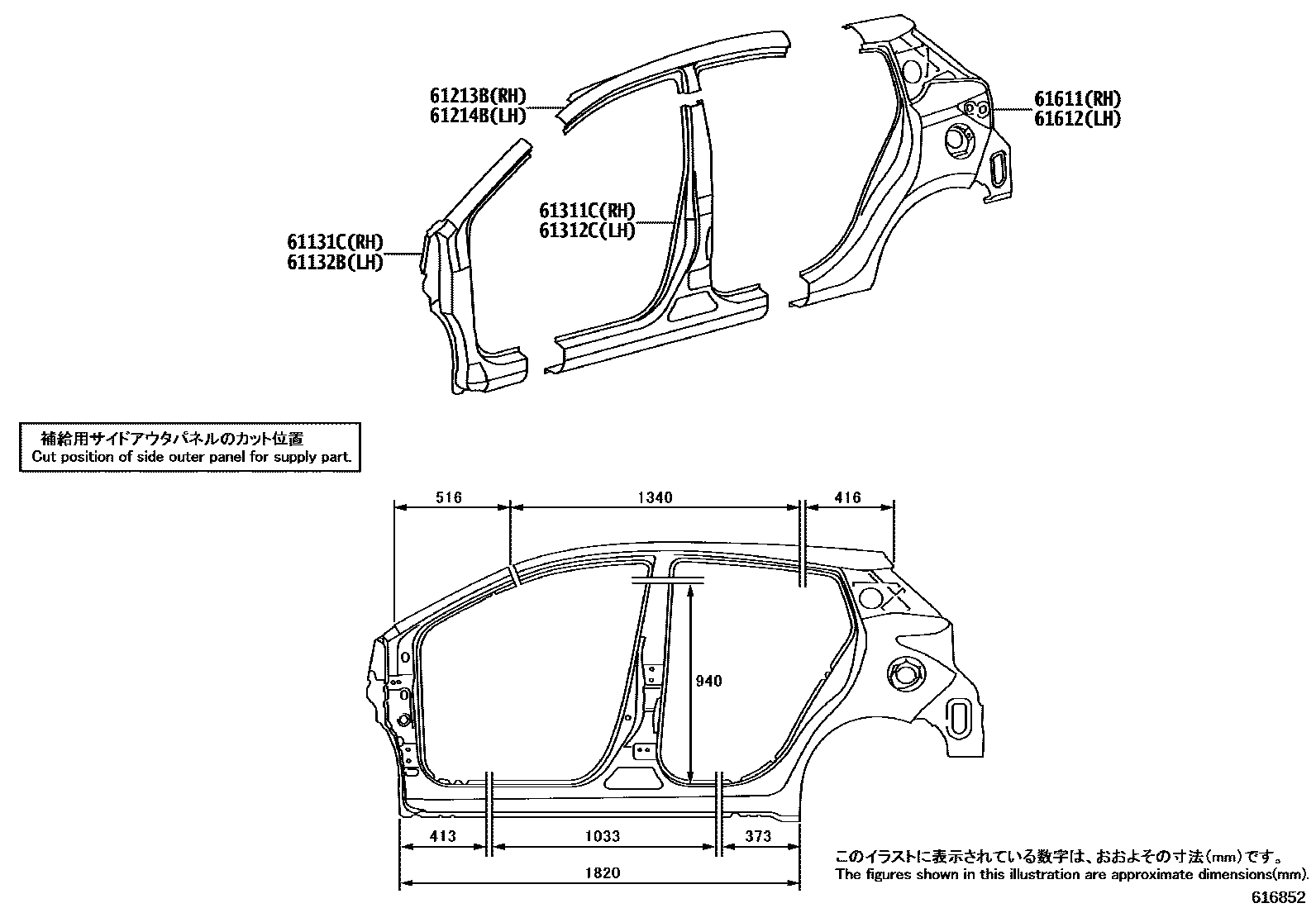

Toyota YARIS 侧梁 EPC diagram — 616852
侧梁 — 616852 (202012 – 999999)

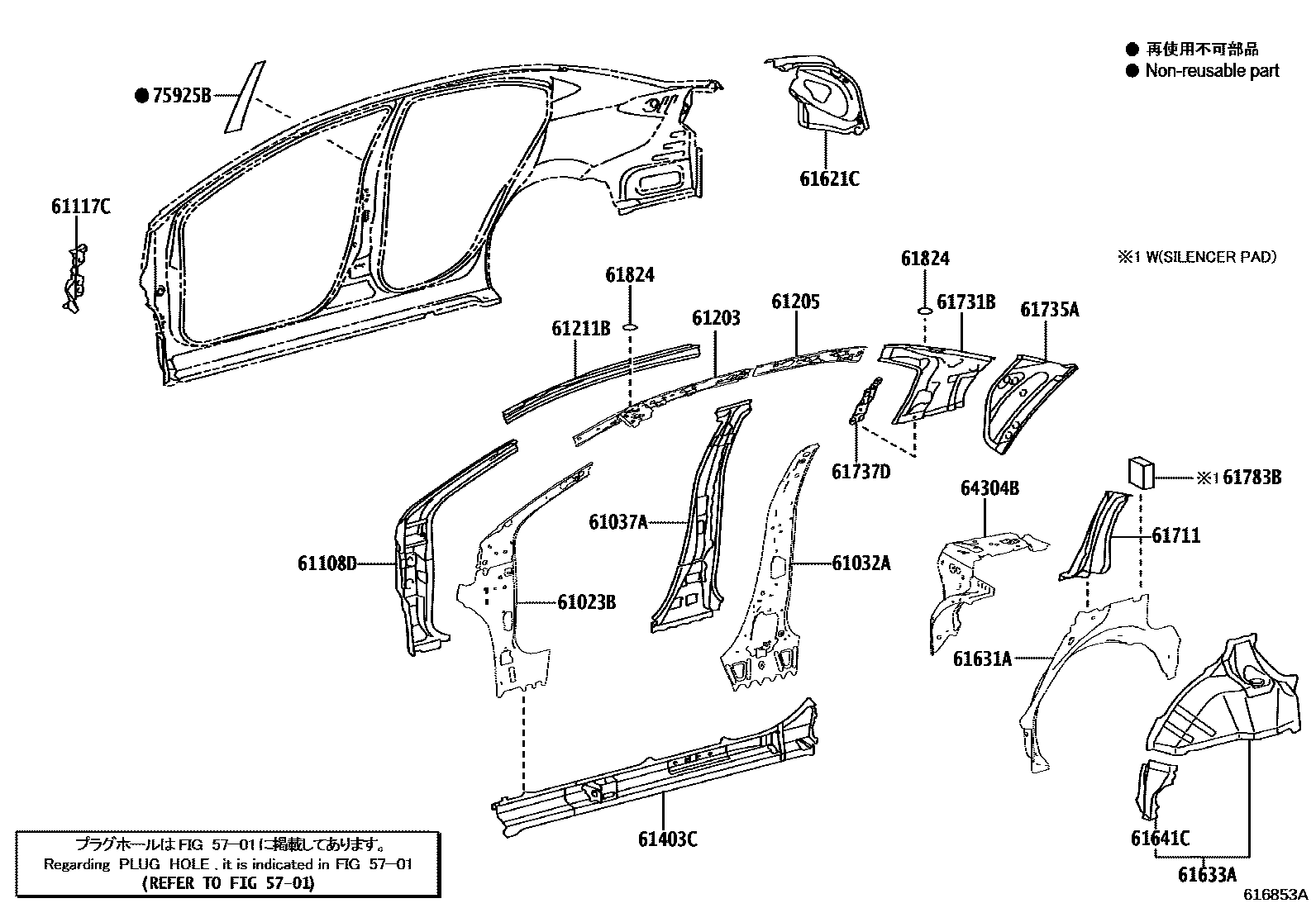

Toyota YARIS 侧梁 EPC diagram — 616853A
侧梁 — 616853A (202012 – 999999)

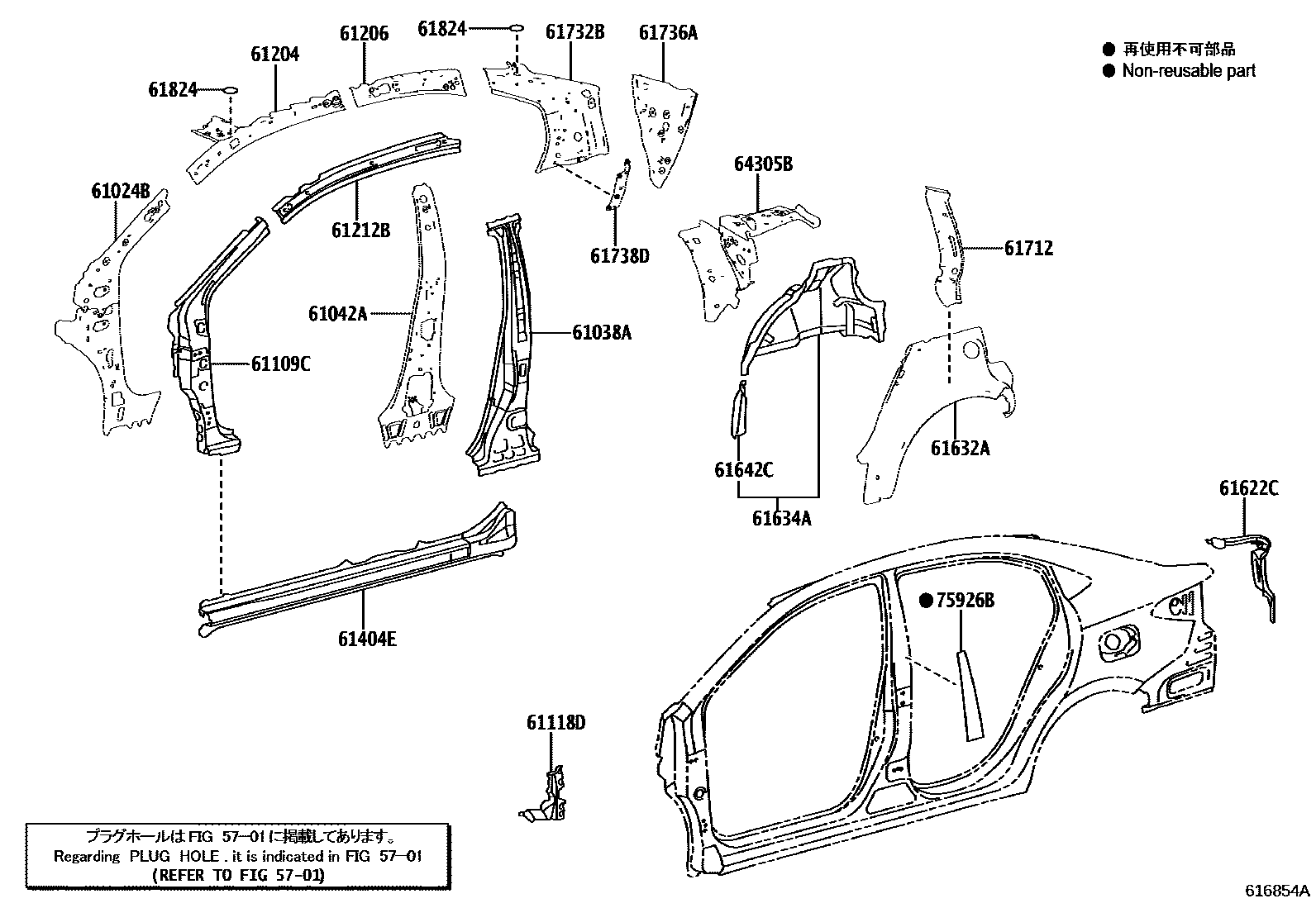

Toyota YARIS 侧梁 EPC diagram — 616854A
侧梁 — 616854A (202012 – 999999)

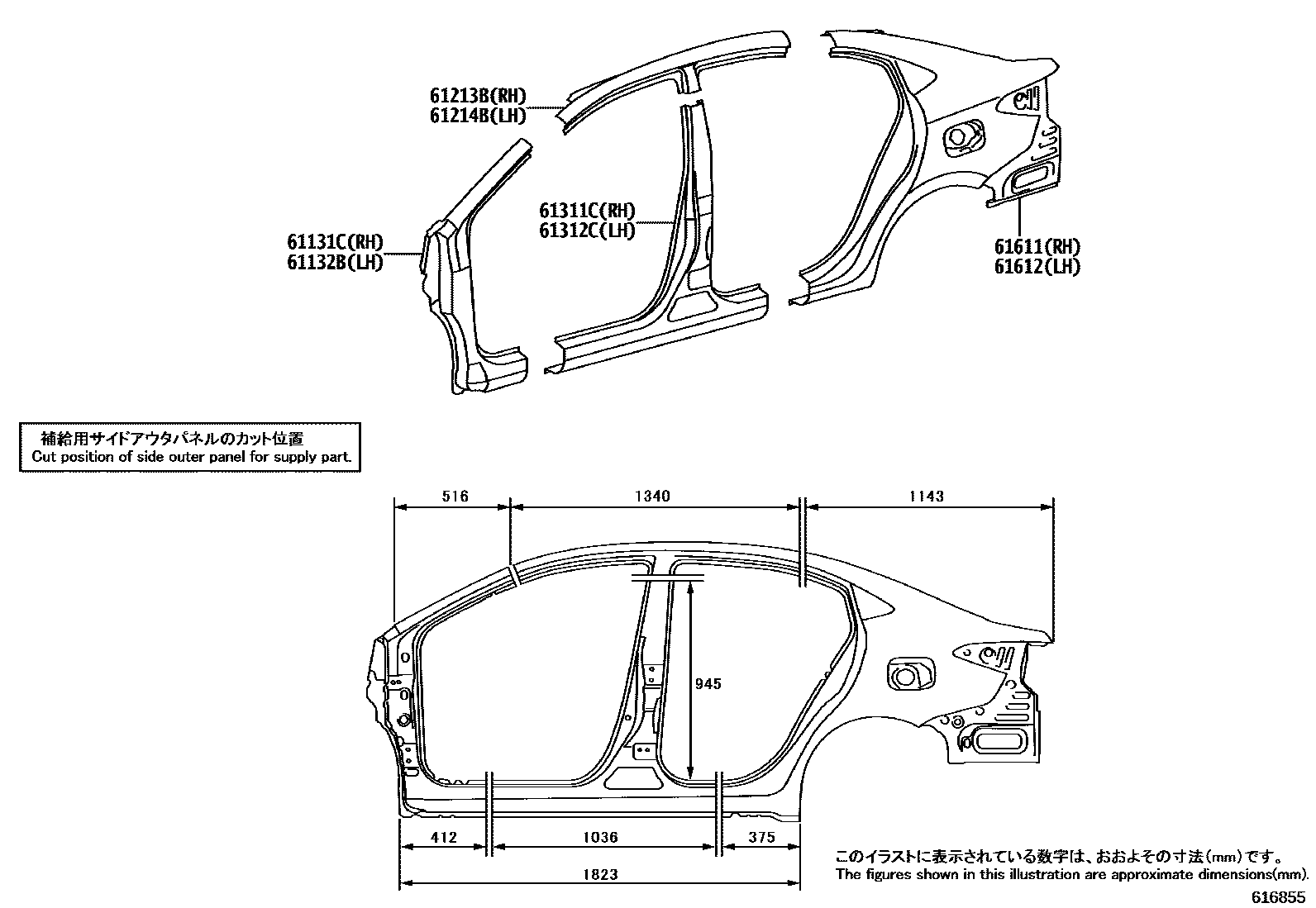

Toyota YARIS 侧梁 EPC diagram — 616855
侧梁 — 616855 (202012 – 999999)

PNC and OE references

PNCPart nameOE numbers
61023BRight body inner front pillar sub-assembly61023-0D370
61024BLeft body inner front pillar sub-assembly61024-0D370
61032ANo. 1 right inner column sub-assembly61032-0D300
61033ARear door opening side reinforcement sub-assembly61033-0D210
61034Rear door opening left reinforcement sub-assembly61034-0D220
61037ARight body center pillar reinforcement sub-assembly61037-0D917
61038ALeft body center pillar reinforcement sub-assembly61038-0D916
61042ANo. 1 left inner column sub-assembly61042-0D300
61108DFront panel right lower reinforcement sub-assembly61108-0D240
61109CFront panel left lower reinforcement sub-assembly61109-0D240
61117CSide panel to right front quarter panel61117-0D030
61118DSide panel to left front quarter panel61118-0D020
61131CRight body outer front pillar61131-0D200
61132BLeft body outer front pillar61132-0D200
61203Roof right inner longitudinal beam sub-assembly61203-0D030
61204Roof left inner longitudinal beam sub-assembly61204-0D030
61205Right rear roof inner longitudinal beam sub-assembly61205-0D010 · 61205-0D070
61206Left rear roof inner longitudinal beam sub-assembly61206-0D010 · 61206-0D070
61211BRight rear roof outer longitudinal beam61211-0D260 · 61211-0D310
61212BLeft rear roof rail61212-0D250 · 61212-0D300
61213BNo. 2 longitudinal beam on the outer right side of the roof61213-0D100 · 61213-0D190
61214BNo. 2 longitudinal beam on the left side of the roof61214-0D100 · 61214-0D190
61311CRight rear body front outer panel61311-0D130
61312CLeft rear body front outer panel61312-0D130 · 61312-0D140
61403CRight door outer sill reinforcement sub-assembly61403-0D370
61404ELeft door outer sill reinforcement sub-assembly61404-0D370
61611Right side hoarding61601-0D260 · 61601-0D450
61612left side panel61602-0D410 · 61602-0D470
61621CLuggage right opening slot61063-0D110
61622CLuggage trunk left opening slot61064-0D110
61631ARight wheel cover outer panel61631-K0010 · 61631-K0020
61632ALeft side wheel cover outer panel61632-K0010 · 61632-K0020
61633ARight wheel housing lining panel61605-0D050 · 61607-0D280
61634ALeft side wheel housing lining panel61606-0D080 · 61608-0D280
61635ERight wheel housing extension61635-0D060
61636ELeft side wheel housing extension61636-0D060
61641CRight front side wheel housing corner panel61641-0D070
61642CLeft front side wheel housing corner panel61642-0D070
61703FRight front side panel inner panel sub-assembly61703-0D160
61704FLeft front side panel inner panel sub-assembly61704-0D170
61711Roof right side outer panel61711-0D100 · 61711-K0030
61712Roof left outer panel61712-0D100 · 61712-K0030
61731BRoof right inner panel61731-0D170 · 61731-K0060
61732BRoof left inner panel61732-0D170 · 61732-K0060
61735ARight rear roof inner panel61735-K0020
61736ALeft rear roof inner panel61736-K0020
61737DRoof right inner reinforcement61737-0D040 · 61737-0D060
61738DRoof left inner reinforcement61738-0D040 · 61738-0D050
61761ASeat belt anchor upper reinforcement for No. 1 right-hand seat61761-0D010
61762ALeft No. 1 seat belt anchor upper reinforcement61762-0D080
61766BRight seat belt anchor to roof inner reinforcement61766-0D080
61767BLeft-hand seat belt anchor to roof inner reinforcement61767-0D090
61783BNo. 1 rear fender outer panel pad61783-0D010 · 61783-0D080 · 61783-0D100
61824Noise Control Panel No. 161824-0D020
61826CNo. 3 silencer panel gasket61826-0D030
64304BGlove box bracket right reinforcement sub-assembly64304-0D250
64305BGlove box bracket left reinforcement sub-assembly64305-0D250
75925BNo. 3 right side light-blocking film75925-0D090
75926BNo. 3 left shading film75926-0D090
