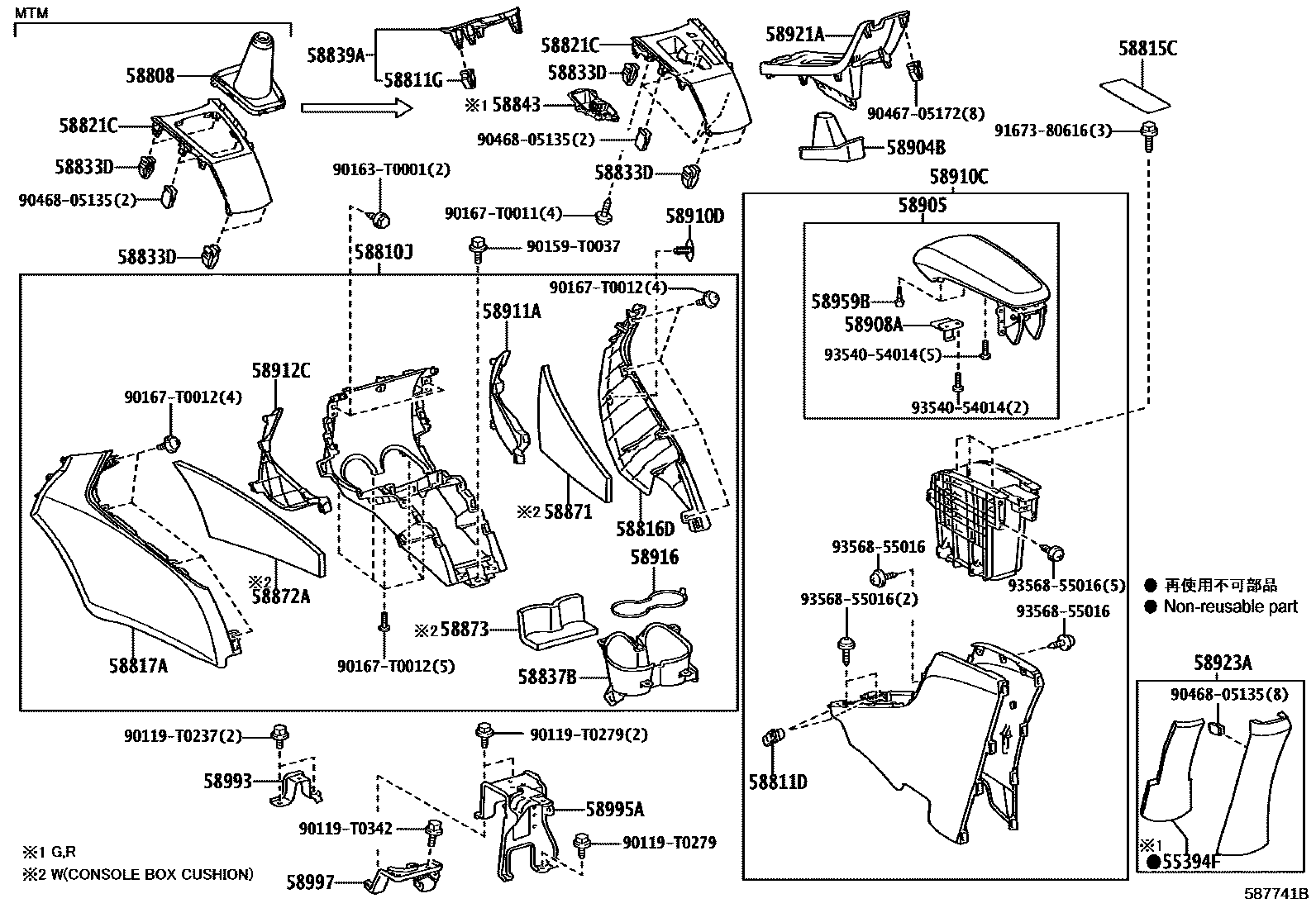

Toyota YARIS 中央扶手箱和支架 — Figure 5806
Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55394F | Under-dash cushion | 55394-0D320 |
| 58811D | Clip (for armrest box) | 90467-10203 |
| 58811G | Clip (armrest box) | 90467-05172 |
| 58815C | Armrest box felt pad | 58815-0D310 |
| 58821C | Armrest box upper panel | 58821-0D560 · 58821-0D570 · 58821-0D580 |
| 58833D | Clip (for armrest box cover) | 90467-05172 |
| 58843 | shift hole frame | 58843-0D480 · 58843-0D490 |
| 58871 | Armrest box cushion | 58871-0D100 |
| 58872A | Armrest Box No. 2 Cushion Pad | 58872-0D050 |
| 58873 | Armrest Box No. 3 Cushion Pad | 58873-0D020 |
| 58921A | Rear armrest box upper panel | 58921-0D030 |
| 58959B | Armrest box cover cushion | 90541-03078 |
| 58993 | Armrest box rear mounting bracket | 58993-0D010 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-0D150 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-0D070 |
