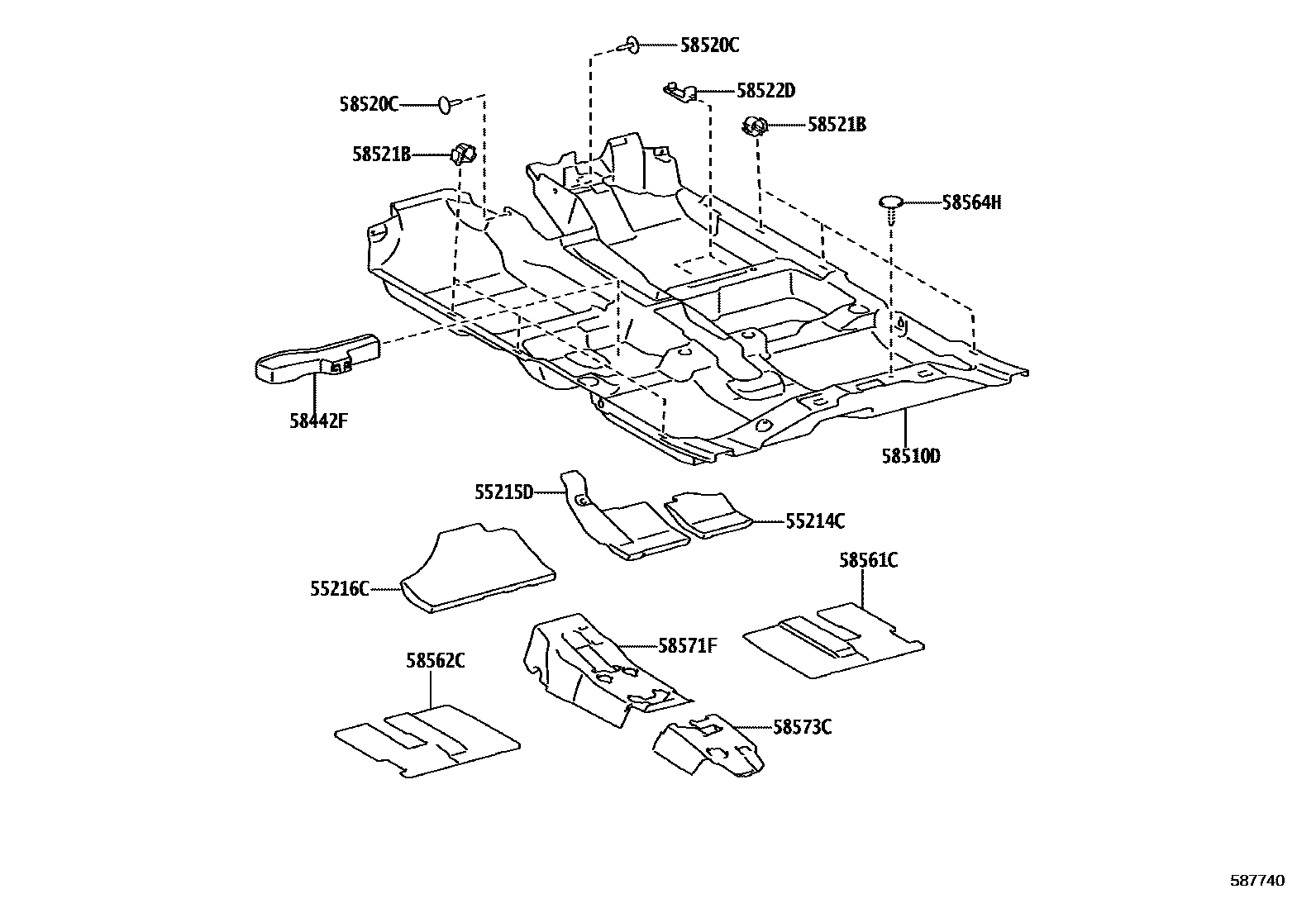

Toyota YARIS 地板垫和地毯 — Figure 5804
Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-0D200 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-0D210 |
| 55216C | No. 4 heat insulation pad for front wall | 55216-0D150 |
| 58442F | jack cover | 58442-0D120 |
| 58521B | carpet hook | 58521-52050 |
| 58522D | Carpet hook number 2 | 58522-52030 |
| 58561C | Front floor silencer No. 1 | 58561-0D240 |
| 58562C | Front floor silencer No. 2 | 58562-0D200 |
| 58571F | Front floor pad | 58571-0D150 |
| 58573C | Front floor center pad | 58573-0D030 |
