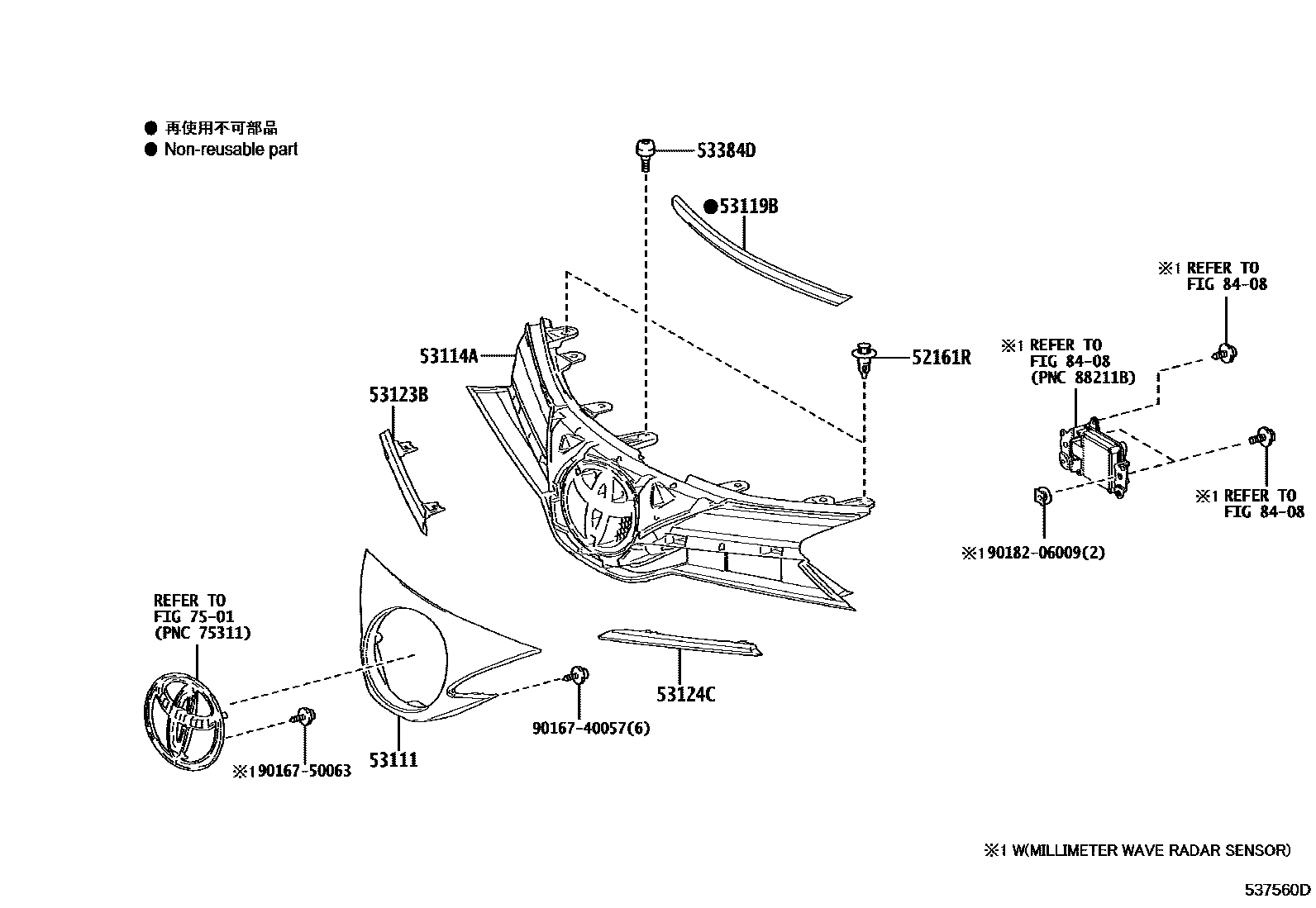

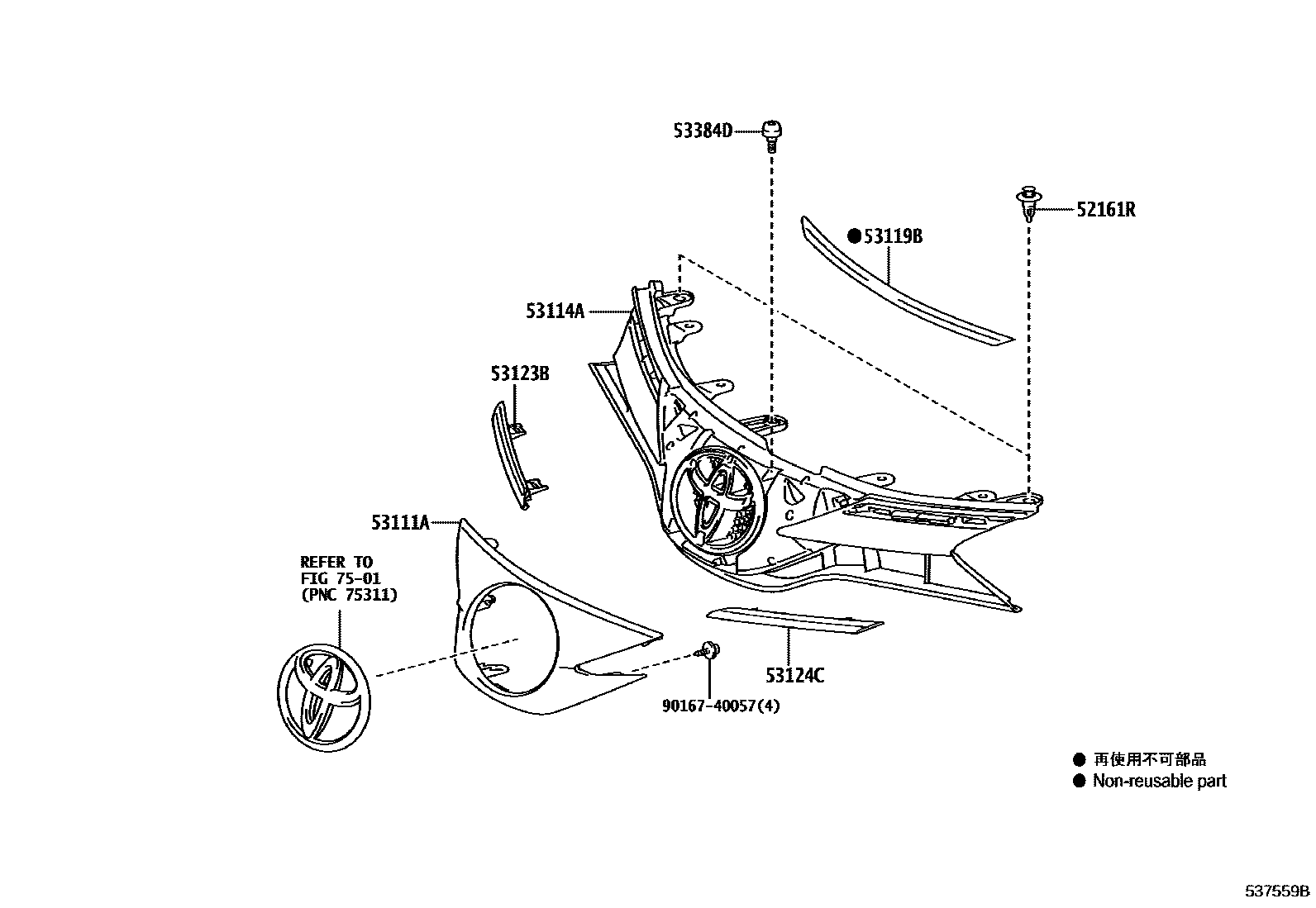

Toyota YARIS radiator grille — Figure 5301
Toyota YARIS EPC diagram 5301, radiator grille, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-0K040 |
| 53111 | radiator grille | 53111-YP906 |
| 53111A | Radiator grille outside | 53111-0D880 · 53111-0D913 |
| 53114A | inner radiator grille | 53114-0D020 · 53114-0D030 · 53114-YP120 · 53114-YP130 |
| 53119B | Radiator grille protector | 53119-0D010 · 53119-0D020 |
| 53123B | Protective strip on the right side of the radiator grille | 53123-0D140 · 53123-0D260 · 53123-0D310 · 53123-YP240 |
| 53124C | Radiator grille upper left protective strip | 53124-0D130 · 53124-0D380 · 53124-0D430 · 53124-YP240 |
| 53384D | Engine cover center cushion | 53119-12150 |
