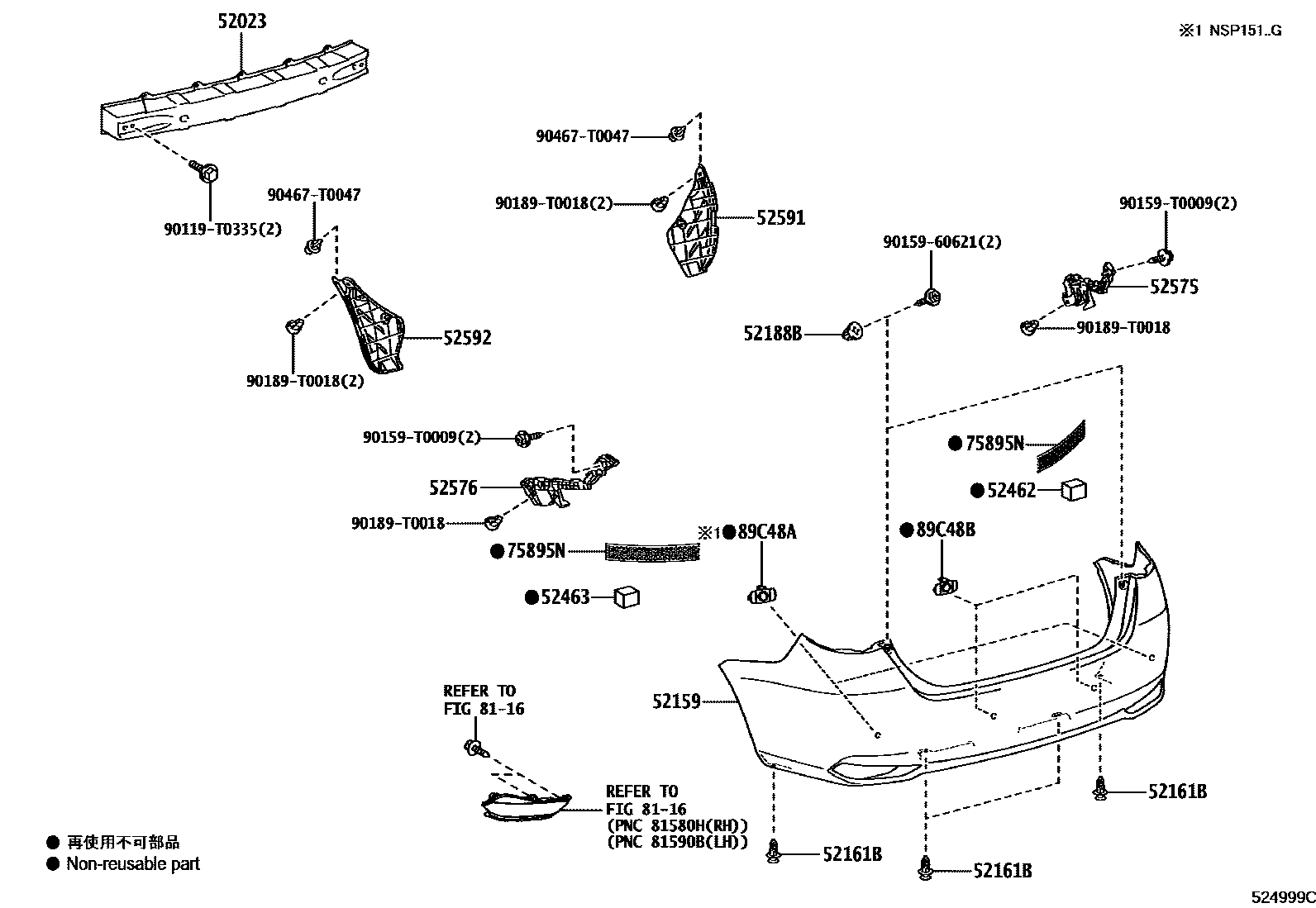

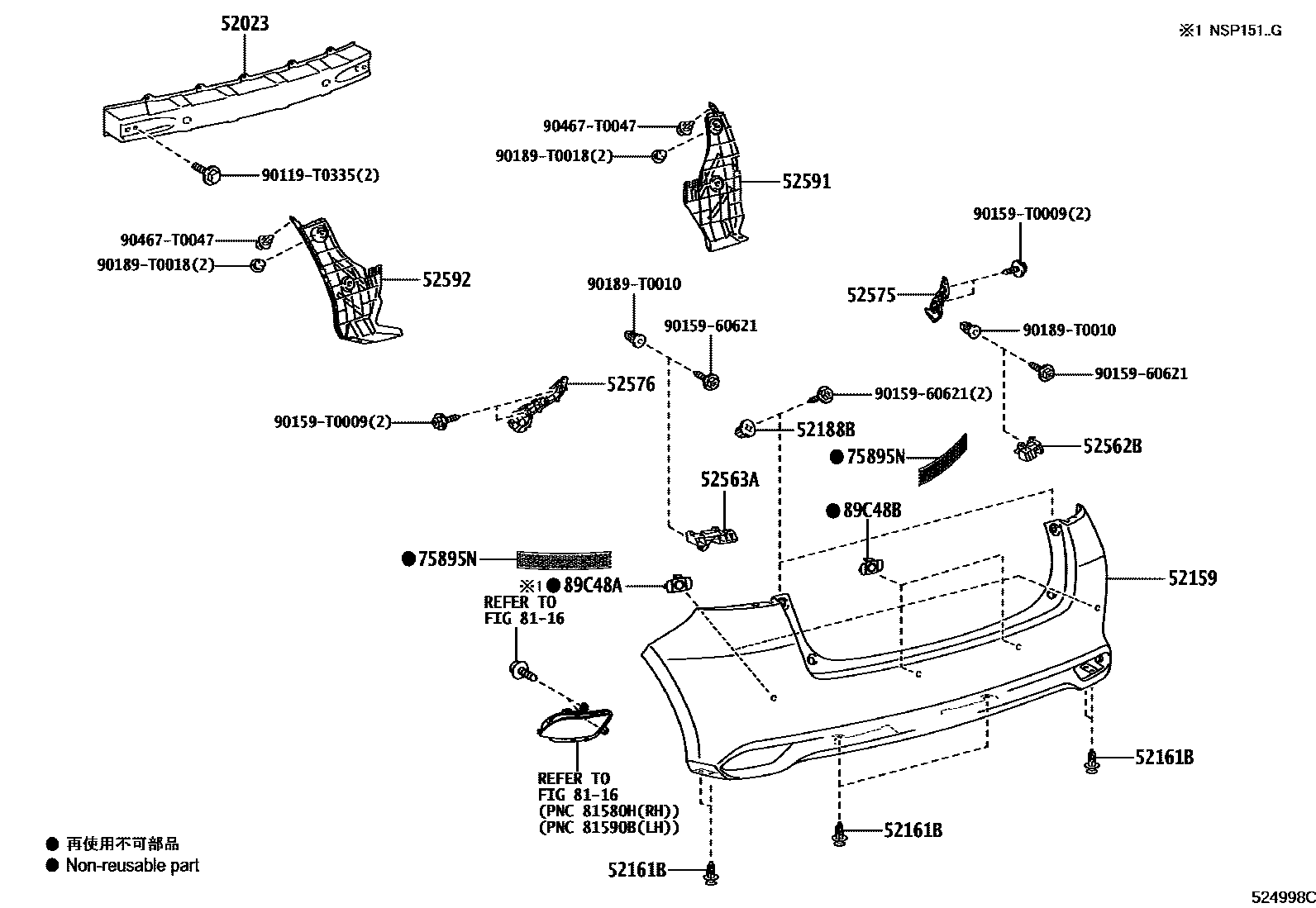

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0D190 |
| 52159 | rear bumper cover | 52159-0U964 · 52159-0U965 · 52159-0U969 · 52159-0U972 |
| 52161B | Rear bumper insert | 52161-0K040 |
| 52188B | Rear bumper installation spacer | 52188-33040 |
| 52462 | Rear bumper right side lining | 52462-0D020 |
| 52463 | Rear bumper left lining | 52462-0D020 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0D170 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0D070 |
| 52575 | Rear bumper right side fixing bracket | 52575-0D340 · 52575-0D400 |
| 52576 | Rear bumper left side fixing bracket | 52576-0D330 · 52576-0D390 |
| 52591 | Rear bumper right seal | 52591-0D400 · 52591-0D460 |
| 52592 | Rear bumper left seal | 52592-0D400 · 52592-0D460 |
| 75895N | No. 1 protective strip tape | 75895-53010 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-0D030 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-0D030 |
